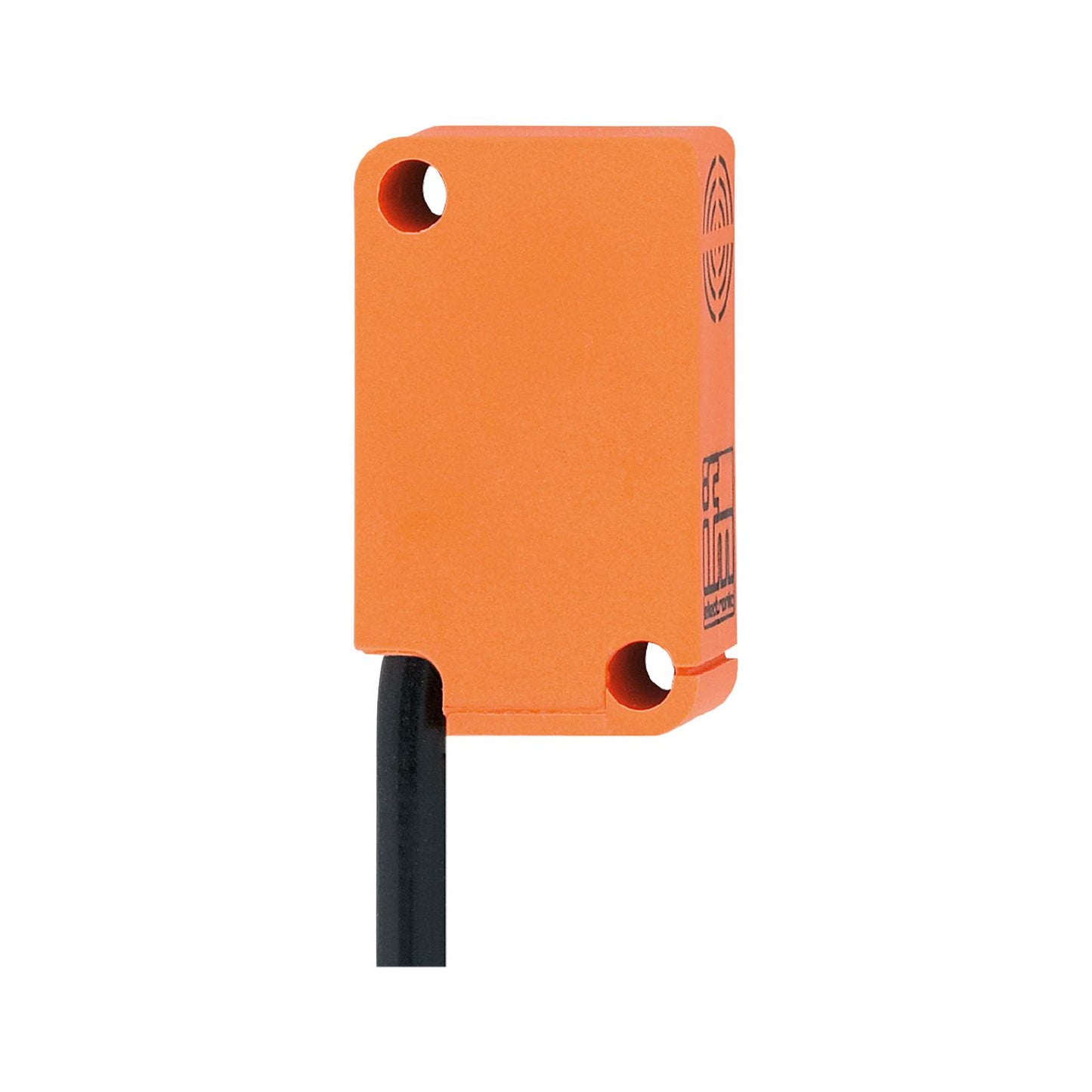

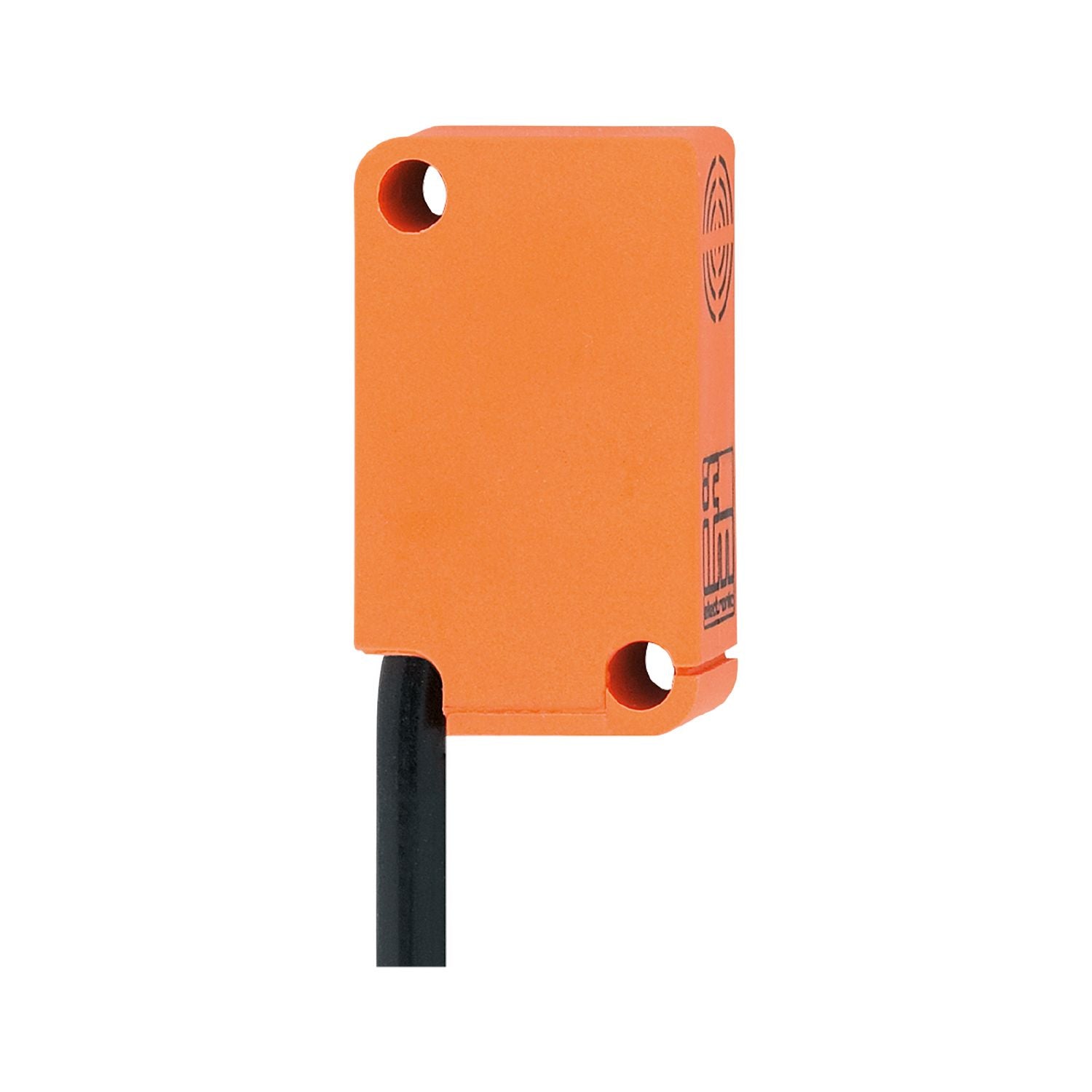

IFM IS5087 - Inductive sensor IS-3004-BPKG/0,15M

Particularly space-saving rectangular housing.
For use where space is restricted.
Very high switching frequency.
Wide operating temperature range.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally open
Sensing range [mm]	4
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Operating voltage [V]	10...30 DC
Current consumption [mA]	15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.24

Accuracy / deviations

Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	2965

Weight [g]	14.8
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	28 x 10 x 16
Materials	PBT
Tightening torque [Nm]	< 0.5;(with washer)

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.15 m, PVC; 3 x 0.14 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IS5087-01 — 17.04.2023 —
