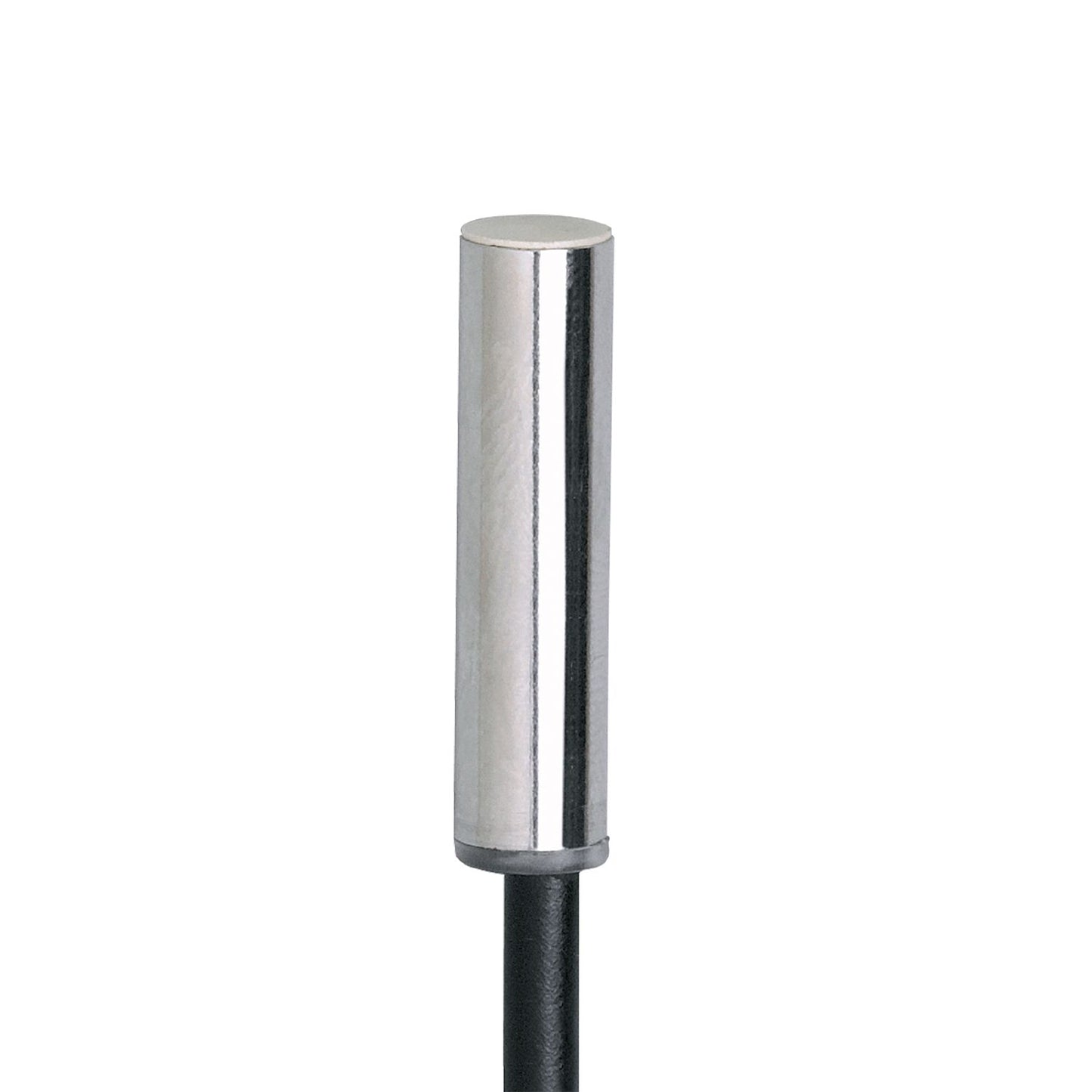

IFM IT5042 - Inductive sensor ITB3002BBPKG/V4A/2M

Particularly short housing.
For use where space is restricted.
Space-saving connection technology.
Very high switching frequency.
Robust stainless steel housing for use in harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	cylindrical
Dimensions [mm]	Ø 6.5 / L = 27

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	3408
UL approval	Ta -20...70 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	44.3
Housing	cylindrical
Mounting	flush mountable
Dimensions [mm]	Ø 6.5 / L = 27
Materials	stainless steel; LCP

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.14 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IT5042-00 — 13.04.2023 —
