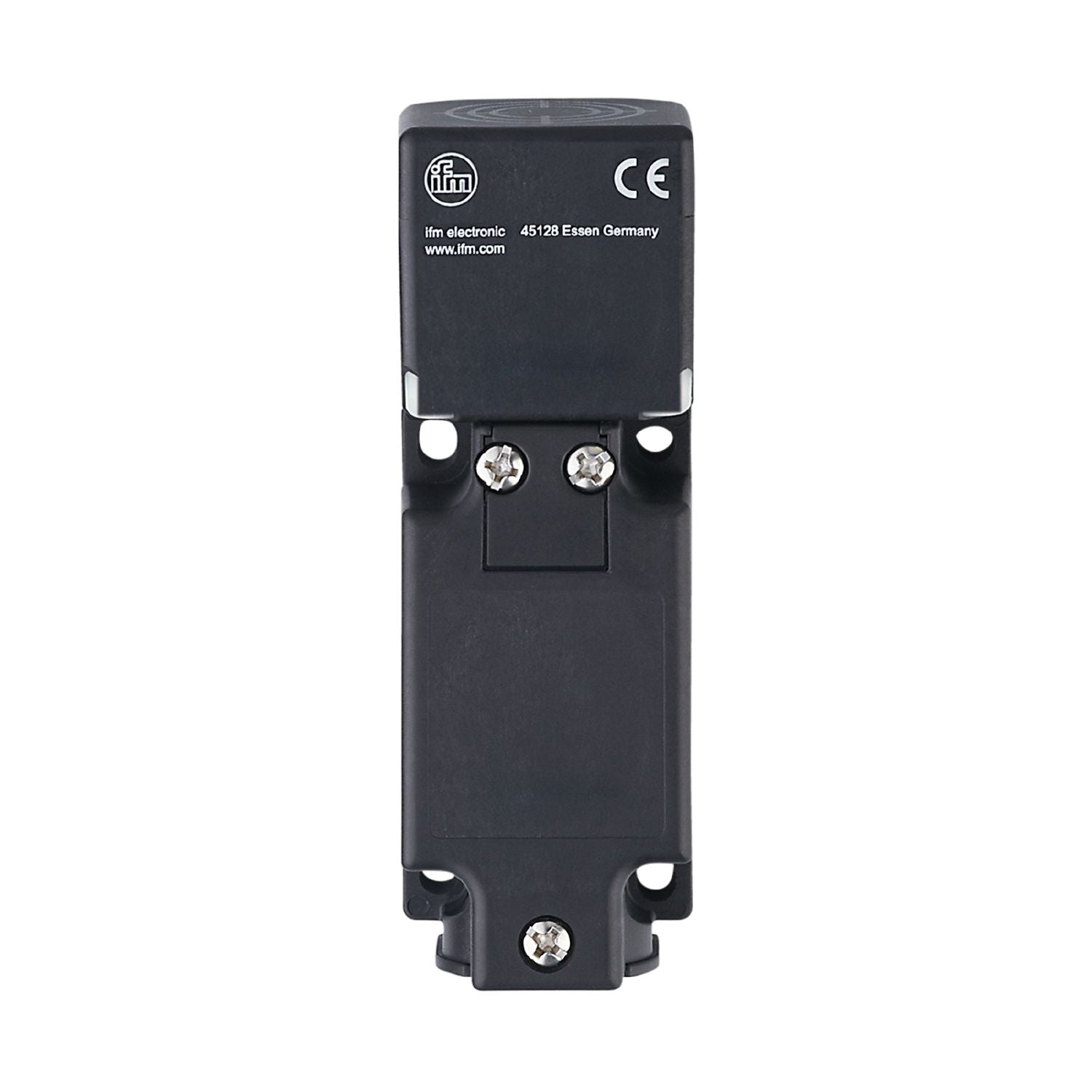

IFM IV0009 - Inductive sensor IVE2020-FBKA

Five positions of the sensing face selectable.
Long sensing range for high uptime.
Robust housing for use in harsh industrial environments.
For use in materials handling.
Output function normally open / normally closed programmable

Output function	normally open / normally closed;(selectable)
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 118

Operating voltage [V]	24...250 AC / 24...230 DC
Protection class	II
Reverse polarity protection	yes

Outputs

Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	5
Max. voltage drop switching output AC [V]	8
Minimum load current [mA]	5
Max. leakage current [mA]	1.5
Permanent current rating of switching output AC [mA]	500
Permanent current rating of switching output DC [mA]	500
Switching frequency AC [Hz]	30
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...10
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...85
Note on ambient temperature	for UL application: ...70 °C
Max. height above sea level [m]	2000
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 8 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 15 V EN 55011 Class A
Vibration resistance	EN 60068-2-6 Fc 10 g (10...2000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance	EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles
MTTF [years]	272.6
UL approval	Ta 0...70 °C Enclosure type Type 1 File number UL E174191
Notes	For use in NFPA 79 applications only

Weight [g]	268
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 118
Materials	PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (1.4305 / 303)

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Electrical connection

Required protection	≤ 3 A und ≥ 300 V AC/DC

Remarks	5 positions of the active zone possible Cable gland (E11270) to be ordered separately
Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²; Cable gland: M20 X 1.5
