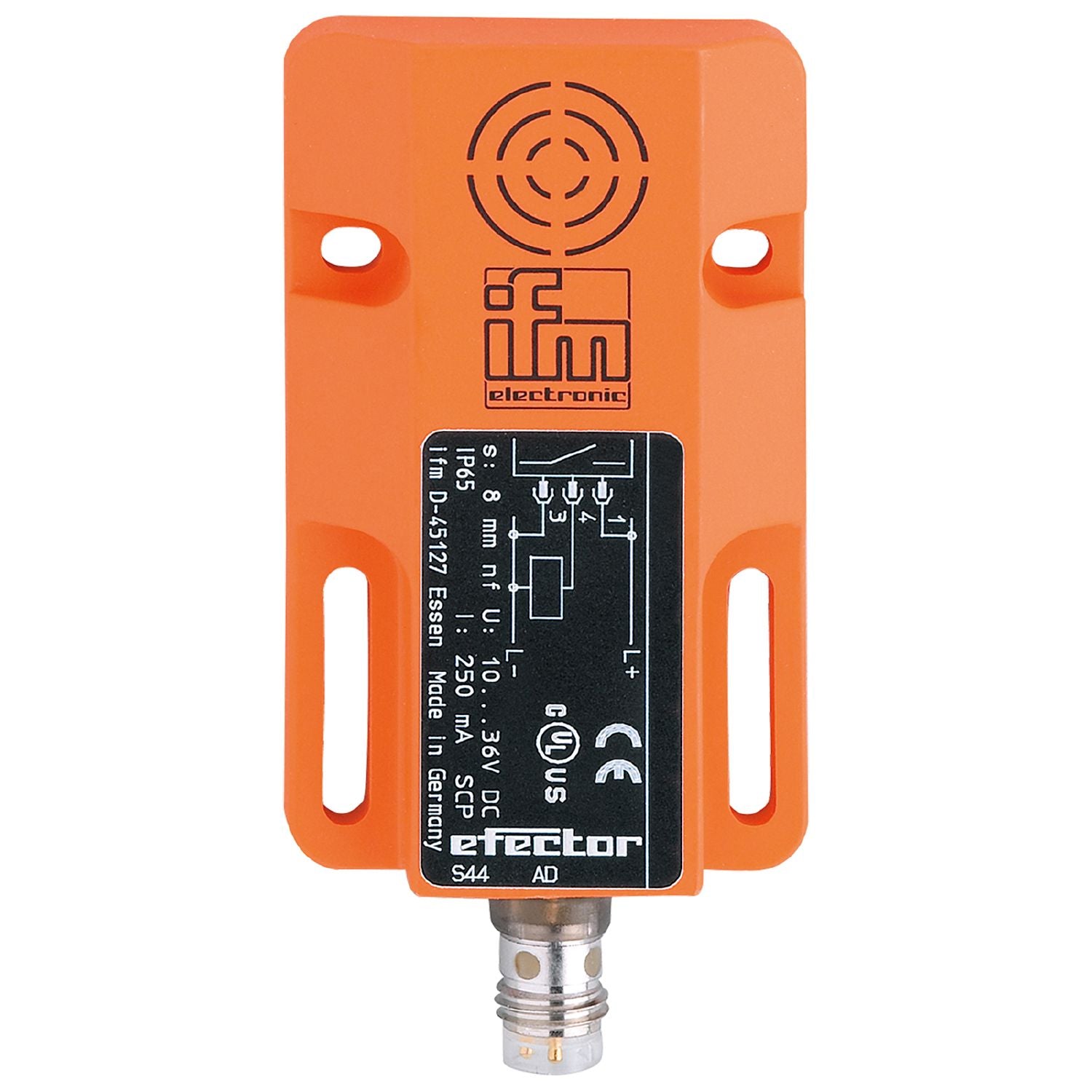

IFM IW5062 - Inductive sensor IW-3008-APKG/AS-610-TPO

Particularly flat rectangular design.
For use where space is restricted.
Space-saving M8 connector.
Long sensing range for high uptime.
Very high switching frequency

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	8
Housing	rectangular
Dimensions [mm]	60 x 36 x 10

Operating voltage [V]	10...36 DC
Current consumption [mA]	5;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5;(at I (load) < 50 mA and 0...50 °C: < 1,5)
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %
Operating distance [mm]	0...6.5

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65;(with ifm socket duly screwed on: IP 67)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1893

Weight [g]	24.9
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	60 x 36 x 10
Materials	PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IW5062-02 — 13.04.2023 —
