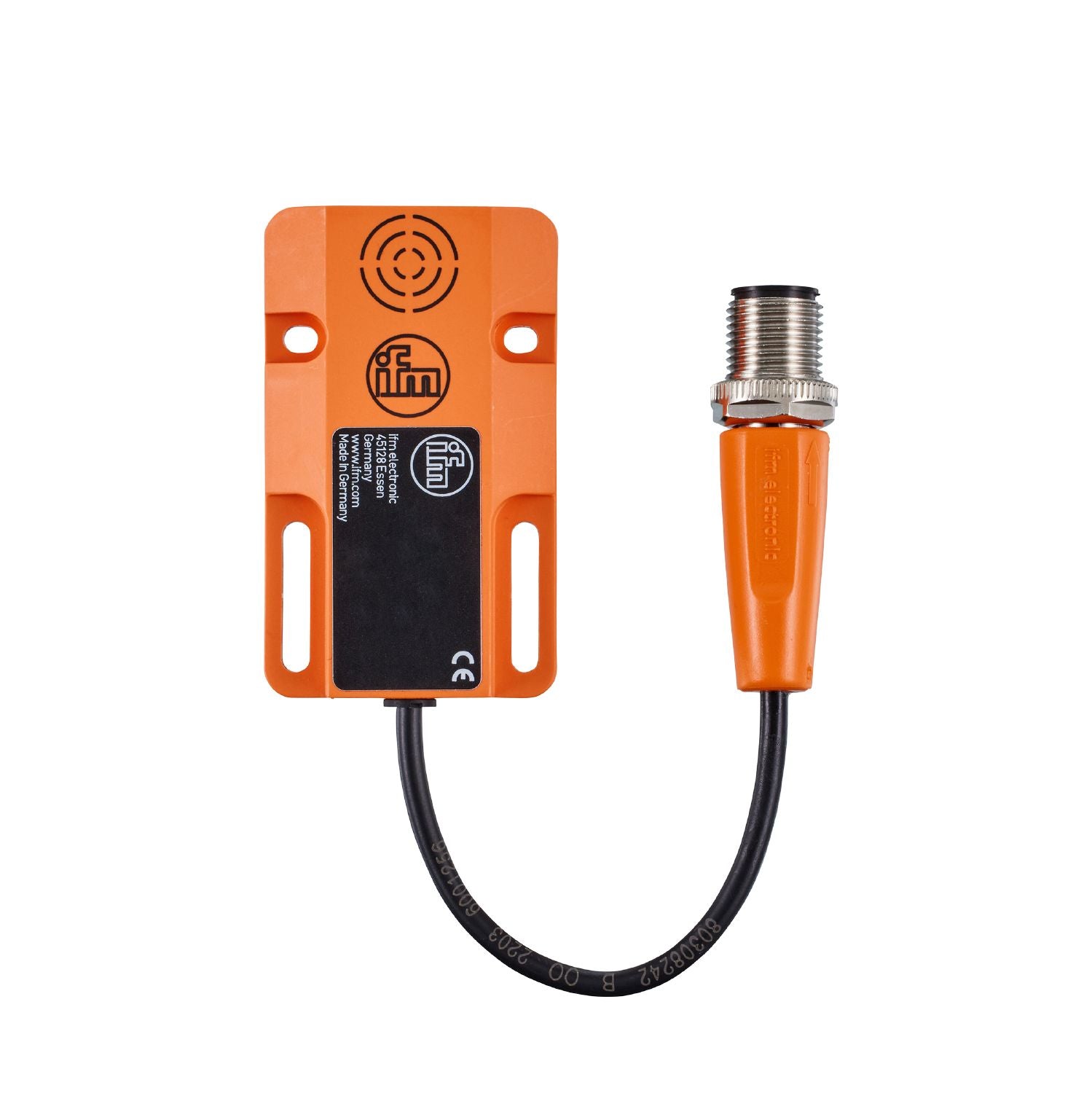

IFM IW5084 - Inductive sensor IW-3008-BPKG/0,2M/US

Particularly flat rectangular design.
For use where space is restricted.
Space-saving connection technology.
Long sensing range for high uptime.
High switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	8
Housing	rectangular
Dimensions [mm]	60 x 36 x 10

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %
Operating distance [mm]	0...6.5

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

automotive area noise emission and noise interference: ECE R10 E1 type approval radiation according to ECE R10_ESA_1m >10 db limits, depending on distance noise immunity according to DIN ISO 11452-2 30 V/m bulk current injection (BCI) acc. DIN ISO 11452-4 60 mA conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) pulse 1 2a 2b 3a 3b 4 severity level III III III III III III failure criterion C B C A A C EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B

Weight [g]	37.55
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	60 x 36 x 10
Materials	PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.2 m, PVC; 3 x 0.14 mm²
Connection	Connector: 1 x M12; coding: A
