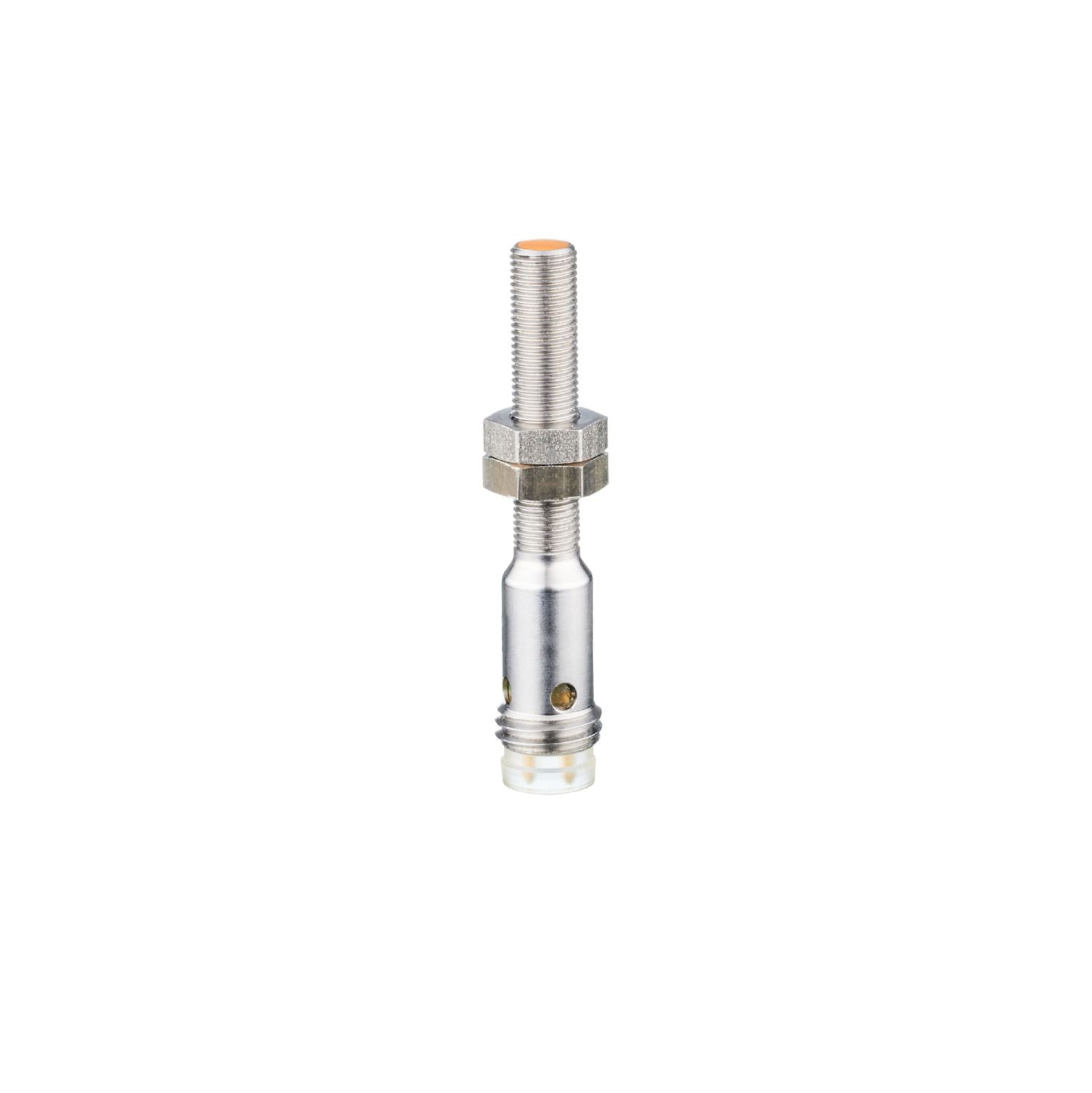

IFM IY5036 - Inductive sensor IYB30,8-BPKG/V2A/AS-514 RT

For use where space is restricted.
With space-saving M8 connector.
Clearly visible indication of the switching status.
Robust stainless steel housing for use in harsh industrial environments.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	0.8
Housing	threaded type
Dimensions [mm]	M5 x 0.5 / L = 45

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	0.8
Real sensing range Sr [mm]	0.8 ± 10 %
Operating distance [mm]	0...0.65

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	1999
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	10.8
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M5 x 0.5 / L = 45
Thread designation	M5 x 0.5
Materials	stainless steel (1.4305 / 303); LED window: PA; sensing face: POM
Tightening torque [Nm]	2

Displays / operating elements

Display	switching status 4 x 90° LED, red

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A
