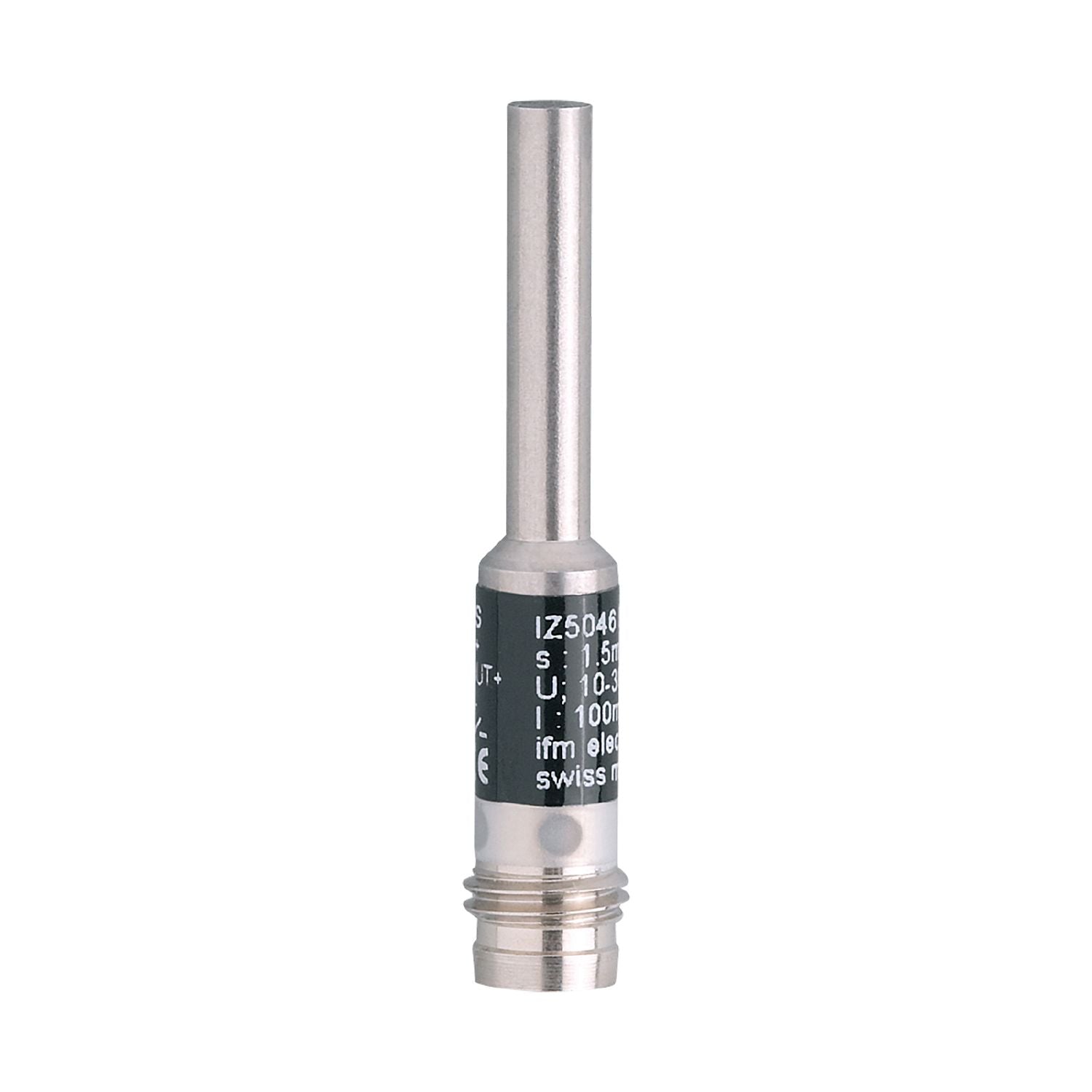

IFM IZ5046 - Inductive sensor IZB31,5-BPKG/AS-514-TPS

For use where space is restricted.
Space-saving M8 connector.
Clearly visible indication of the switching status.
Robust stainless steel housing for use in harsh industrial environments.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1.5
Housing	cylindrical
Dimensions [mm]	Ø 4 / L = 41

Operating voltage [V]	10...30 DC
Current consumption [mA]	10;(24 V)
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	3
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1800
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	1.5
Real sensing range Sr [mm]	1.5 ± 10 %
Operating distance [mm]	0...1.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	835
UL approval	Ta 0...40 °C power supply Class 2 File number UL E174191

Weight [g]	19
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 4 / L = 41
Materials	housing: stainless steel; sensing face: POM

Displays / operating elements

Display	switching status 4 x 90° LED, red

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

Installation	If Sr varies by < 10 % the following free space must be maintained ferromagnetic materials X > 1.5 mm other metals X > 3.0 mm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IZ5046-00 — 04.02.2009 —
