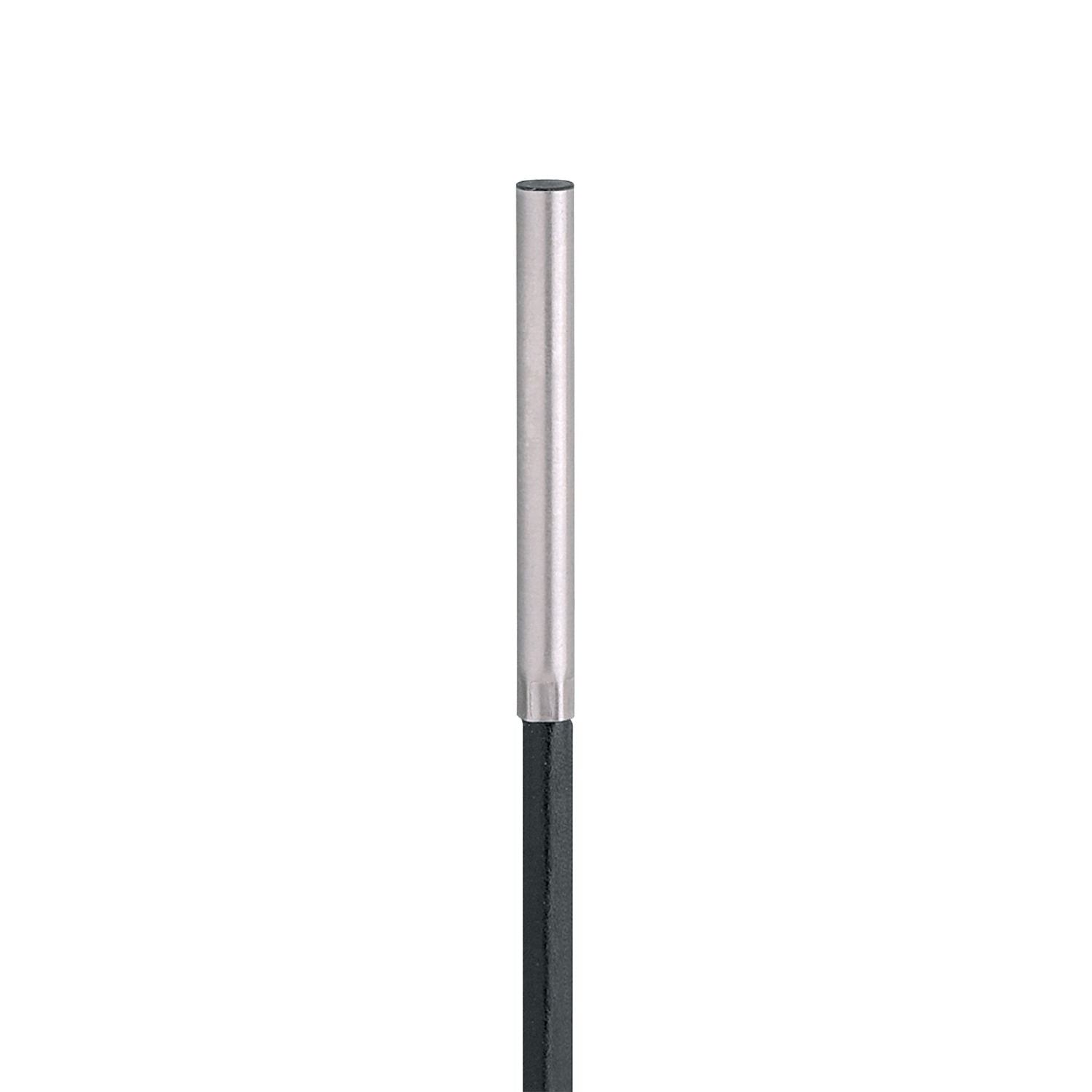

IFM IZ5047 - Inductive sensor IZB31,5-BPKG/2M PVC

Particularly short housing with only 4 mm diameter.
For use where space is restricted.
Space-saving connection technology.
Robust stainless steel housing for use in harsh industrial environments.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1.5
Housing	cylindrical
Dimensions [mm]	Ø 4 / L = 27

Operating voltage [V]	10...30 DC
Current consumption [mA]	10;(24 V)
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	3
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1800
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	1.5
Real sensing range Sr [mm]	1.5 ± 10 %
Operating distance [mm]	0...1.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	835
UL approval	Ta 0...40 °C power supply Class 2 File number UL E174191

Weight [g]	54.5
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 4 / L = 27
Materials	housing: stainless steel; sensing face: POM

Displays / operating elements

Display	switching status 4 x 90° LED, red

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²

Diagrams and graphs

Installation	If Sr varies by < 10 % the following free space must be maintained ferromagnetic materials X > 1.5 mm other metals X > 3.0 mm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IZ5047-00 — 06.03.2003 —
