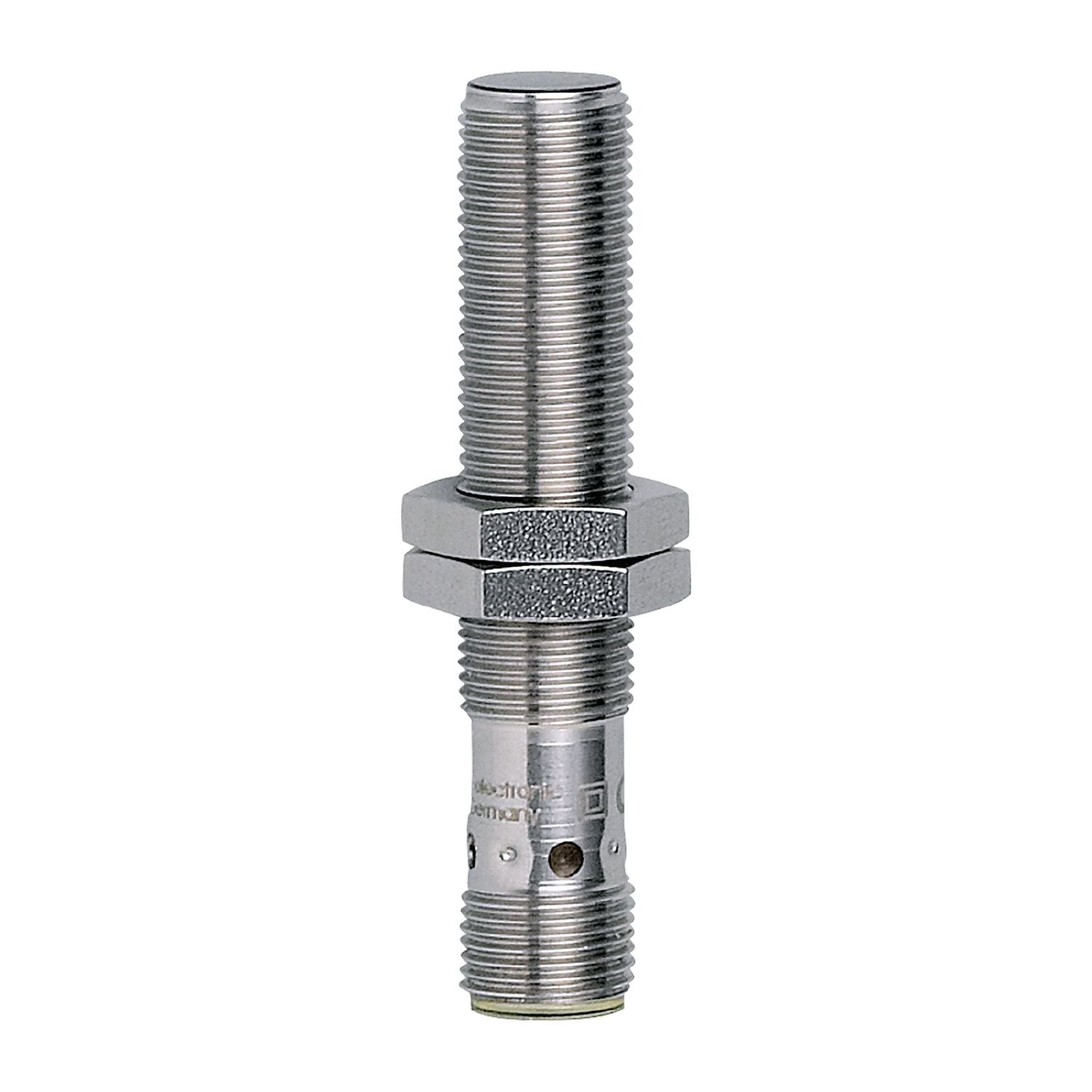

For use in machine tools and metalworking. Resistant to oils and coolants. Long sensing range for high uptime. Excellent price/performance ratio. Very high switching frequency
Electrical design
PNP
Dimensions [mm]
M12 x 1 / L = 63
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 15
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
PNP
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 65; IP 67; IP 68;("Coolant")
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m (80...1000 MHz)
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV
EN 61000-4-6 HF conducted
10 V (0,15...80 MHz)
EN 55011
class B
MTTF [years]
1048
Weight [g]
34.8
Dimensions [mm]
M12 x 1 / L = 63
Thread designation
M12 x 1
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — JAC201-00 — 25.04.2023 —
