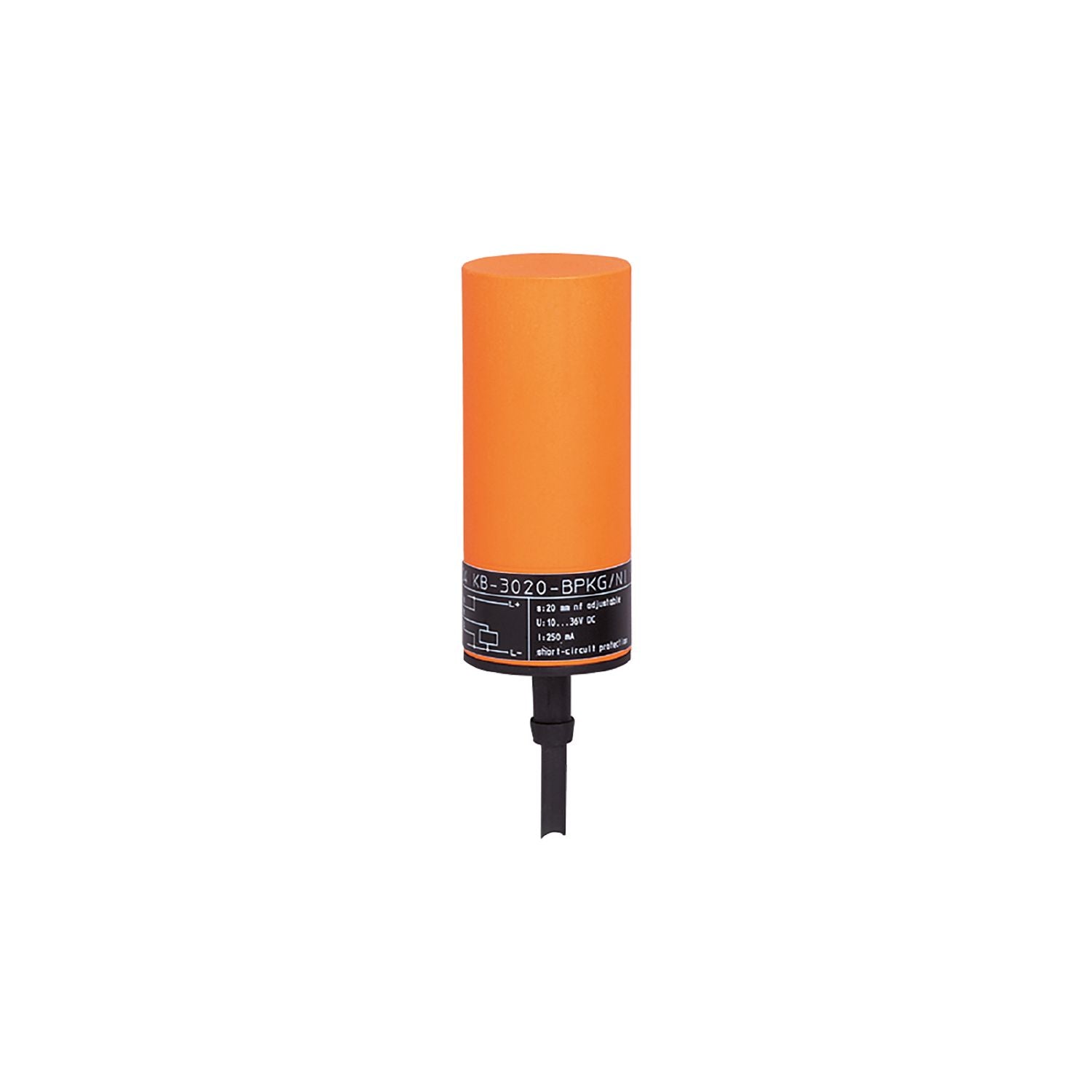

IFM KB5004 - Capacitive sensor KB-3020-BPKG/NI

High noise immunity.
Easy setting of the sensing range via potentiometer.
Smooth plastic housing to protect against deposits.
For position detection or level monitoring

Electrical design	PNP
Output function	normally open
Sensing range [mm]	3...20
Housing	cylindrical
Dimensions [mm]	Ø 34 / L = 81

Operating voltage [V]	10...36 DC
Current consumption [mA]	13;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	40
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	3...20
Sensing range adjustable	yes
Factory setting sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65
Increased immunity	yes;(increased immunity to conducted radio frequency interference)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	778

Weight [g]	255.5
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 34 / L = 81
Materials	PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Mounting clamps: 2 cylinder screws: 2 spring discs: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.5 mm²
