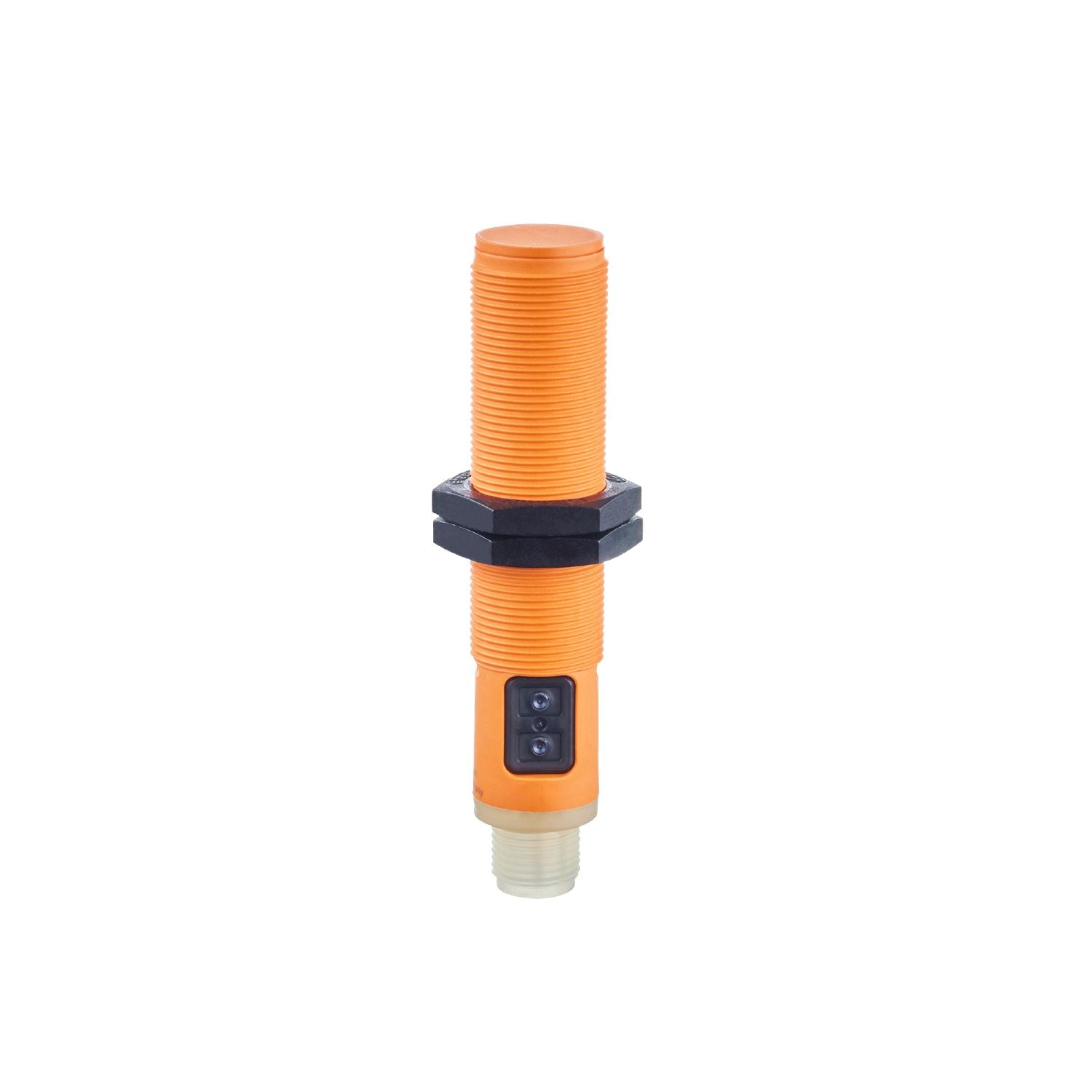

Output function normally open / normally closed programmable. Clearly visible indication of the switching status. Easy adjustment to the empty and full state via pushbutton. Resistant to electrostatic discharge
Electrical design
PNP
Output function
normally open / normally closed;(selectable)
Sensing range [mm]
12
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 87
Operating voltage [V]
10...36 DC
Current consumption [mA]
< 20
Protection class
II
Reverse polarity protection
yes
Measuring principle
capacitive
Outputs
Electrical design
PNP
Output function
normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
10
Short-circuit proof
yes
Overload protection
yes
Detection zone
Sensing range [mm]
12
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Interfaces
Communication interface
IO-Link
Transmission type
COM1 (4,8 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor
SIO mode
yes
Min. process cycle time [ms]
101
Supported DeviceIDs
Type of operation
DeviceID
default
387
Operating conditions
Ambient temperature [°C]
-25...80
Note on ambient temperature
temperature of the sensing face: -25...110 °C
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years]
662
Weight [g]
31.5
Housing
threaded type
Mounting
non-flush mountable
Dimensions [mm]
M18 x 1 / L = 87
Thread designation
M18 x 1
Materials
housing: PBT; pushbuttons: TPE-U; LED window: PC
Displays / operating elements
Display
switching status
1 x LED, yellow
Teach function
yes
Electronic lock
yes
Accessories
Items supplied
lock nuts: 2
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KG5066-01 — 13.04.2023 —
