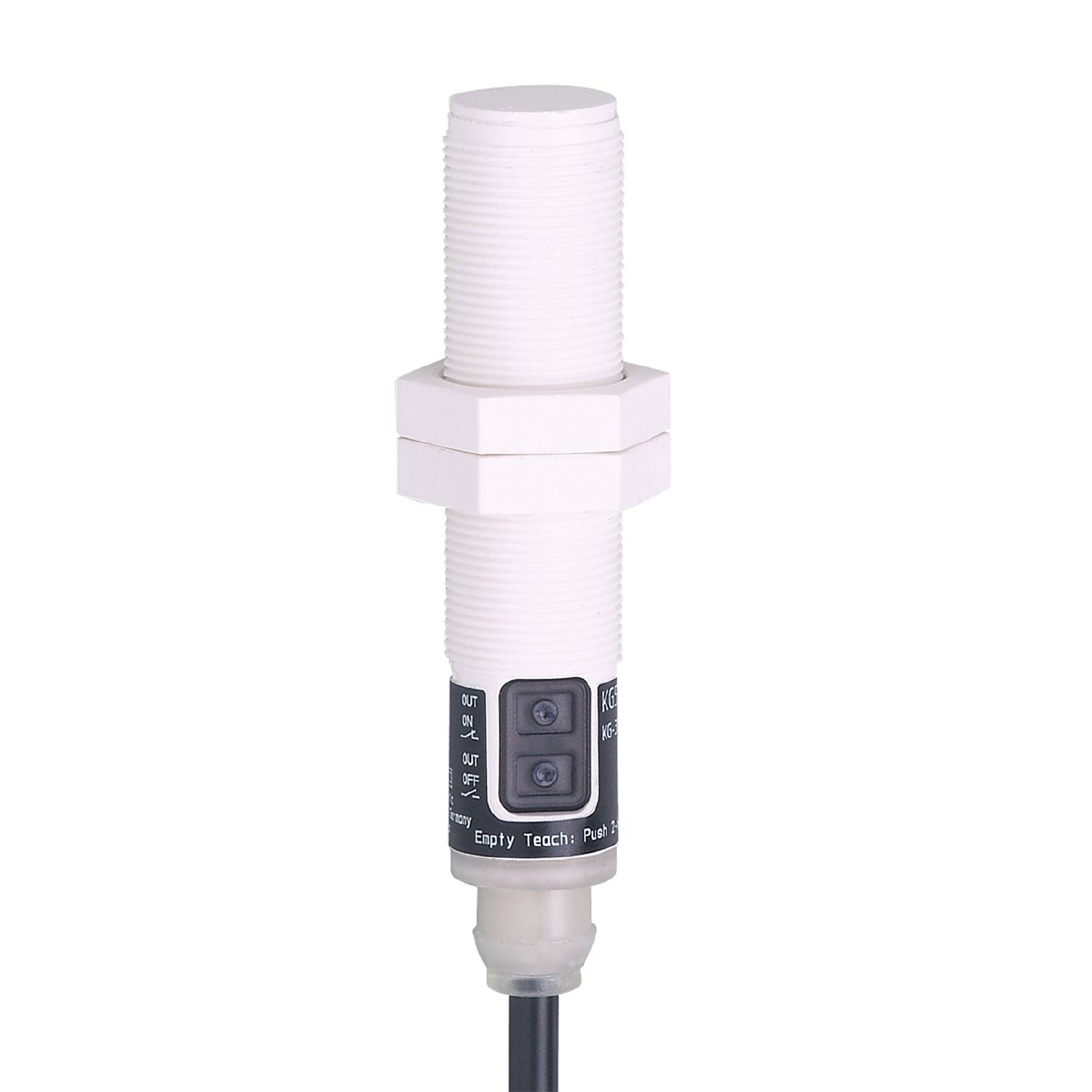

IFM KG5070 - Capacitive sensor KG-3080NFPKGS2T/10M

Reliable level detection of conductive media.
Sensitivity adjustable via teach buttons.
High noise immunity.
Output function normally open / normally closed programmable.
Clearly visible indication of the switching status via LED ring

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 77

Recommended media	conductive media with a dielectric constant > 20

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	10
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.1
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	672

Weight [g]	375.2
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 77
Thread designation	M18 x 1
Materials	housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U

Displays / operating elements

Display	switching status 1 x LED ring, yellow cable entry lights translucently operation 1 x LED, green
Teach function	yes
Electronic lock	yes

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 10 m, PVC; conduit attachment; 3 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KG5070-00 — 13.04.2023 —
