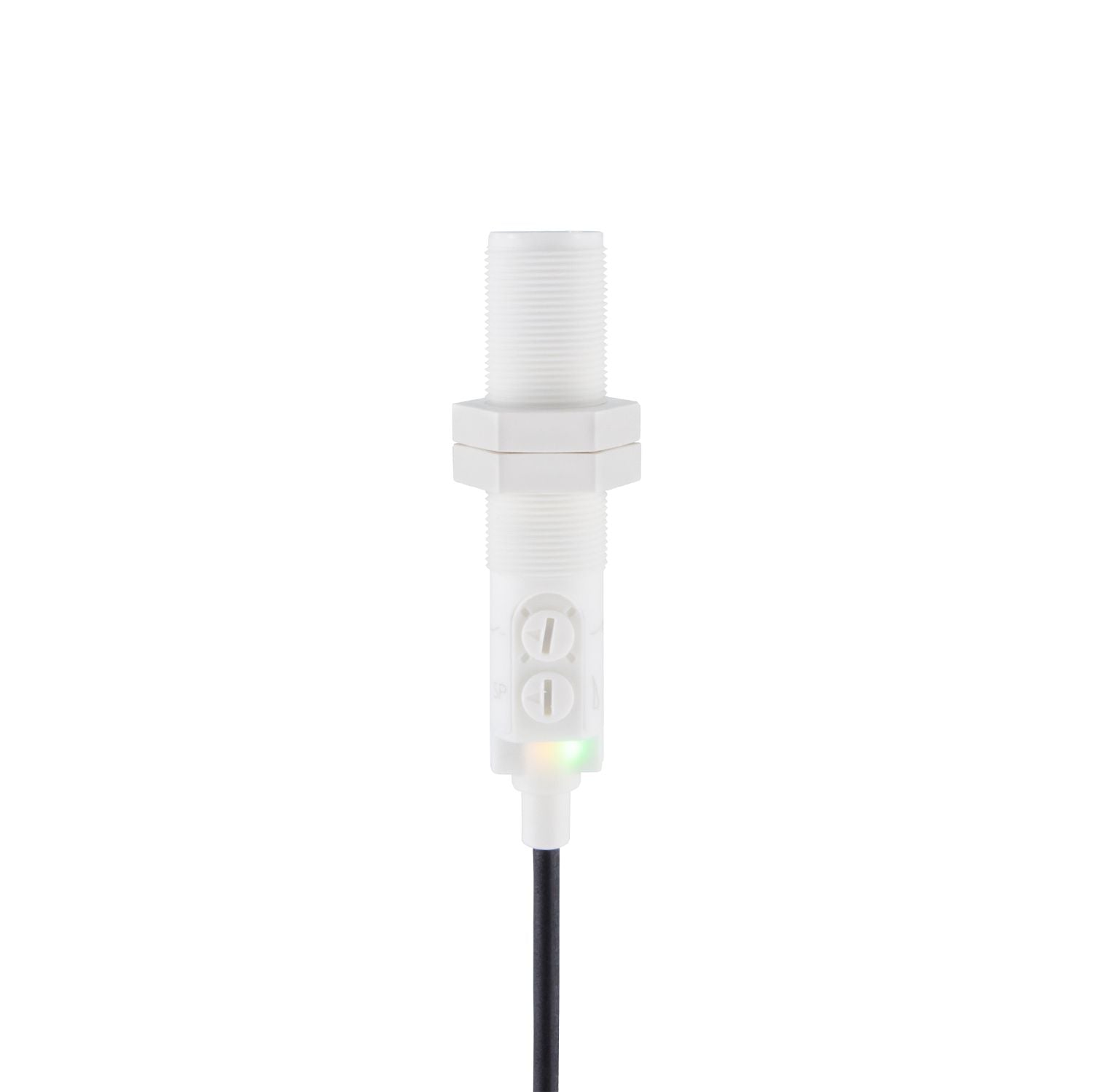

Easily adjustable sensing range. With signal display for a perfect switch point. High protection rating for the requirements of harsh industrial environments. Use in high medium temperatures. For position detection or level monitoring
Electrical design
NPN
Output function
normally open / normally closed;(selectable)
Sensing range [mm]
0.5...30
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 92.5
Special feature
Optical setting aid
Medium temperature [°C]
-25...110
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 22
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
NPN
Output function
normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
30
Short-circuit protection
yes
Overload protection
yes
Detection zone
Sensing range [mm]
0.5...30
Sensing range adjustable
yes
Factory setting sensing range [mm]
15
Real sensing range Sr [mm]
15 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-10...10
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Process Data Variable; Device Identification
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
20
IO-Link functions (acyclical)
application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); switch point setting; Hysteresis
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2
8 kV AD / 4 kV CD
EN 61000-4-3
10 V/m
EN 61000-4-4
2 kV
EN 61000-4-6
10 V
EN 55011
class B
Vibration resistance
DIN EN 60947-5-2
1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
DIN EN 60947-5-2
30 g 6 shocks / 11 ms half-sine (x, y, z)
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL Approval no.
D004
File number UL
E174191
Weight [g]
73.2
Housing
threaded type
Mounting
non-flush mountable
Dimensions [mm]
M18 x 1 / L = 92.5
Thread designation
M18 x 1
Materials
PBT; PC; POM; potentiometer: PP
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
setting aid
8 x LED, green
Optical setting aid
yes
Accessories
Items supplied
lock nuts: 2
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PUR, Ø 4 mm; 3 x 0.34 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KG6016-00 — 15.11.2023 —
