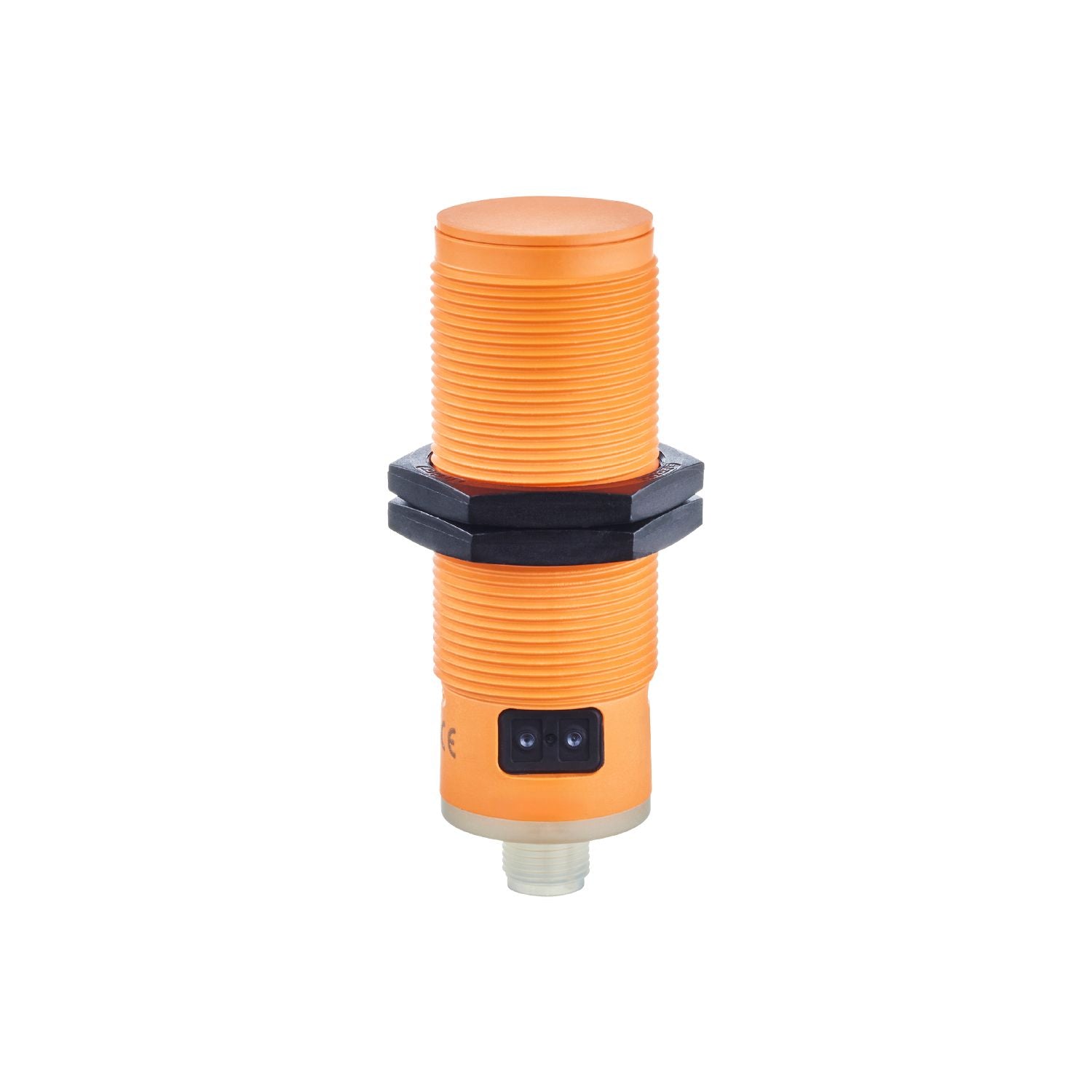

IFM KI0054 - Capacitive sensor KI-2200NFBOAP2T/LS100

Easy adjustment to the empty and full state via pushbutton.
For the detection of liquids and dry bulk materials.
With combined AC/DC output stage.
Two-wire technology.
Output function normally open / normally closed programmable

Output function	normally open / normally closed;(selectable)
Sensing range [mm]	5...40;(programming buttons)
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 90

Installation	detection through non-metallic container wall or on bypass pipes
Media	dry bulk material; liquids

Frequency AC [Hz]	47...63
Operating voltage [V]	30...250 AC / 20...250 DC
Protection class	II
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	8
Max. voltage drop switching output AC [V]	10
Max. leakage current [mA]	2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]	100;(150 (...40 °C))
Permanent current rating of switching output DC [mA]	100;(150 (...40 °C))
Short-time current rating of switching output [mA]	1000;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range [mm]	5...40;(programming buttons)
Sensing range adjustable	yes
Factory setting sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %

Accuracy / deviations

Correction factor	glass: 0.3 / water: 1 / ceramics: 0.2 / PVC: 0.1
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Operating conditions

Ambient temperature [°C]	-25...80
Note on ambient temperature	temperature of the sensing face: -25...110 °C
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	321

Weight [g]	109.8
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 90
Thread designation	M30 x 1.5
Materials	housing: PBT; pushbuttons: TPE-U; LED window: PC

Displays / operating elements

Display	switching status 1 x LED ring, yellow plug lights translucently
Teach function	yes
Electronic lock	yes

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied	lock nuts: 2

Remarks	Note: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x 1/2"; coding: C
