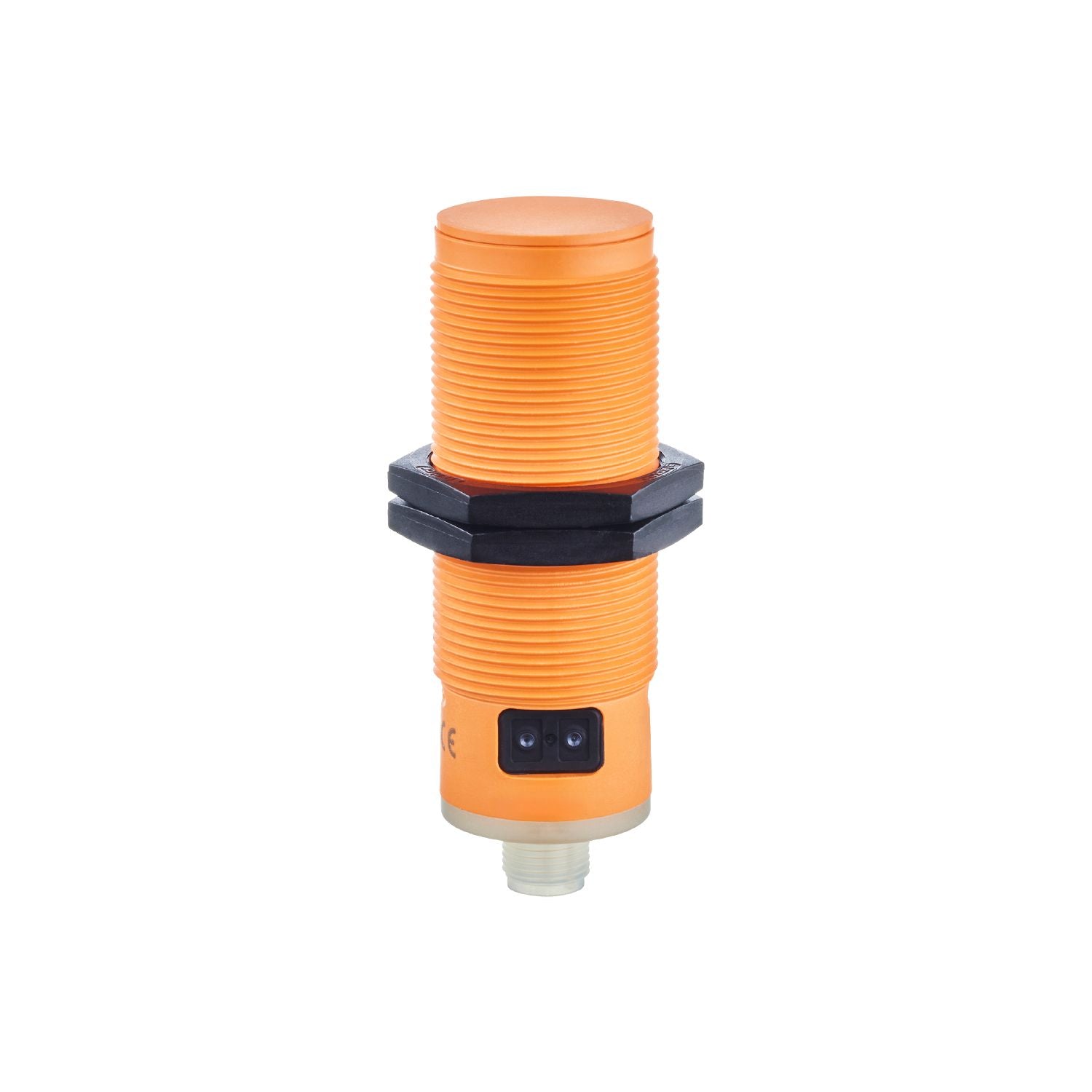

Easy adjustment to the empty and full state via pushbutton. For the detection of liquids and dry bulk materials. With combined AC/DC output stage. Adjustable switching delay. Output function normally open / normally closed programmable
Output function
normally open / normally closed;(selectable)
Sensing range [mm]
20
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 90
Operating voltage [V]
30...250 AC / 20...250 DC
Rated insulation voltage [V]
250
Protection class
II
Reverse polarity protection
yes
Max. power-on delay time [ms]
700
Measuring principle
capacitive
Outputs
Output function
normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
10
Max. voltage drop switching output AC [V]
10
Minimum load current [mA]
5
Max. leakage current [mA]
2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]
100;(150 (...40 °C))
Permanent current rating of switching output DC [mA]
100;(150 (...40 °C))
Short-time current rating of switching output [mA]
1000;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]
10
Switching frequency DC [Hz]
10
Short-circuit proof
no
Overload protection
no
Detection zone
Sensing range [mm]
20
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Software / programming
Parameter setting options
5 output hold times programmable;(1: 15 min; 2: 30 min; 3: 45 min; 4: 60 min; 5: 0 min)
Operating conditions
Ambient temperature [°C]
-25...80
Note on ambient temperature
temperature of the sensing face: -25...110 °C
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2
4 kV CD / 8 kV AD
EN 61000-4-3
3 V/m
EN 61000-4-4
2 kV
EN 61000-4-6
3 V
EN 55011
class B
Weight [g]
109.8
Housing
threaded type
Mounting
non-flush mountable
Dimensions [mm]
M30 x 1.5 / L = 90
Thread designation
M30 x 1.5
Materials
housing: PBT; pushbuttons: TPE-U; LED window: PC
Displays / operating elements
Display
switching status
1 x LED, yellow
Teach function
yes
Electronic lock
yes
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nuts: 2
Remarks
Note:
Check the safe functioning of the unit after a short circuit.
Pack quantity
1 pcs.
Electrical connection - plug
Connector: 1 x 1/2"; coding: C
