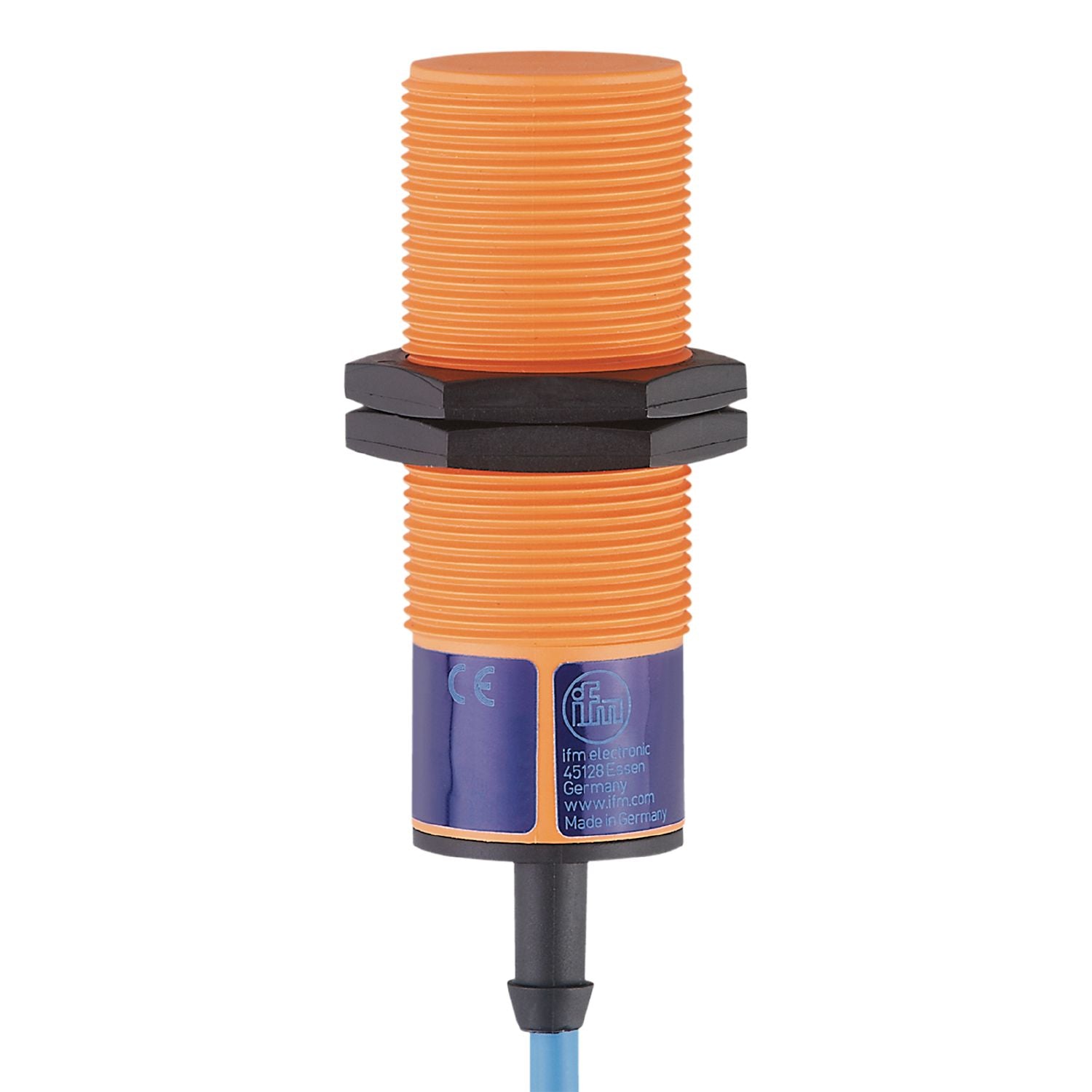

IFM KI5030 - Capacitive NAMUR sensor KI-2015-N/NI/1D/1G

For applications in hazardous areas.
Easy setting of the sensing range via potentiometer.
Clearly visible indication of the switching status by LED.
For connection to intrinsically safe circuits

Electrical design	NAMUR
Output function	normally closed
Sensing range [mm]	15
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 81

Connection to switching amplifiers	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Supply voltage DC [V]	7.5...15
Current consumption [mA]	< 1;(disabled; conductive: > 2,2)
Protection class	II
Measuring principle	capacitive

Outputs

Electrical design	NAMUR
Output function	normally closed
Switching frequency DC [Hz]	40
Short-circuit proof	yes

Detection zone

Sensing range [mm]	15
Sensing range adjustable	yes
Factory setting sensing range [mm]	15
Real sensing range Sr [mm]	15 ± 10 %

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 65

Tests / approvals

Approval	DMT 01 ATEX E 020; TIIS TC15627; IECEx BVS 06.0003
ATEX marking	II 1G Ex ia IIB T6 Ga
	II 1D Ex ia IIIC T90°C Da
EMC	IEC 60947-5-2
MTTF [years]	841

Safety classification

Max. internal capacitance [nF]	375
Max. internal inductance [µH]	1

Weight [g]	212.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 81
Thread designation	M30 x 1.5
Materials	PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.5 mm²
