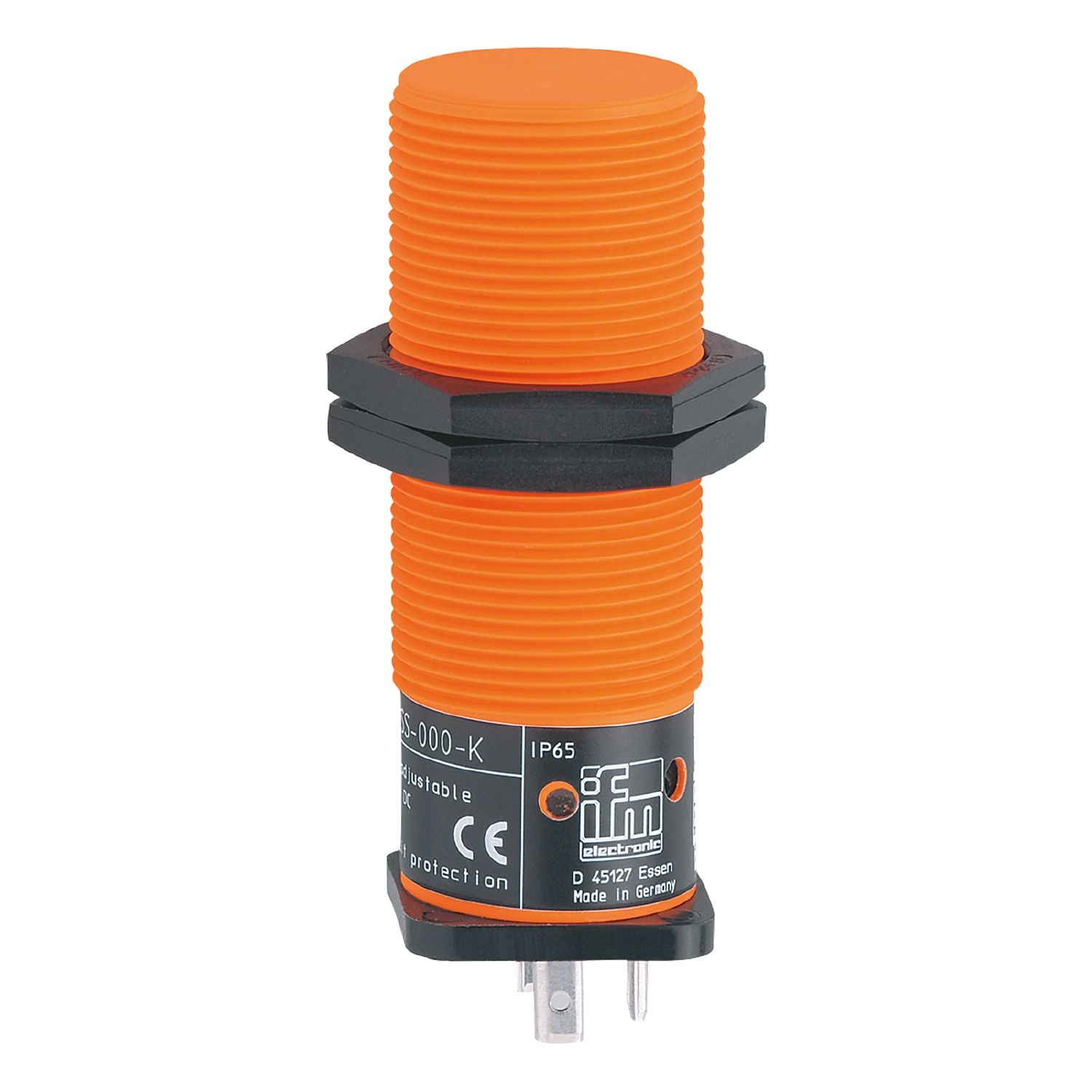

IFM KI5038 - Capacitive sensor KI-3015-FPKG/NI/SS-000-K

Easy setting of the sensing range via potentiometer.
High noise immunity.
Output function normally open / normally closed programmable.
With DIN connector.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	15
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 92

Operating voltage [V]	10...36 DC
Current consumption [mA]	13;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	40
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	15
Real sensing range Sr [mm]	15 ± 10 %
Operating distance [mm]	0...12.1

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65
Increased immunity	yes;(increased immunity to conducted radio frequency interference)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	769

Weight [g]	101.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 92
Thread designation	M30 x 1.5
Materials	PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x valve plug type A DIN (DIN EN 175301-803)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI5038-01 — 13.04.2023 —
