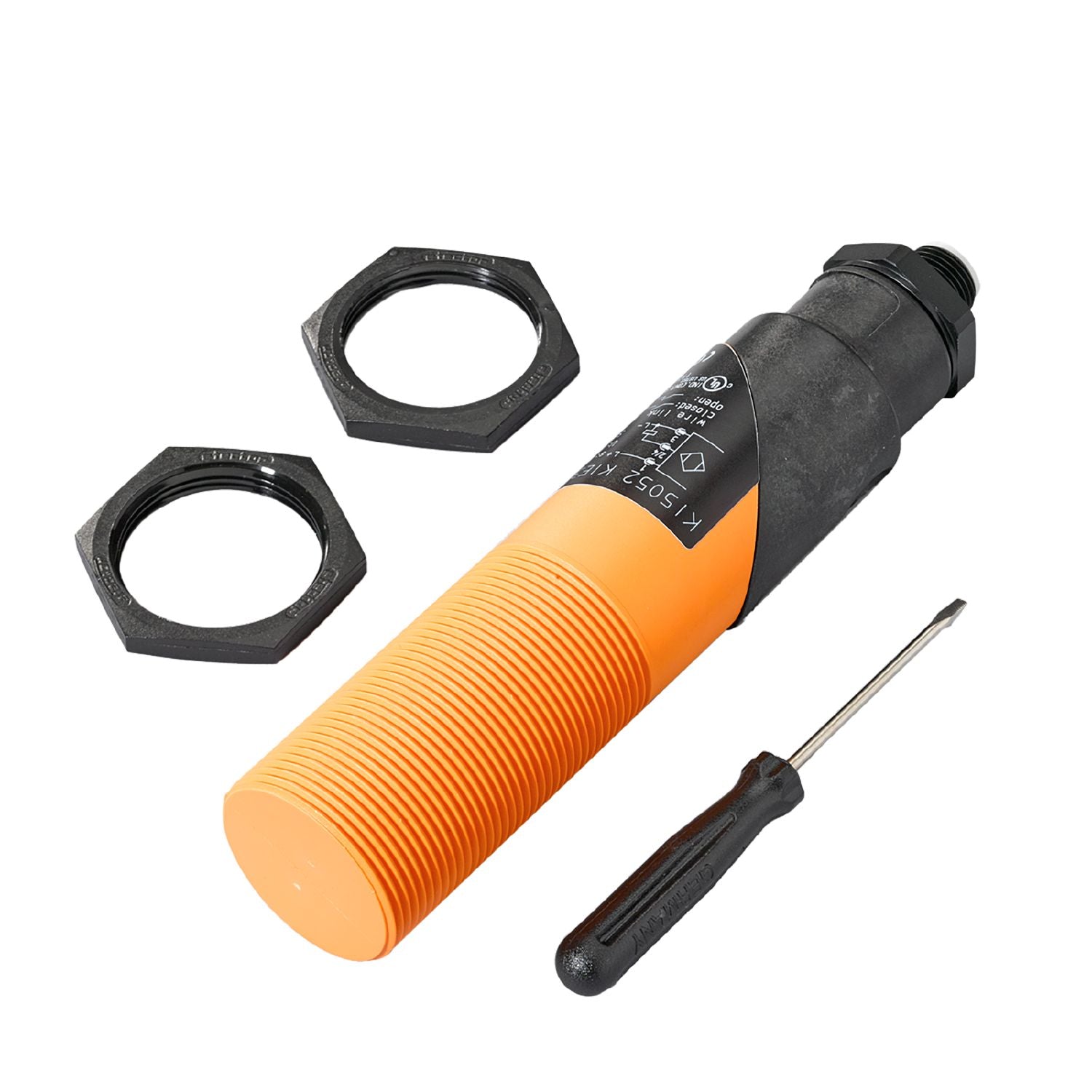

IFM KI5052 - Capacitive sensor KIE3015-FPKG/NI/55V/US-100-DPX

High noise immunity.
Easy setting of the sensing range via potentiometer.
Clearly visible indication of the switching status.
Output function normally open / normally closed programmable.
With connector that can be rotated by 90°

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	15
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 143

Operating voltage [V]	10...55 DC;("supply class 2" to cULus)
Current consumption [mA]	14;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	40
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65
Increased immunity	yes;(increased immunity to conducted radio frequency interference)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	743

Weight [g]	146
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 143
Thread designation	M30 x 1.5
Materials	PBT; end cap: PC

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI5052-01 — 13.04.2023 —
