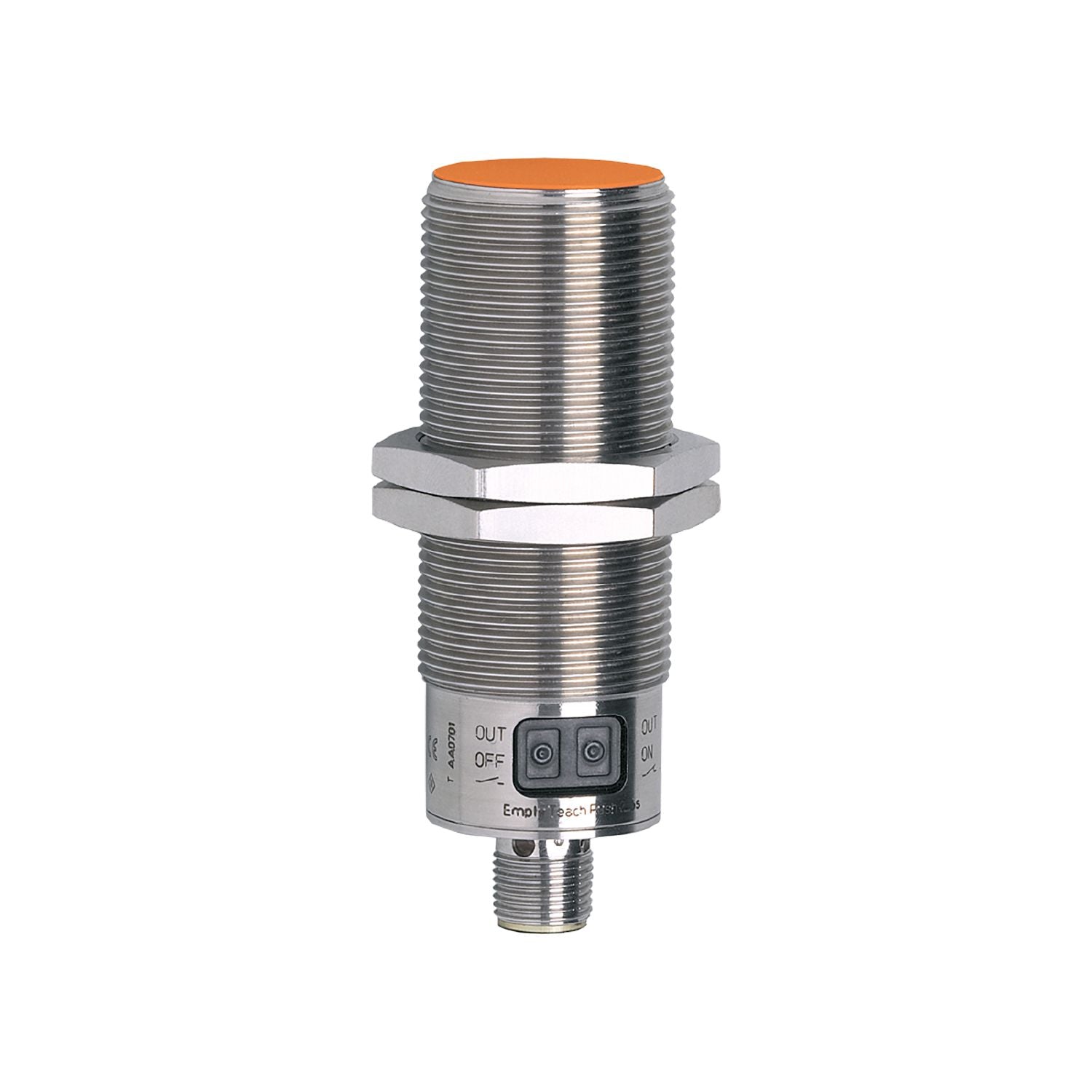

Easy adjustment to the empty and full state via pushbutton or IO-Link. Output function normally open / normally closed programmable. Clearly visible indication of the switching status. Robust stainless steel housing for use in harsh industrial environments. Reliable level detection through non-metallic vessel walls
Electrical design
PNP
Output function
normally open / normally closed;(selectable)
Sensing range [mm]
8
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 90
Operating voltage [V]
10...30 DC;(10...36 DC (60 °C))
Current consumption [mA]
< 18
Protection class
III
Reverse polarity protection
yes
Measuring principle
capacitive
Outputs
Electrical design
PNP
Output function
normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
10
Short-circuit proof
yes
Overload protection
yes
Detection zone
Sensing range [mm]
8
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Interfaces
Communication interface
IO-Link
Transmission type
COM1 (4,8 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor
SIO mode
yes
Min. process cycle time [ms]
101
Supported DeviceIDs
Type of operation
DeviceID
default
388
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
