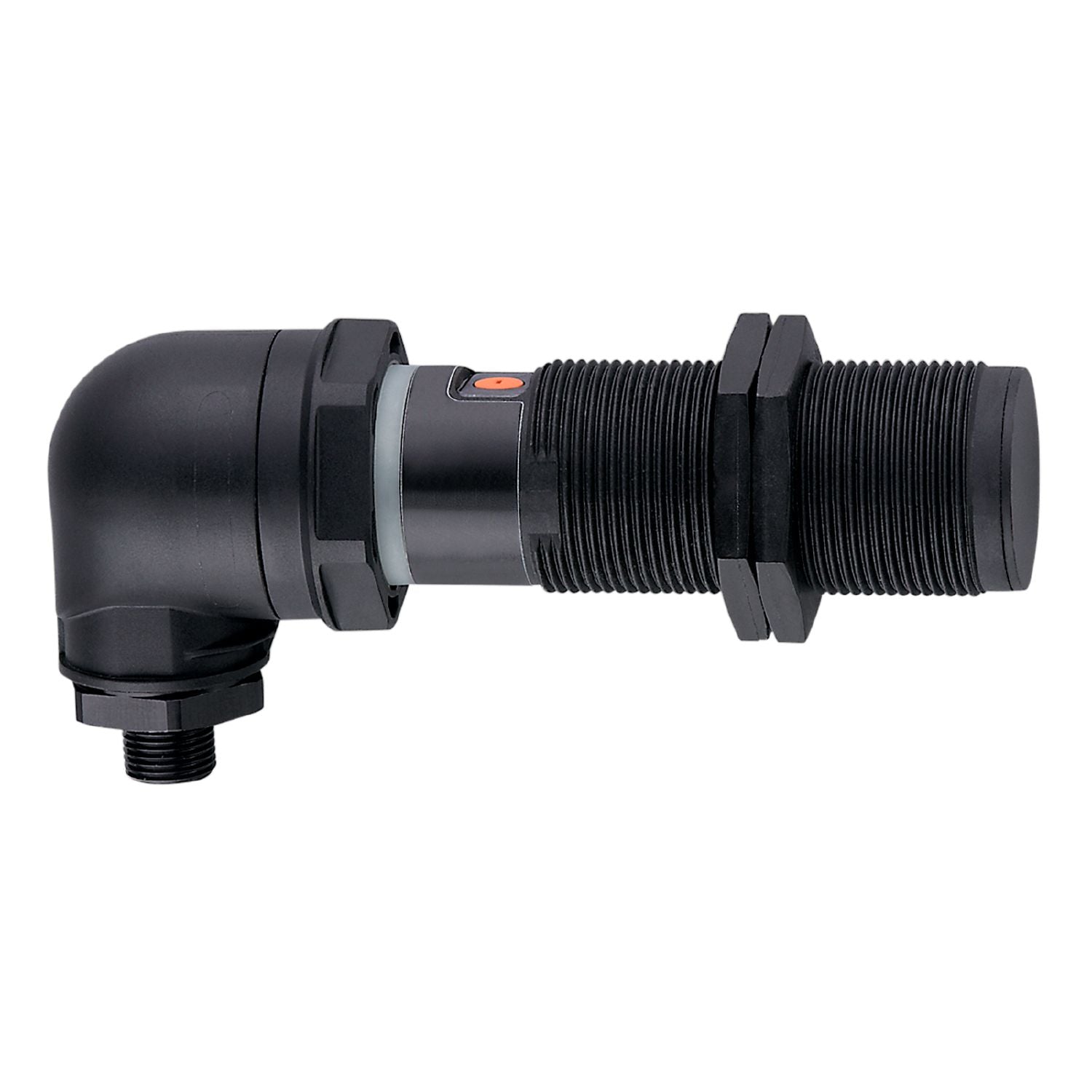

For applications in hazardous areas. Easy setting of the sensing range via potentiometer. Clearly visible indication of the switching status. Direct connection to plant control without switching amplifier. Complementary output function NO/NC
Electrical design
PNP
Output function
complementary
Sensing range [mm]
3...26
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 150
Operating voltage [V]
10...30 DC
Rated insulation voltage [V]
60
Current consumption [mA]
< 22
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
300
Measuring principle
capacitive
Outputs
Electrical design
PNP
Output function
complementary
Max. voltage drop switching output DC [V]
2.5
Max. leakage current [mA]
0.1
Permanent current rating of switching output DC [mA]
200
Short-time current rating of switching output [mA]
200
Switching frequency DC [Hz]
10
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Sensing range [mm]
3...26
Sensing range adjustable
yes
Real sensing range Sr [mm]
15 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Process Data Variable; Device Identification
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
20
IO-Link functions (acyclical)
application specific tag; operating hours counter; PNP / NPN (parametrierbar); switch point setting; Hysteresis
Operating conditions
Ambient temperature [°C]
-20...60
Protection
IP 65; IP 67
Tests / approvals
ATEX marking
II 3D Ex tc IIIC T90°C Dc X
EMC
EN 61000-4-2 ESD
kV / 8 kV AD
EN 61000-4-3 HF radiated
3 V/m (80...2000 MHz)
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V 0,15...80 MHz
EN 55011
class B
IEC 60255-5
1 kV line to line, Ri: 500 Ohm
Vibration resistance
EN 60068-2-6 Fc
10...55 Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
