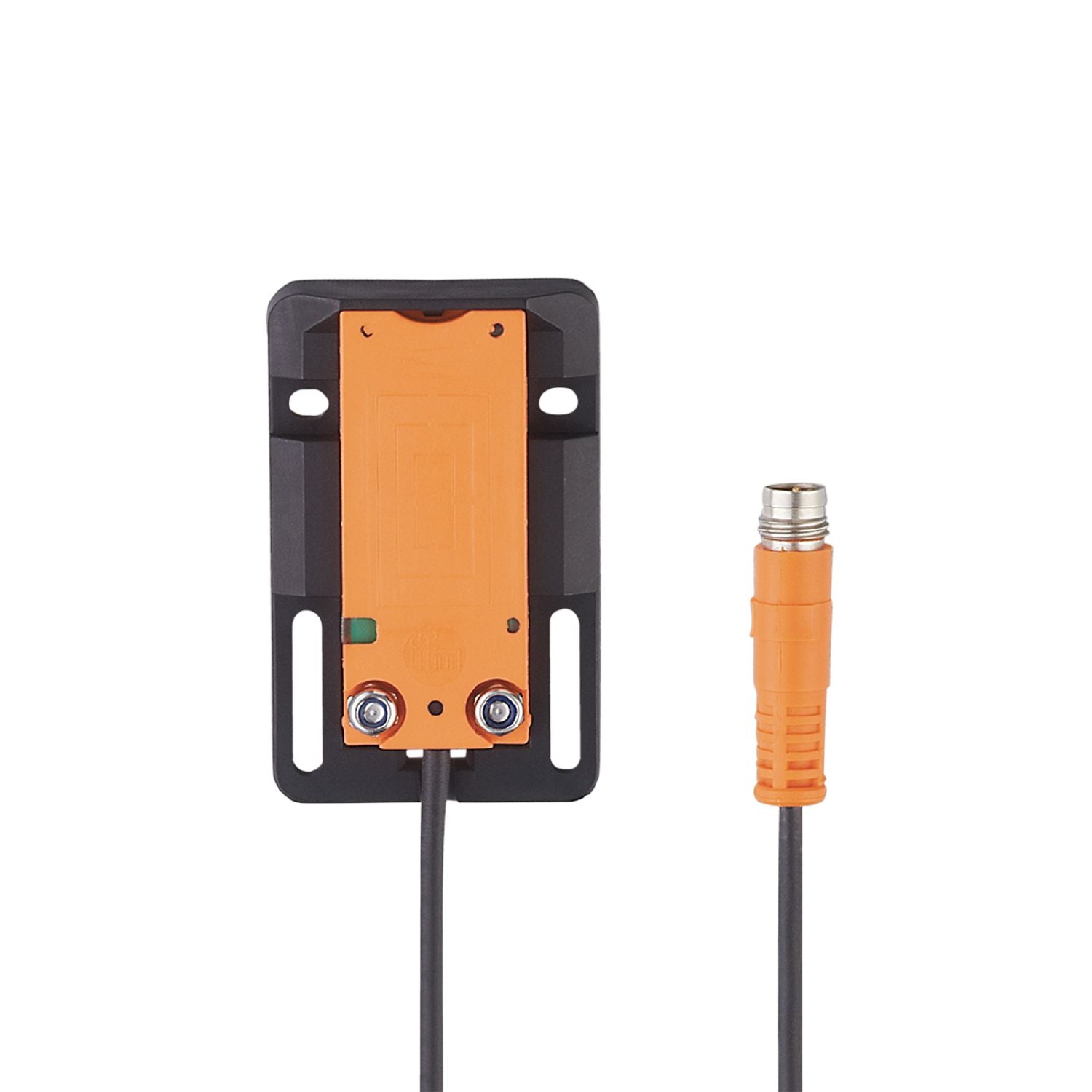

IFM KQ5006 - Capacitive sensor KQ-3067NAPKG/0,04M/AS

Reliable level detection through non-metallic vessel walls.
Output function normally open / normally closed programmable.
Particularly space-saving design for use where space is restricted.
Easy installation with mounting adapters and cable ties.
Specifically for level monitoring of seeds

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	8;(preset: 6,7 mm (± 10%))
Housing	rectangular
Dimensions [mm]	20 x 7 x 48

Application	detection of seeds

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 17
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	8;(preset: 6,7 mm (± 10%))
Sensing range adjustable	yes
Factory setting sensing range [mm]	6.7

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67; IP 69K

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	771
UL approval	Ta -25...80 °C Enclosure type Type 1 power supply Class 2

Weight [g]	58.6
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	20 x 7 x 48
Materials	PBT; TPE-U; stainless steel

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	mounting adapter: 1, fitted

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.045 m, PUR
Connection	Connector: 1 x M8; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KQ5006-01 — 13.04.2023 —
