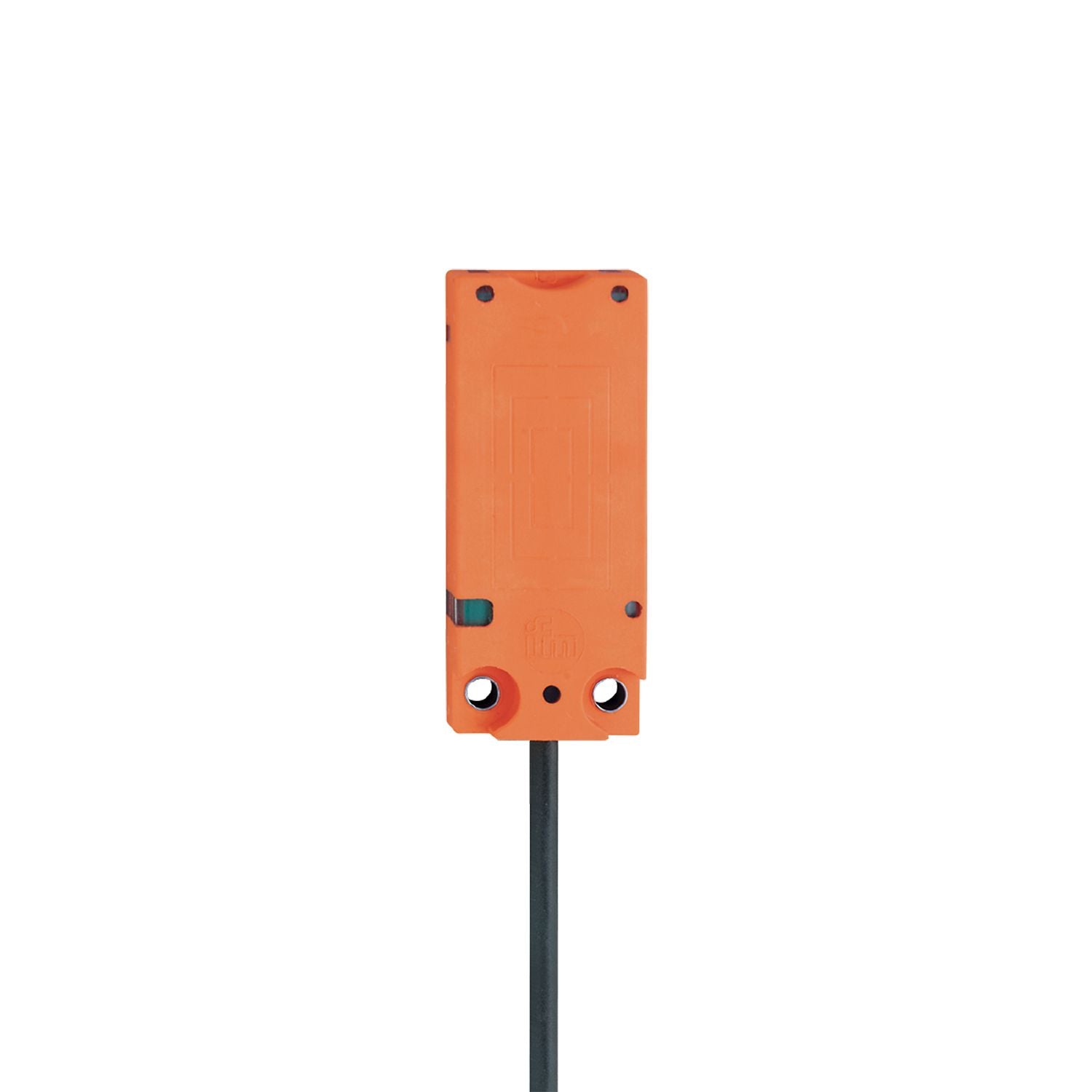

Output function normally open / normally closed programmable. Clearly visible indication of the switching status by LED. Easy installation with mounting adapters and cable ties. For position detection or level monitoring
Electrical design
PNP
Output function
normally open / normally closed;(selectable)
Sensing range [mm]
12
Communication interface
IO-Link
Housing
rectangular
Dimensions [mm]
20 x 7 x 48
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 17
Protection class
III
Reverse polarity protection
yes
Measuring principle
capacitive
Outputs
Electrical design
PNP
Output function
normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
10
Short-circuit protection
yes
Overload protection
yes
Detection zone
Sensing range [mm]
12
Real sensing range Sr [mm]
12 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Software / programming
Parameter setting options
only via IO-Link
Interfaces
Communication interface
IO-Link
Transmission type
COM1 (4,8 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor
SIO mode
yes
Supported DeviceIDs
Type of operation
DeviceID
default
371
Operating conditions
Ambient temperature [°C]
-40...80
Protection
IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2
8 kV AD
EN 61000-4-3
10 V/m
EN 61000-4-4
2 kV
EN 61000-4-6
3 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years]
771
UL approval
Ta
-25...80 °C
Enclosure type
Type 1
power supply
Class 2
Weight [g]
36.7
Housing
rectangular
Mounting
non-flush mountable
Dimensions [mm]
20 x 7 x 48
Materials
PBT; TPE-U; stainless steel
Displays / operating elements
Display
switching status
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PUR; 3 x 0.14 mm²
