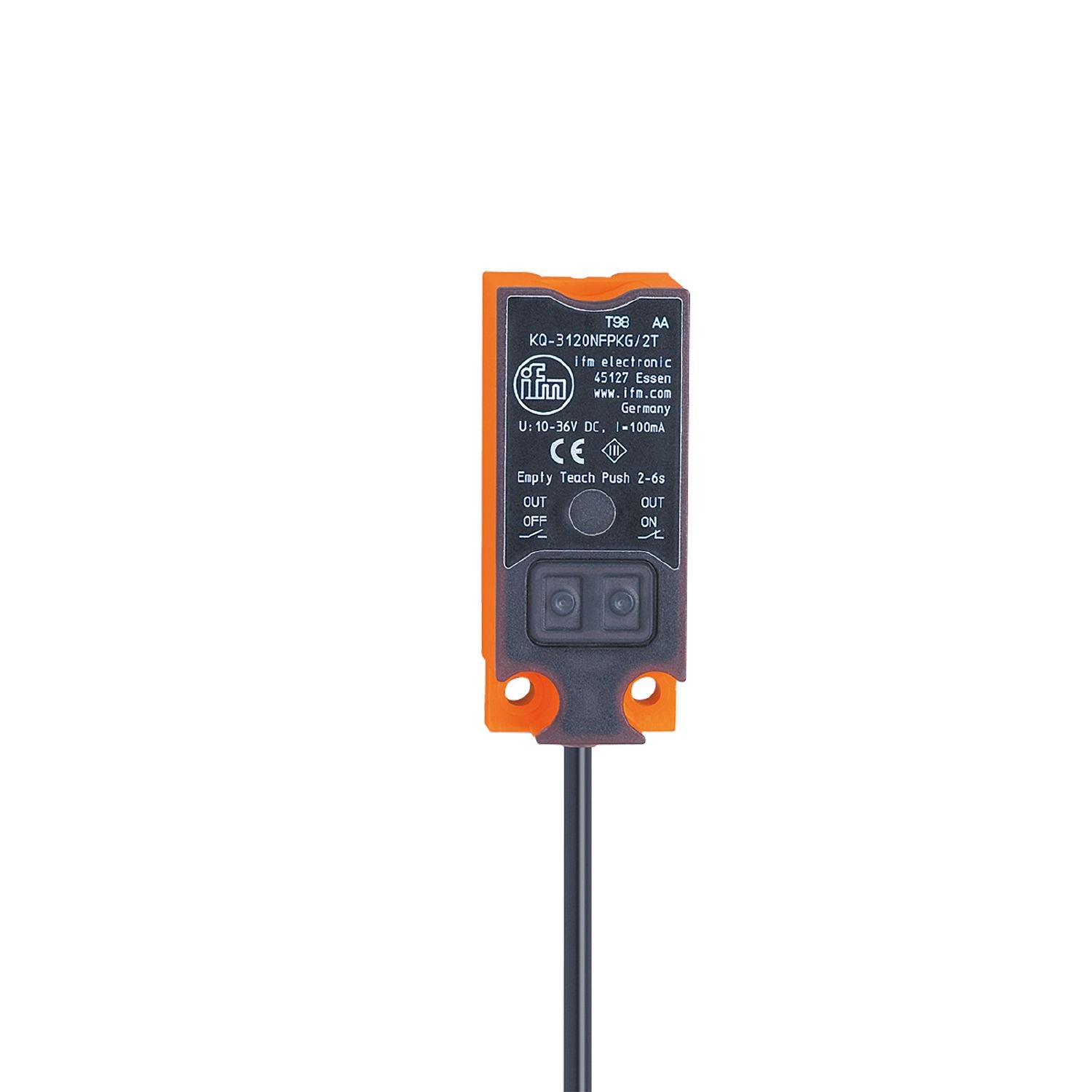

IFM KQ6006 - Capacitive sensor KQ-3120NFNKG/2T

Output function normally open / normally closed programmable.
Clearly visible indication of the switching status by LED.
Easy installation with mounting adapters and cable ties.
For position detection or level monitoring

Electrical design	NPN
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	12
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	20 x 14 x 48

Installation	detection through non-metallic container wall or on bypass pipes
Media	dry bulk material; liquids

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 17
Protection class	III
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Electrical design	NPN
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	12
Real sensing range Sr [mm]	12 ± 10 %

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Interfaces

Communication interface	IO-Link
Transmission type	COM1 (4,8 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Smart Sensor
SIO mode	yes
Supported DeviceIDs	Type of operation DeviceID default 371

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67; IP 69K

Tests / approvals

EMC	EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 3 V/m EN 61000-4-4 2 kV EN 61000-4-6 3 ms EN 55011 class B
Vibration resistance	(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance	30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years]	623
UL approval	Ta -25...80 °C Enclosure type Type 1 power supply Limited Voltage/Current

Weight [g]	46.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	20 x 14 x 48
Materials	housing: PBT glass fibre reinforced; pushbuttons: TPE-U; cover: PC glass fibre reinforced

Displays / operating elements

Display	switching status 1 x LED, yellow
Teach function	yes
Electronic lock	yes

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
