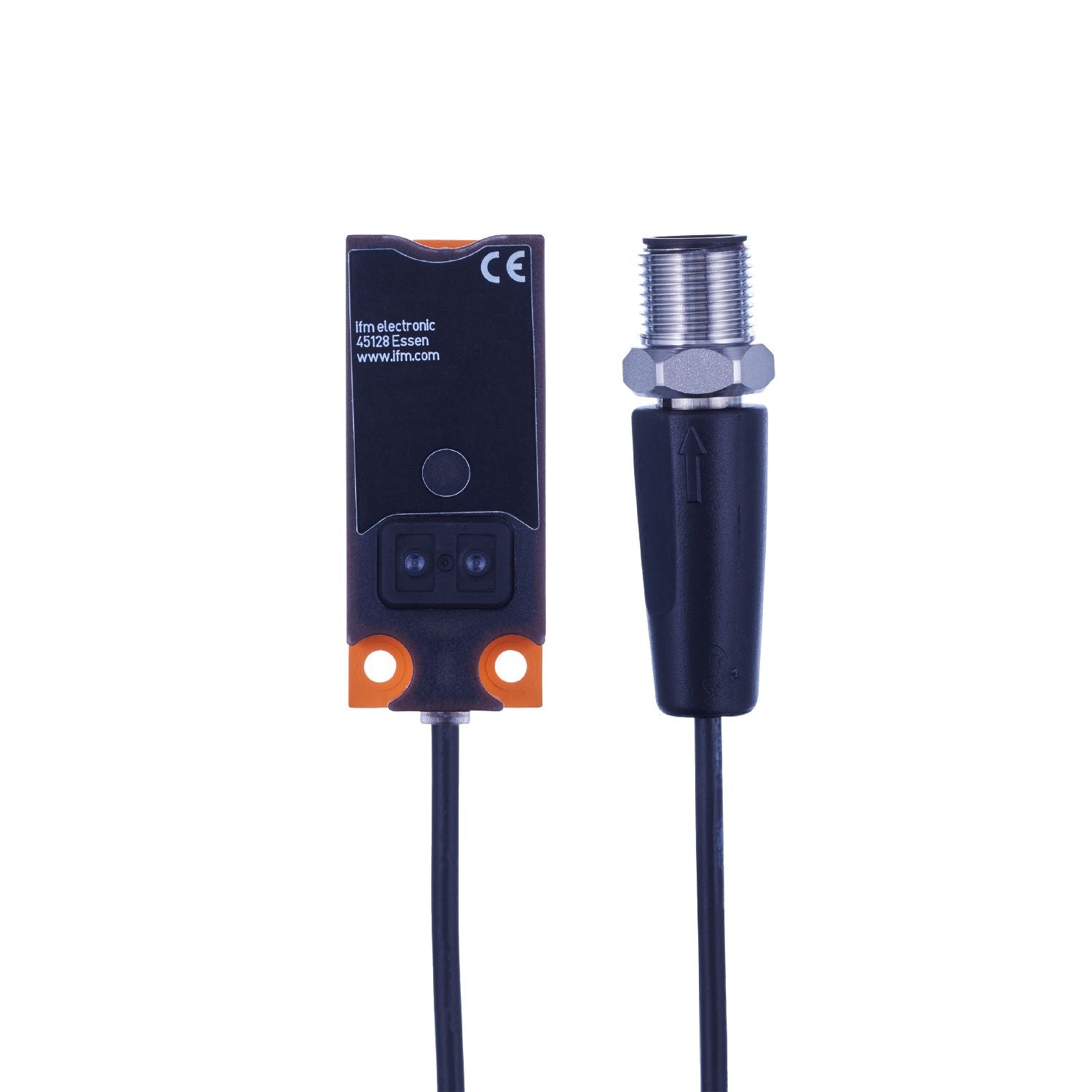

Output function normally open / normally closed programmable. Clearly visible indication of the switching status by LED. Easy installation with mounting adapters and cable ties. For position detection or level monitoring
Electrical design
NPN
Output function
normally open / normally closed;(selectable)
Sensing range [mm]
12
Communication interface
IO-Link
Housing
rectangular
Dimensions [mm]
20 x 14 x 48
Installation
detection through non-metallic container wall or on bypass pipes
Media
dry bulk material; liquids
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 17
Protection class
III
Reverse polarity protection
yes
Measuring principle
capacitive
Outputs
Electrical design
NPN
Output function
normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
10
Short-circuit protection
yes
Overload protection
yes
Detection zone
Sensing range [mm]
12
Real sensing range Sr [mm]
12 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Interfaces
Communication interface
IO-Link
Transmission type
COM1 (4,8 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor
SIO mode
yes
Min. process cycle time [ms]
100.8
Supported DeviceIDs
Type of operation
DeviceID
default
371
Operating conditions
Ambient temperature [°C]
-25...80
Note on ambient temperature
for UL application: ...50 °C
Protection
IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
30 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
class B
Shock resistance
EN 60068-2-27
30 g 6 shocks / 11 ms half-sine (x, y, z)
Vibration resistance
EN 60068-2-6
(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
