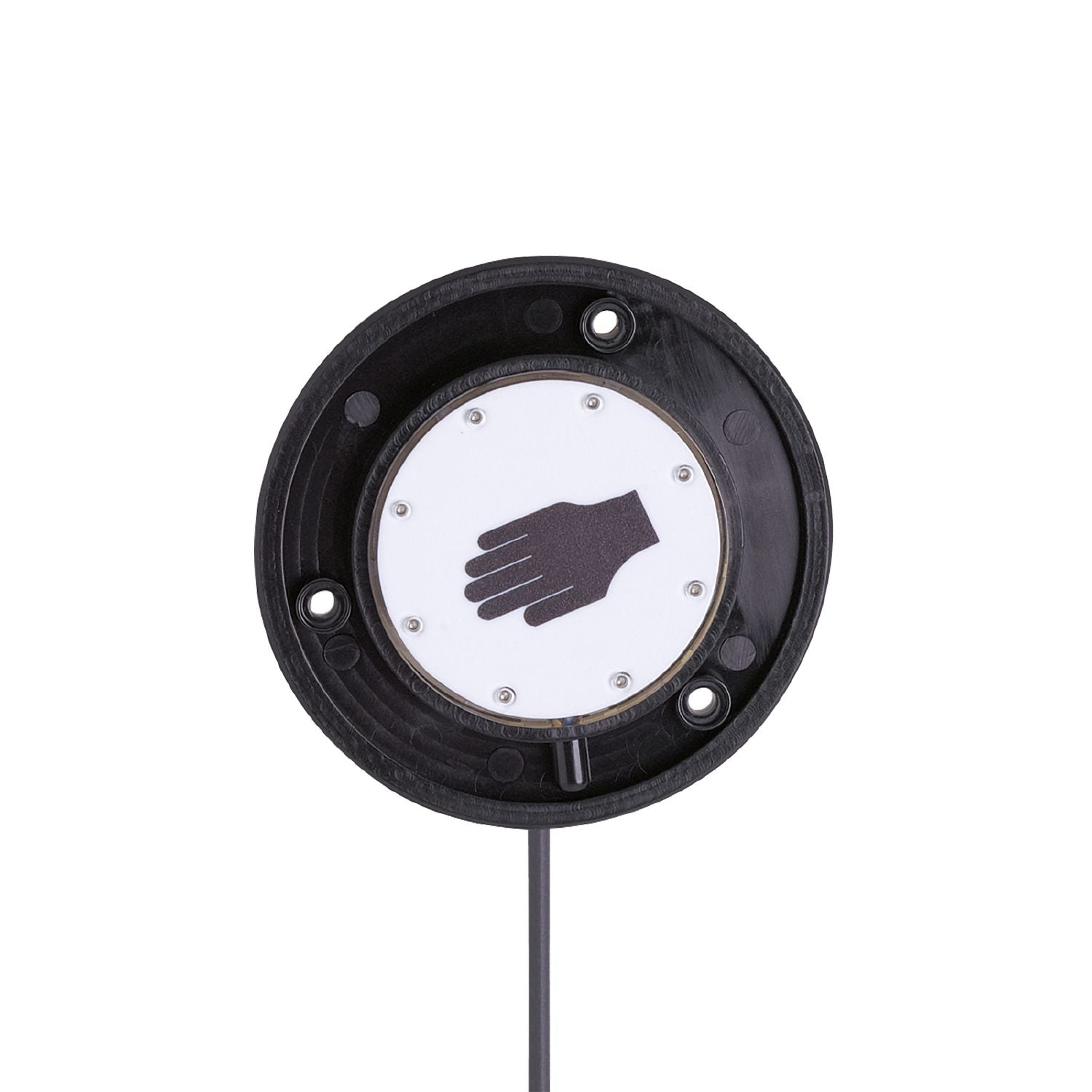

IFM KT5010 - Capacitive touch sensor KTRDHOK-RBPKG/AM/2M

Non-contact switching without mechanical pressure.
LEDs for visual feedback.
Oil-resistant, impact and scratch resistant.
Surround available in different colours.
Wear-free and maintenance-free

Electrical design	PNP
Output function	normally open
Dimensions [mm]	Ø 96.9 / L = 11

Operating principle	dynamic

Operating voltage [V]	12...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes
Length of output signal [ms]	300

Response times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67; IP 69K;(on the front)

Tests / approvals

MTTF [years]	490.4

Weight [g]	144
Dimensions [mm]	Ø 96.9 / L = 11
Materials	active face: PA Grilamid TR 90UV transparent; housing: PC/ABS black

Displays / operating elements

Display	switching status 8 x LED, red operation 8 x LED, green

Accessories

Accessories (optional)	surround in different colours

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT5010-00 — 10.11.2015 —
