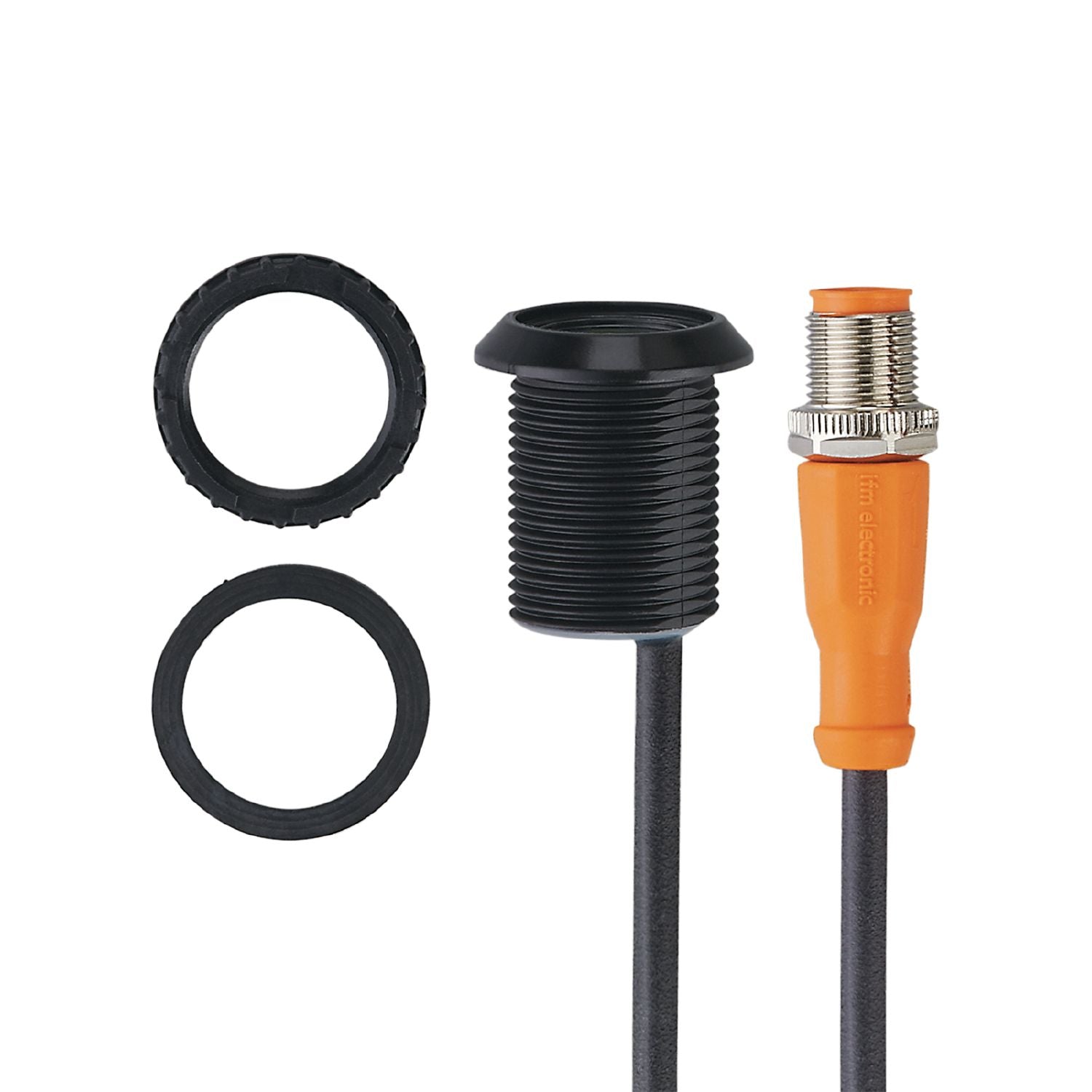

IFM KT5102 - Illuminated capacitive touch sensor KTMDF-K-RBPKG/US/0,3M

Non-contact switching without mechanical pressure.
Wear-free and maintenance-free.
Dynamic evaluation principle protects against unauthorised use.
Easy installation in housing with Ø 22.5 mm drill hole.
Oil-resistant, impact and scratch resistant

Electrical design	PNP
Output function	normally open
Dimensions [mm]	Ø 29 / L = 31

Operating principle	dynamic

Operating voltage [V]	12...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes
Length of output signal [ms]	300

Response times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 69K;(on the front)

Tests / approvals

MTTF [years]	352

Weight [g]	55.5
Dimensions [mm]	Ø 29 / L = 31
Materials	PA 6.6-GF30 black; active face: PA Grilamid TR 90UV

Displays / operating elements

Display	switching status 1 x LED, red operation 1 x LED, green

Accessories

Items supplied	lock nuts: 1 Gasket: 1
Accessories (optional)	symbol disc

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.3 m, PUR
Connection	Connector: 1 x M12; coding: A
