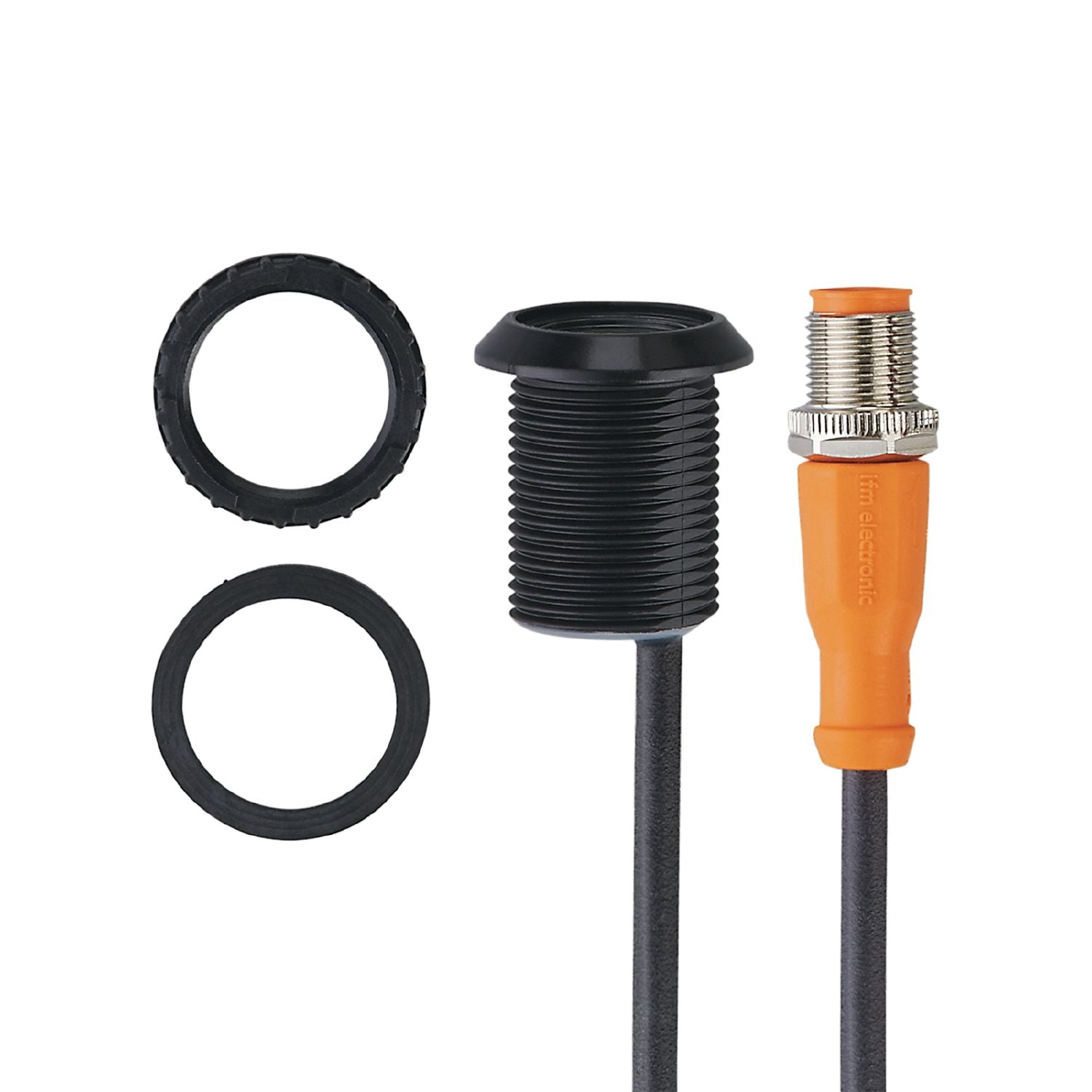

IFM KT5114 - Illuminated capacitive touch sensor KTMSF-KR-BPKG/US/0,5M

Non-contact switching without mechanical pressure.
Wear-free and maintenance-free.
Static evaluation principle protects against unauthorised use.
Easy installation in housing with Ø 22.5 mm drill hole.
Oil-resistant, impact and scratch resistant

Electrical design	PNP
Output function	normally open
Dimensions [mm]	Ø 29 / L = 31

Operating principle	static

Operating voltage [V]	12...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Response times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 69K;(on the front)

Weight [g]	61.5
Dimensions [mm]	Ø 29 / L = 31
Materials	PA 6.6-GF30 black; active face: PA Grilamid TR 90UV

Displays / operating elements

Display	function 1 x LED, red can be triggered

Accessories

Items supplied	lock nuts: 1 Gasket: 1
Accessories (optional)	symbol disc

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.5 m, PUR
Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT5114-00 — 14.10.2015 —
