IFM KT5320 - Illuminated capacitive touch sensor KTMSF-EGRBPKG/2M/anster

Non-contact switching without mechanical pressure.
Robust, impact and scratch resistant stainless steel housing.
High protection rating for the requirements of harsh industrial environments.
Use in applications with regular cleaning.
Static evaluation principle protects against unauthorised use

Electrical design	PNP
Output function	normally open
Dimensions [mm]	Ø 32 / L = 31

Operating principle	static

Operating voltage [V]	12...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Response times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 69K;(on the front)

Tests / approvals

EMC	IEC 61000-4

Weight [g]	117
Dimensions [mm]	Ø 32 / L = 31
Materials	housing: stainless steel (1.4404 / 316L); active face: PA Grilamid TR 90UV

Displays / operating elements

Display	switching status 1 x LED, red function 1 x LED, green can be triggered priority switching

Accessories

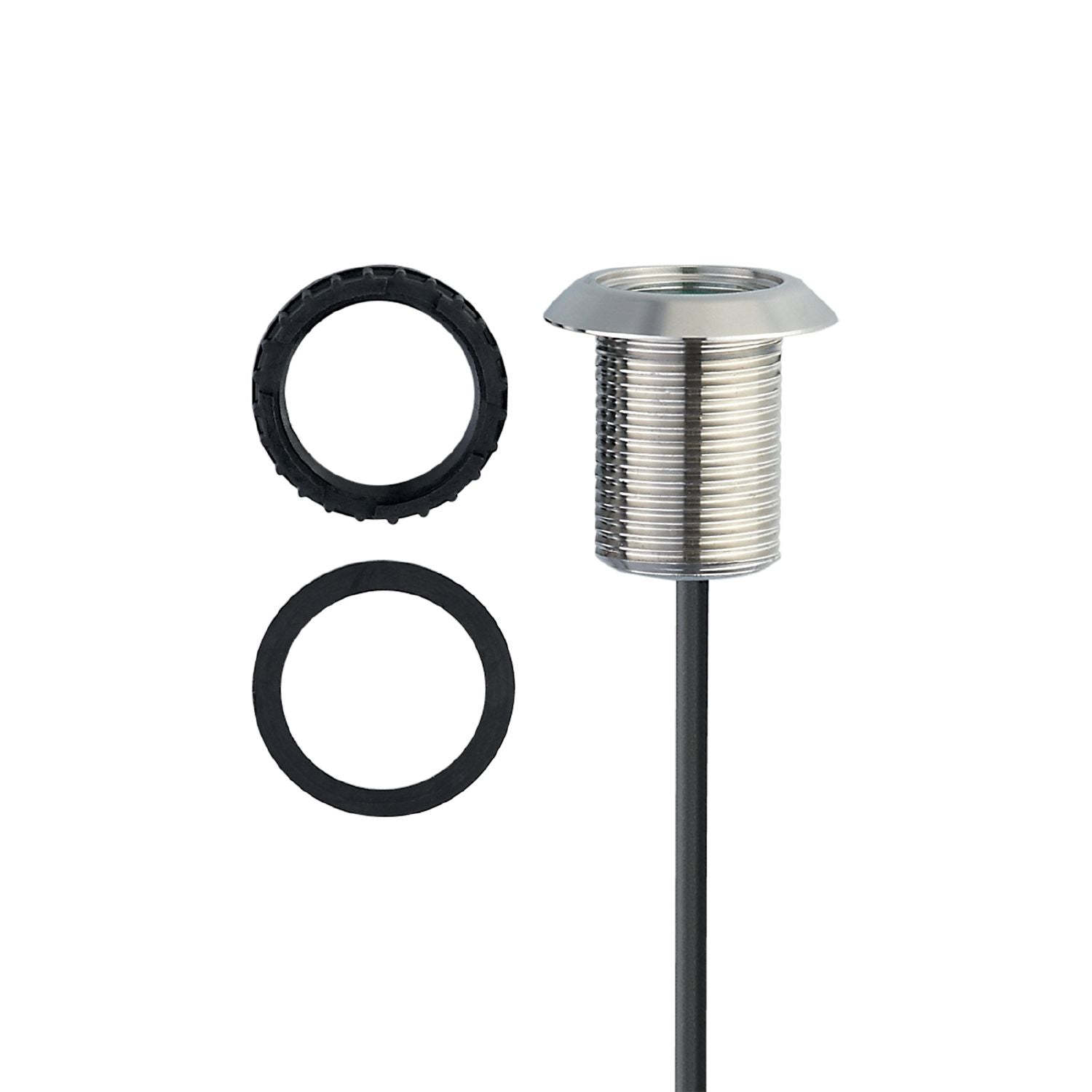

Items supplied	lock nuts: 1 Gasket: 1
Accessories (optional)	symbol disc

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT5320-00 — 16.12.2015 —
