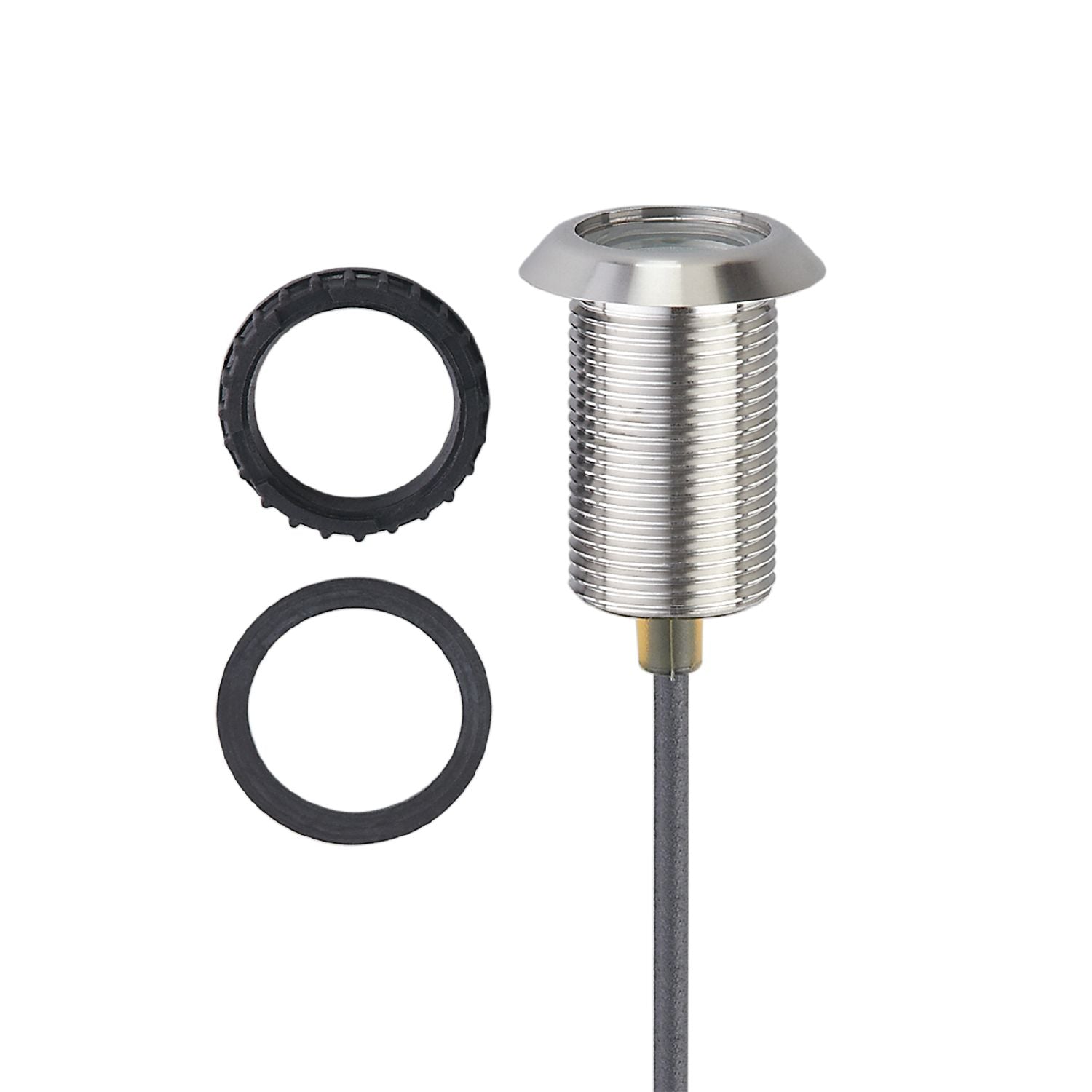

IFM KT6300 - Illuminated capacitive touch sensor KTMEF-EMMFFKG/2m/IO

Ergonomic working by softly touching the sensor.
Start-up delay prevents unintentional switching.
Plant condition indicated via RGB LEDs

Electrical design	PNP/NPN
Output function	normally open / normally closed
Communication interface	IO-Link
Dimensions [mm]	Ø 32 / L = 39

Operating principle	dynamic;(static; bistable parameterisable)

Operating voltage [V]	10...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed
Permanent current rating of switching output DC [mA]	150
Short-circuit protection	yes
Overload protection	yes

Response times

Response time [ms]	35

Software / programming

Parameter setting options	normally open / normally closed; PnP/nPn; statisch / dynamisch / bistabil / Ein- Ausschaltverzögerung; brightness; Aktivierungs- Operations- Inputfarbe; Sensitivität

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Type 0 Generic Profiled Sensor; Identification and Diagnosis; Fixed Switching Signal Channel
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	1
Min. process cycle time [ms]	3.5
Supported DeviceIDs	Type of operation DeviceID default 1002

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 65; IP 67; IP 69K;(on the front)

Tests / approvals

EMC	IEC 61000-4
MTTF [years]	318

Weight [g]	119.5
Dimensions [mm]	Ø 32 / L = 39
Materials	housing: stainless steel (1.4305 / 303); active face: PA Grilamid TR 90UV

Displays / operating elements

Display	1 x LED, blue / green / red / magenta / yellow / white / orange preset switching status green operation - function red

Accessories

Items supplied	lock nuts: 1 Gasket: 1
Accessories (optional)	symbol disc

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR
