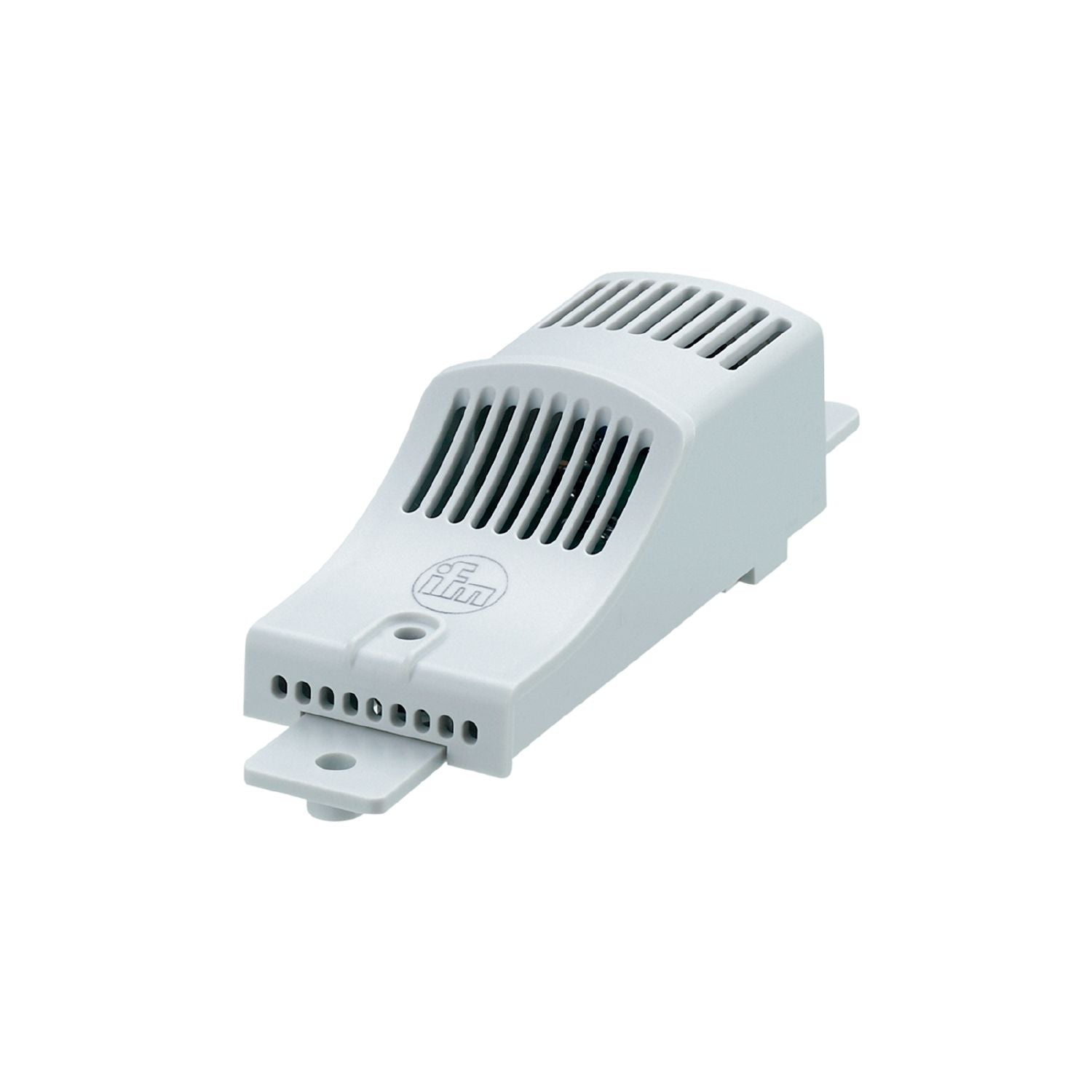

Simple monitoring of temperature and air humidity to protect electrical installations, control cabinets or production processes. Plug & Play thanks to screw or rail mounting and M12 connection
Number of inputs and outputs
Number of digital outputs: 1
Special feature
Gold-plated contacts
Operating voltage [V]
18...30 DC
Current consumption [mA]
13
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 1
Measuring principle
capacitive
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1
Outputs
Total number of outputs
1
Output signal
IO-Link
Number of digital outputs
1
Measuring/setting range
Measuring range [% RH]
0...100
Temperature measurement
Measuring range [°C]
-40...80
Accuracy / deviations
Accuracy [% RH]
3;(in the range 20...80 % RH)
Resolution [% RH]
0,1
Temperature measurement
Accuracy [K]
± 0,3
Resolution [K]
0.1
Response times
Response time [s]
< 30;(T90)
Temperature measurement
Response time [s]
< 300;(T90)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
Profiles
Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
SIO mode
no
Required master port type
A
Min. process cycle time [ms]
4.5
Supported DeviceIDs
Type of operation
DeviceID
default
1337
Operating conditions
Ambient temperature [°C]
-40...80
Note on ambient temperature
application humidity: ≤ 90 % RH
non condensing
Storage temperature [°C]
-40...85
Note on storage temperature
storage humidity: ≤ 90 % RH
non condensing
Protection
IP 20;(only sensor: IP 57)
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-4
MTTF [years]
195
UL approval
File number UL
E224228
Weight [g]
70
Type of mounting
DIN rail clip for 35 mm DIN rail (EN 60715); screw mounting;(M5)
Dimensions [mm]
140 x 40 x 38
Materials
plastics UL94 V-0; light grey
Installation position
vertical; connector facing upwards
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LDH292-00 — 13.04.2023 —
