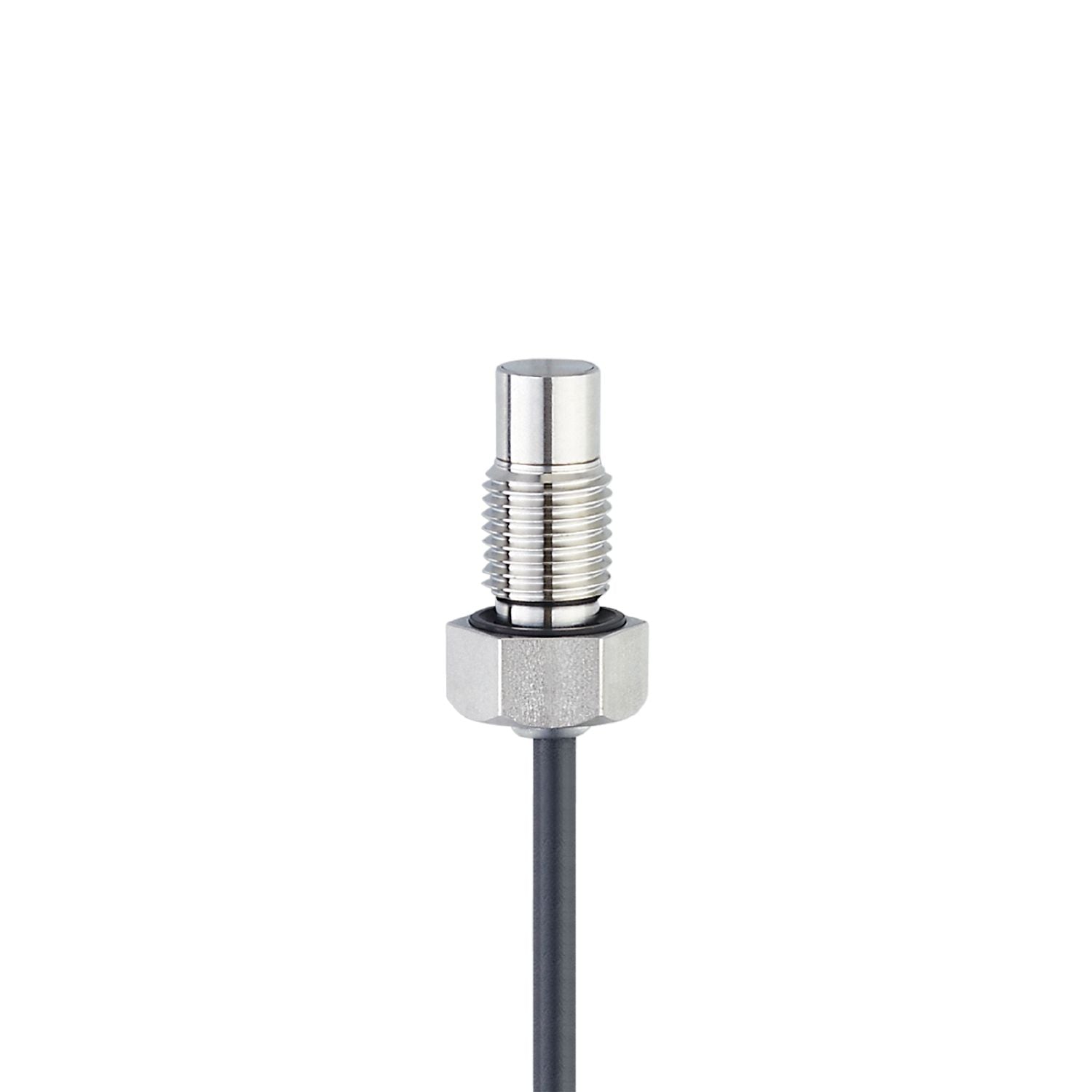

Pressure-resistant up to 500 bar. Metal sensing face for heavy duty. High bursting pressure. Housing design to industrial standard. Lifespan of more than 10 million pressure cycles
Electrical design
PNP
Output function
normally open
Sensing range [mm]
2
Housing
threaded type
Dimensions [mm]
M14 x 1.5 / L = 41
Special feature
Full-metal housing
Application
hydraulic cylinders
Media
detects ferrous metals
Min. bursting pressure [bar]
2000
Pressure rating [bar]
500
Operating voltage [V]
10...36 DC
Current consumption [mA]
< 23
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V]
1.6
Max. leakage current [mA]
0.1
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Sensing range [mm]
2
Accuracy / deviations
Hysteresis [% of Sr]
< 15
Switch point drift [% of Sr]
10
Repeatability [% of Sr]
10
Operating conditions
Pressure peak [bar]
1000
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 68; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
DIN ISO 11452-5
100 V/m
Vibration resistance
EN 60068-2-6 Fc
20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz -20...50 °C
Shock resistance
EN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -25...85 °C
Continuous shock resistance
EN 60068-2-27 Ea
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...50 °C
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — M9H202-01 — 22.11.2023 —
