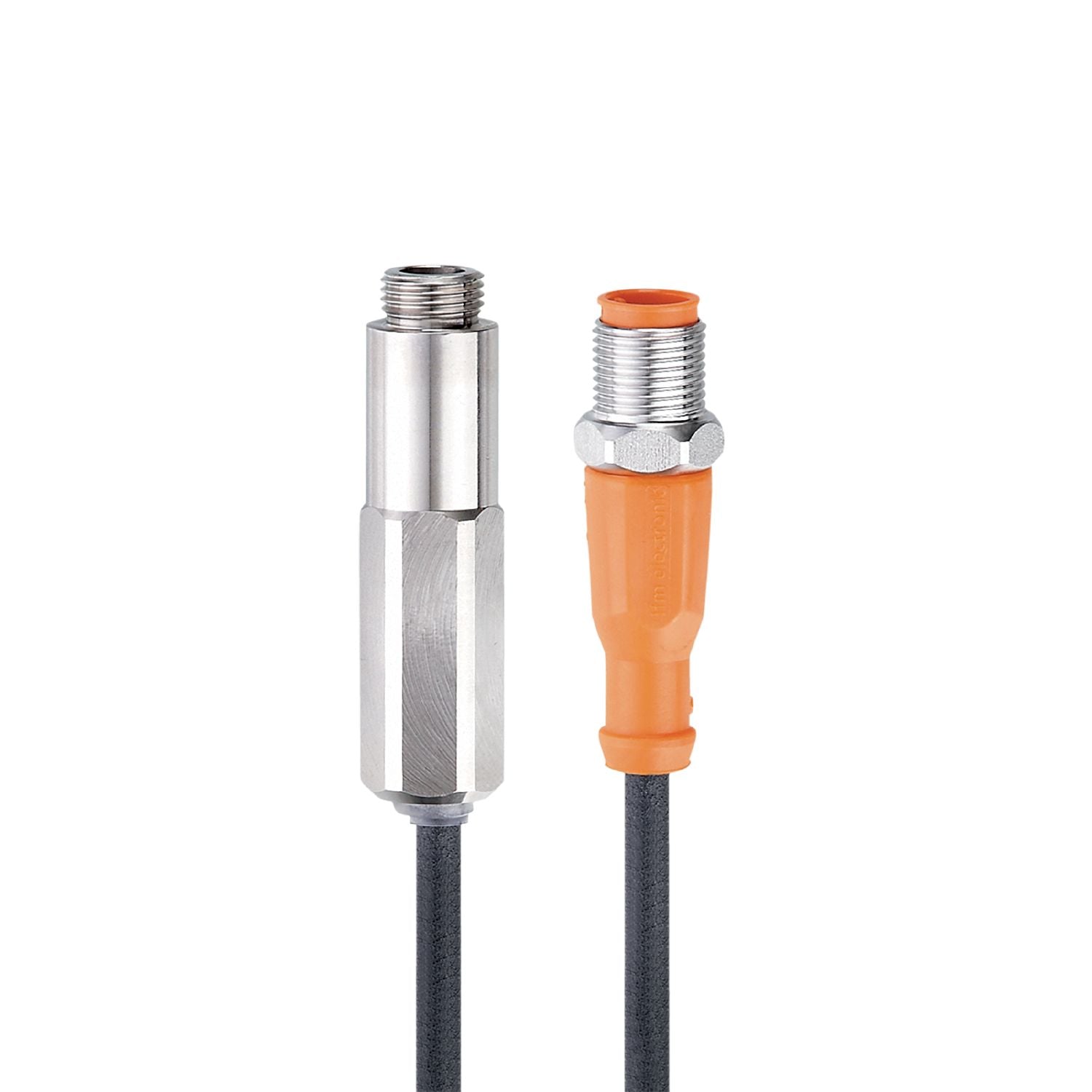

IFM M9H212 - Position sensor M9B3002-BPKG/B/AM/0,5M/ZH/US

Pressure-resistant up to 350 bar.
Designed for use in plunger detection.
Compact and robust stainless steel housing.
Spanner flat for easy mounting.
High shock and vibration resistance for mobile applications

Electrical design	PNP
Output function	normally open
Dimensions [mm]	M11 x 1 / L = 56.5

Application	lubricant distributor with plunger
Media	detects ferrous metals
Pressure rating [bar]	350

Operating voltage [V]	10...60 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	50
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Hysteresis [% of Sr]	3...15

Operating conditions

Ambient temperature [°C]	-25...70
Note on ambient temperature	Operating voltage: <60V
Ambient temperature [°C]	-40...85
Note on ambient temperature	Operating voltage: <45V for flexibly laid cable: -25 °C for firmly laid cable: -40 °C
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m 80...2000 MHz EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V 0,15...80 MHz EN 61000-4-8 30 A/m EN 55011 class B noise emission and noise interference according to the automotive directive 95/54/EC E1 type approval conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) pulse 12a 2b 3a 3b 4 severity level IIIIIIIIIIIIIIIIII failure criterion C B CA A C
Vibration resistance	EN 60068-2-6 Fc 50x 20 g / 10...3000 Hz -20 °C EN 60068-2-6 Fc 50x 20 g / 10...3000 Hz +50 °C
Shock resistance	EN 60068-2-27 Ea 3 x 100 g 11 ms / -25 °C EN 60068-2-27 Ea 3 x 100 g 11 ms / +85 °C
Continuous shock resistance	EN 60068-2-27 Ea 4000 x 40 g 6 ms / -20 °C / 50 °C
MTTF [years]	1181

Weight [g]	78.9
Mounting	flush mountable
Dimensions [mm]	M11 x 1 / L = 56.5
Thread designation	M11 x 1
Materials	sensing face: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L); end cap: TPU
Tightening torque [Nm]	< 18
Process connection	threaded connection M11 x 1 external thread

Displays / operating elements

Display	switching status LED, yellow

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PUR
	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — M9H212-01 — 02.11.2022 —
