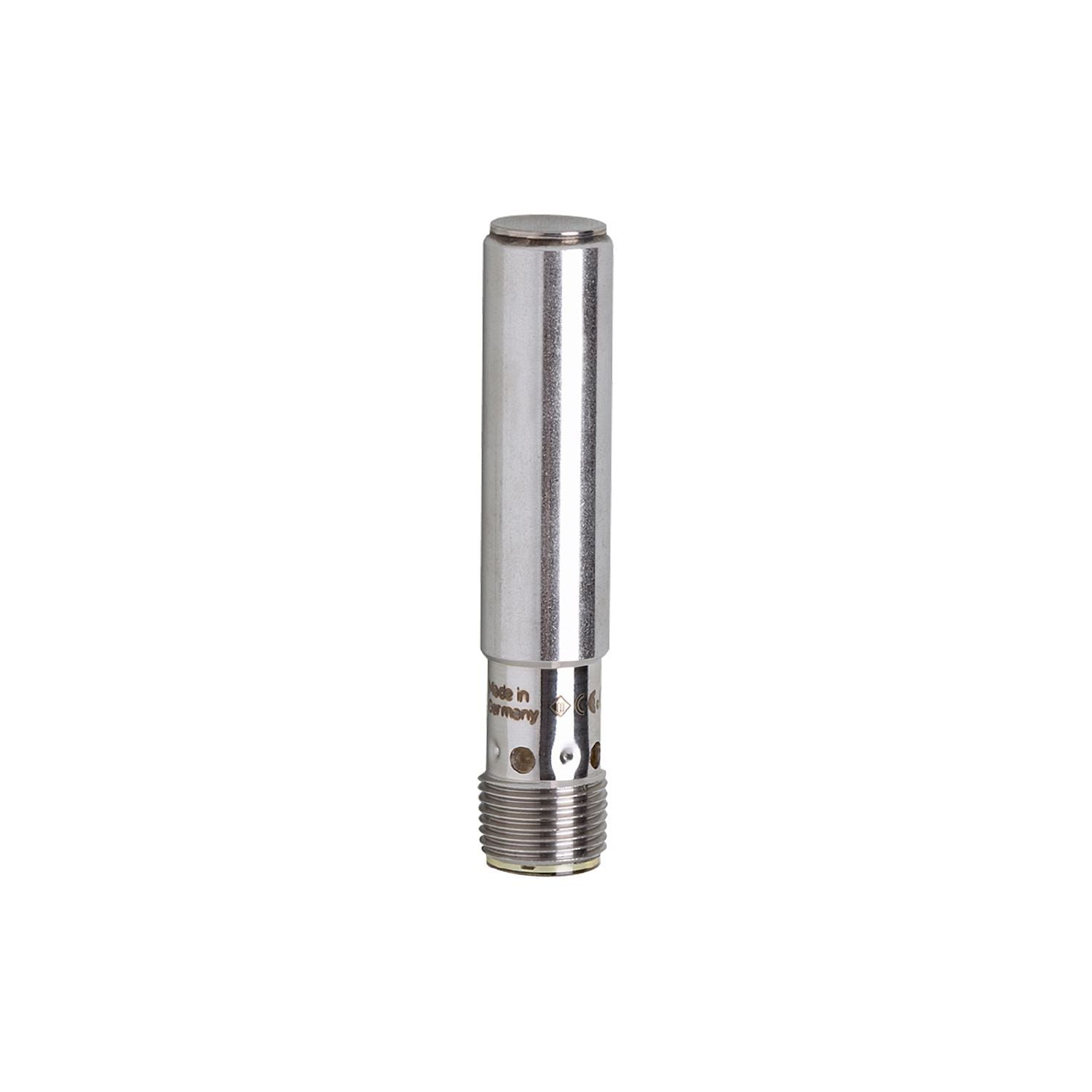

IFM MFT204 - Full-metal magnetic sensor MFG3060-BPKG/AM/V4A/G/US

Long sensing range even through non-magnetisable metals.
Temperature-stable and reproducible switch point.
High protection rating for the requirements of the food and beverage industry.
Wide operating temperature range.
Food-grade full-metal housing

Electrical design	PNP
Output function	normally open
Sensing range [mm]	60;(referred to magnet M 4.0)
Housing	cylindrical
Dimensions [mm]	Ø 12 / L = 60

Special feature	Gold-plated contacts; Full-metal housing
Pressure rating [bar]	100

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	5000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	60;(referred to magnet M 4.0)
Response sensitivity [mT]	1.3

Accuracy / deviations

Hysteresis [% of Sr]	1...10

Operating conditions

Ambient temperature [°C]	0...100
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 class B DIN ISO 11452-2 100 V/m

Weight [g]	21.5
Housing	cylindrical
Dimensions [mm]	Ø 12 / L = 60
Materials	housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L)
Full-metal housing	yes

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MFT204-00 — 13.04.2023 —
