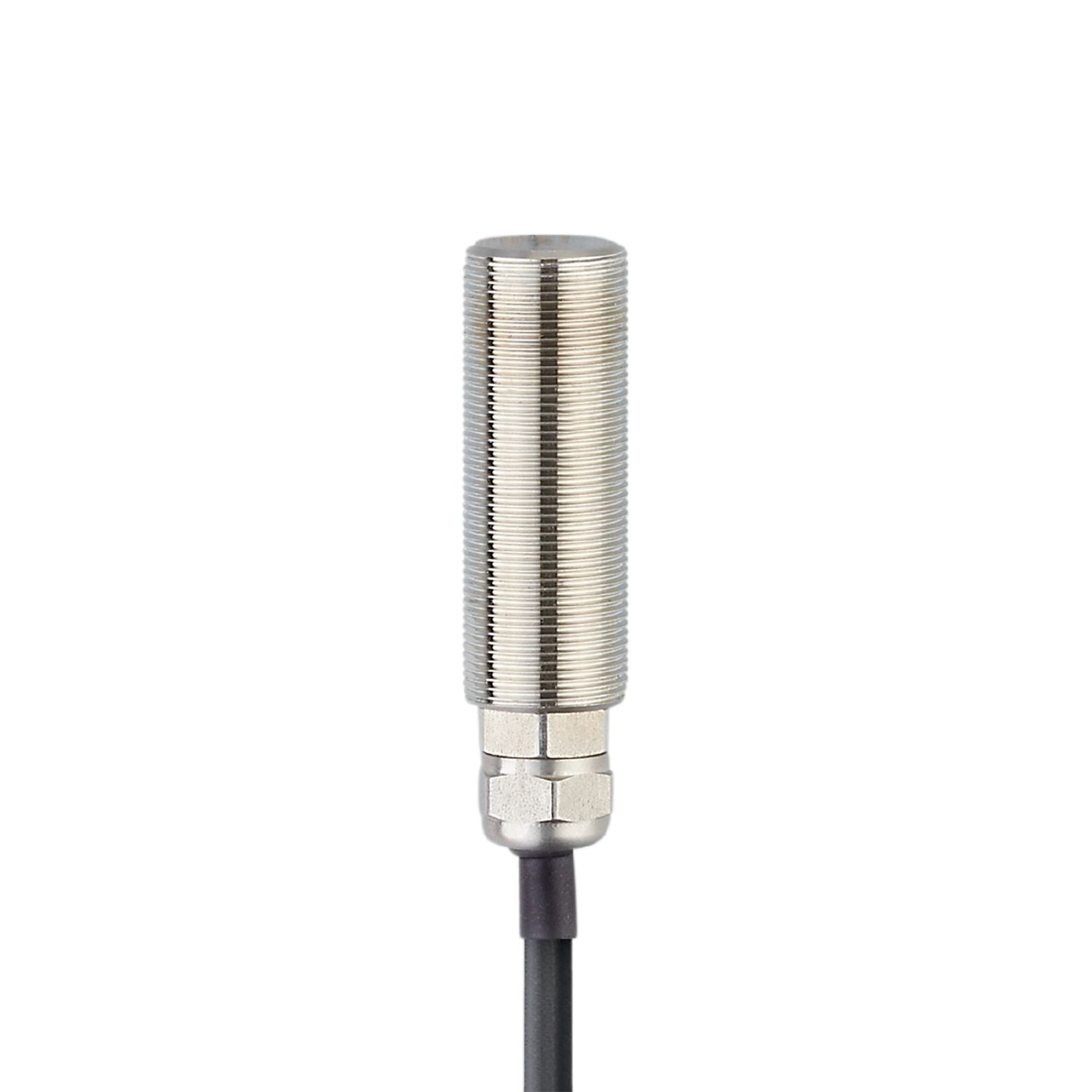

IFM MGT000 - Magnetic sensor MGK2030-AKOA/R/2M

Long sensing range even through non-magnetisable metals.
Temperature-stable and reproducible switch point.
High protection rating for the requirements of harsh industrial environments.
For use in high temperatures.
Robust metal face housing

Electrical design	PNP/NPN
Output function	normally open
Sensing range [mm]	25;(referred to magnet M 4.0)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 66

Special feature	Full-metal housing
Application	high-temperature applications

Operating voltage [V]	2...250 AC/DC
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Permanent current rating of switching output AC [mA]	1000
Permanent current rating of switching output DC [mA]	1000
Short-time current rating of switching output [mA]	1000
Max. switching power [W]	100
Short-circuit protection	no
Overload protection	no

Detection zone

Sensing range [mm]	25;(referred to magnet M 4.0)
Response sensitivity [mT]	7.5

Operating conditions

Ambient temperature [°C]	-40...180
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 1,0 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 class B
Shock resistance	EN 60947-5-1
Vibration resistance	EN 60947-5-1
MTTF [years]	57078

Weight [g]	212
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 66
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); lock nuts: brass
Tightening torque for cable gland [Nm]	5
Tightening torque [Nm]	50
Full-metal housing	yes

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, silicone; 2 x 0.75 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MGT000-00 — 13.04.2023 —
