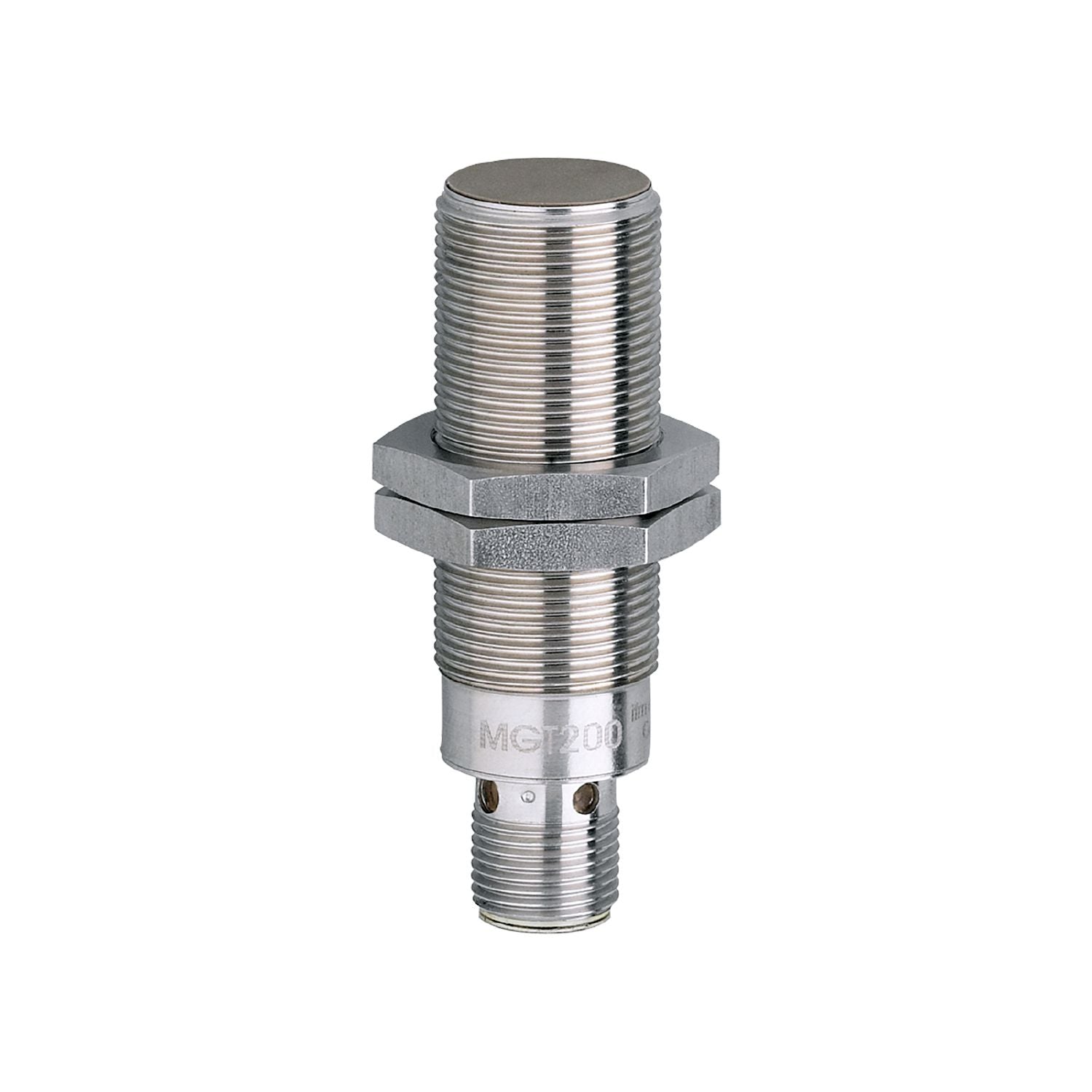

IFM MGT201 - Magnetic sensor MGK3100-BPKG/M/V4A/US-104-DPS

Long sensing range even through non-magnetisable metals: for pig detection.
Temperature-stable and reproducible switch point.
High protection rating for the requirements of the food and beverage industry.
Wide operating temperature range.
Food-grade full-metal housing

Electrical design	PNP
Output function	normally open
Sensing range [mm]	100;(referred to magnet M 4.0)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60

Special feature	Gold-plated contacts
Application	pig detection

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	100;(referred to magnet M 4.0)
Response sensitivity [mT]	0.3

Accuracy / deviations

Hysteresis [% of Sr]	1...10

Response times

Pulse stretching [ms]	1000

Operating conditions

Ambient temperature [°C]	0...104
Protection	IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	769

Weight [g]	47.3
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Remarks	voltage supply to EN50178, SELV, PELV
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
