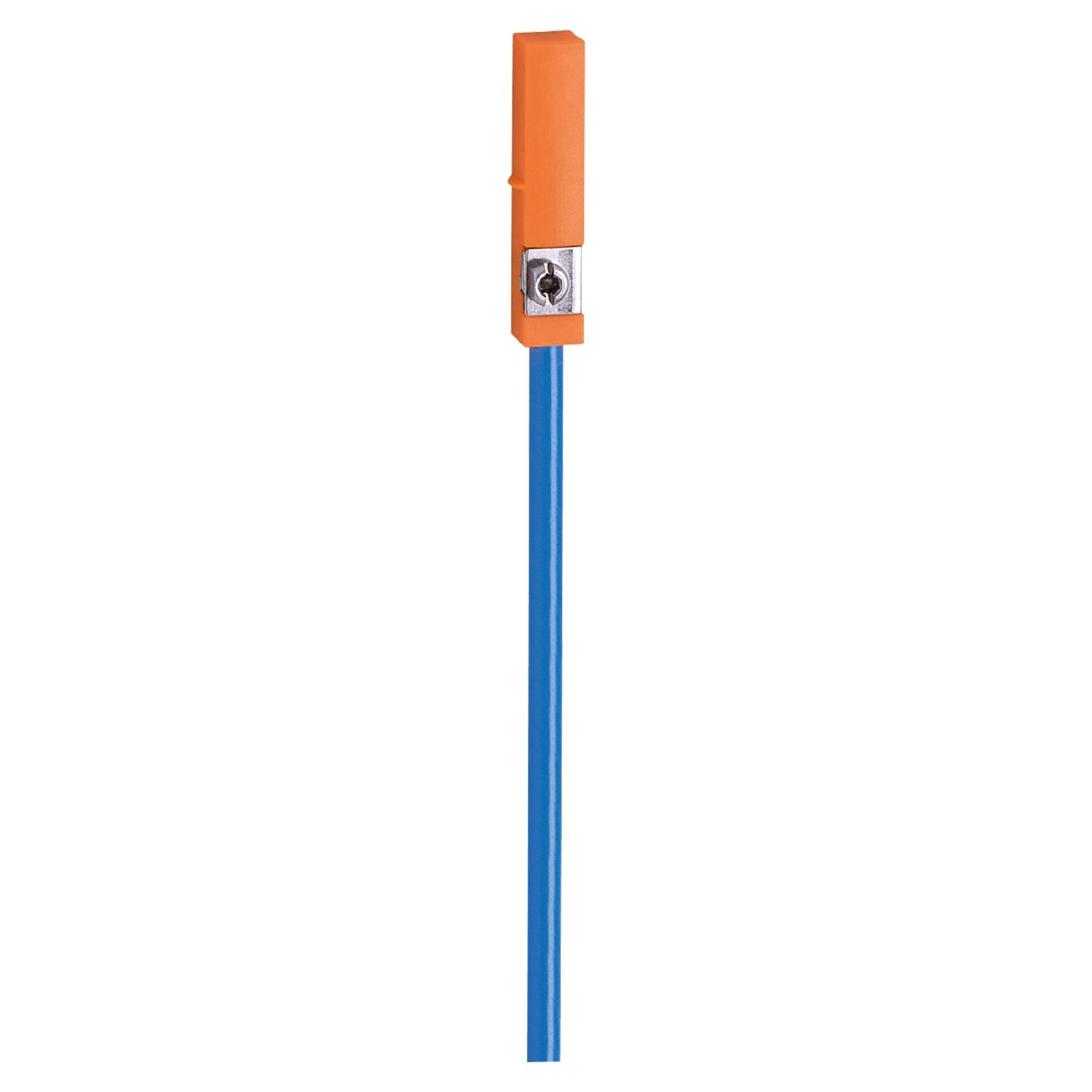

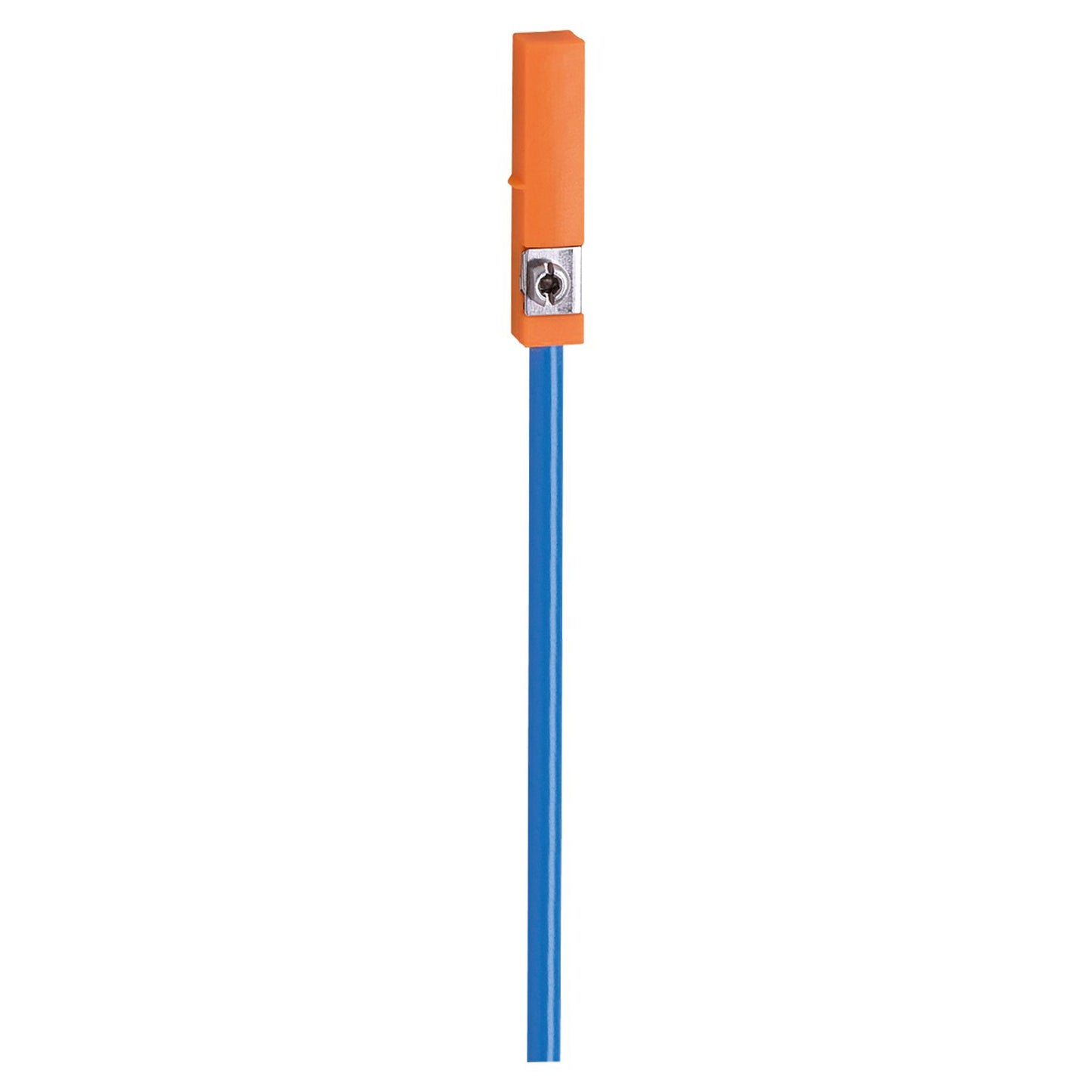

For applications in hazardous areas. For connection to intrinsically safe circuits. Exact position detection thanks to very small hysteresis. Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot
Electrical design
NAMUR
Output function
normally open
Dimensions [mm]
25 x 5 x 6.5
Connection to switching amplifiers
yes
Switching amplifiers
connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]
8.2
Current consumption [mA]
target not detected: ≤ 1; target detected: ≥ 2,2
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
NAMUR
Output function
normally open
Switching frequency DC [Hz]
2000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Response sensitivity [mT]
2
Travel speed [m/s]
> 10
Accuracy / deviations
Hysteresis [mm]
1
Repeatability [mm]
< 0.2
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 65; IP 67
Tests / approvals
Approval
BVS 09 ATEX E164; IECEx BVS 09.0065
ATEX marking
II 1G Ex ia IIC T4 Ga
II 1D Ex ia IIIC T135°C Da
EMC
EN 61000-4-2 ESD
- kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011 emission
class B
MTTF [years]
2142
Safety classification
Max. internal capacitance [nF]
140
Max. internal inductance [µH]
400
Weight [g]
93.9
Mounting
flush mountable
Type of mounting
fastening clamp with combined slot / hexagon socket, width across flats 1.5
