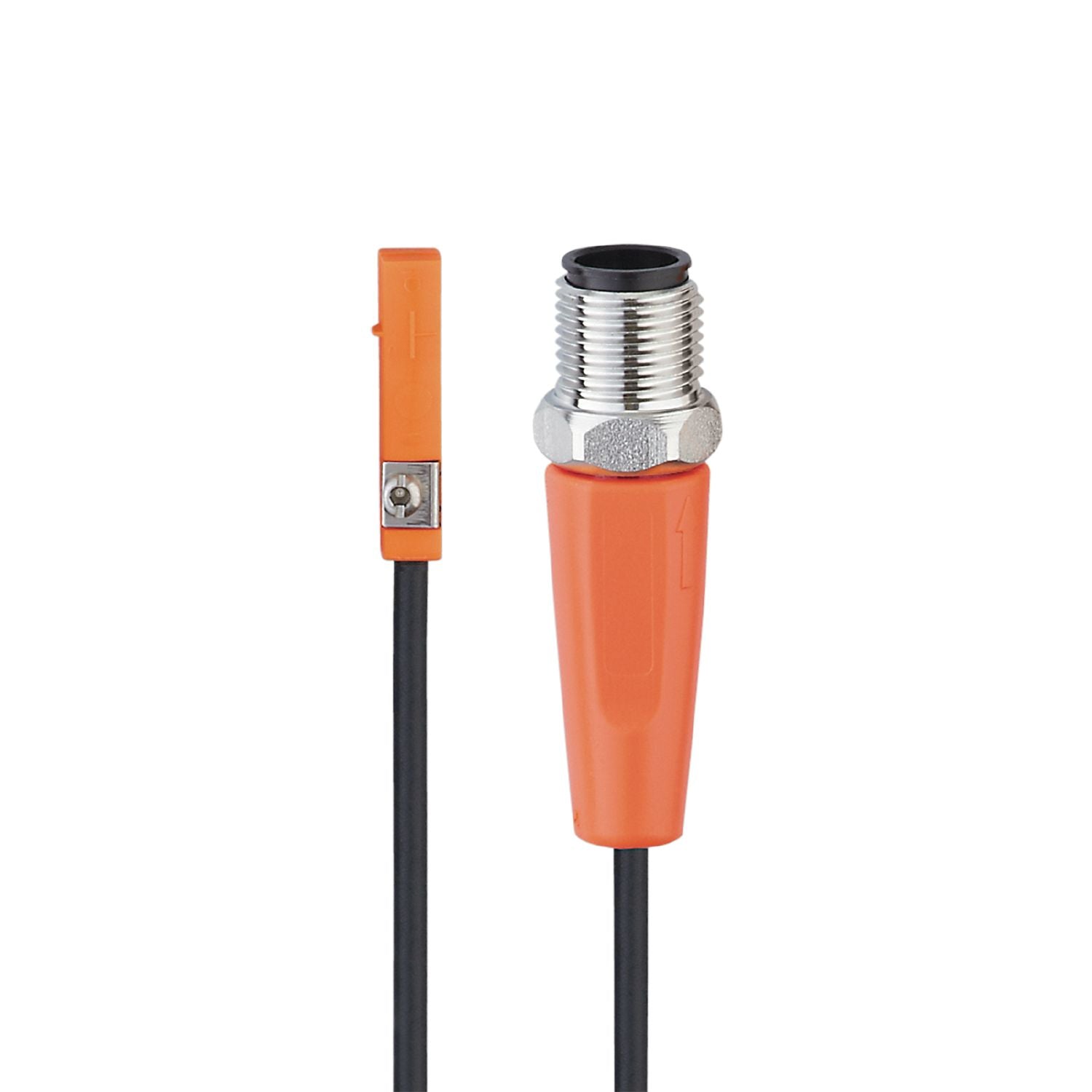

High protection rating for the requirements of the food and beverage industry. Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot. Moulded cable ensuring very good strain relief. Wide operating temperature range
Electrical design
PNP
Output function
normally open
Dimensions [mm]
25 x 5 x 6.5
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
30
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
10000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Response sensitivity [mT]
2.8
Travel speed [m/s]
> 10
Accuracy / deviations
Hysteresis [mm]
1.5
Repeatability [mm]
< 0.2
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
- CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]
2373
UL approval
Ta
-25...75 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current (Marking Class 2)
UL Approval no.
C003
File number UL
E174191
Weight [g]
20.9
Mounting
flush mountable
Type of mounting
fastening clamp with combined slot / hexagon socket, width across flats 1.5
