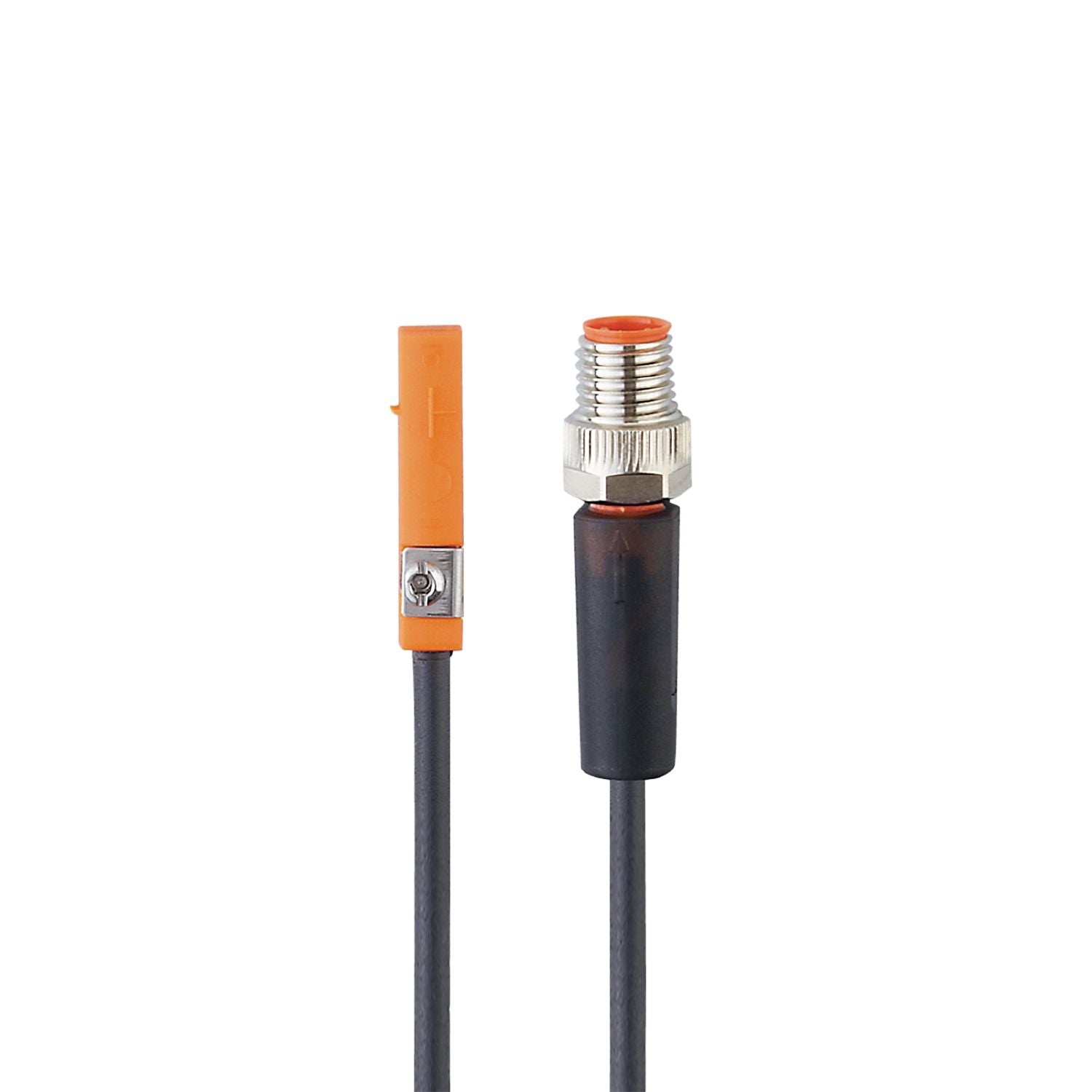

Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot. Moulded cable ensuring very good strain relief. Clearly visible indication of the switching status. Very high switching frequency
Electrical design
NPN
Output function
normally open
Dimensions [mm]
25 x 5 x 6.5
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
30
Outputs
Electrical design
NPN
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
10000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Response sensitivity [mT]
2.8
Travel speed [m/s]
> 10
Accuracy / deviations
Hysteresis [mm]
< 1.5
Repeatability [mm]
< 0.2
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
- CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]
3694
UL approval
UL Approval no.
C003
Weight [g]
14.6
Mounting
flush mountable
Type of mounting
fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type
T-slot cylinders
Dimensions [mm]
25 x 5 x 6.5
Materials
housing: PA; fastening clamp: stainless steel
Displays / operating elements
Display
switching status
1 x LED, yellow
Accessories
Items supplied
rubber placeholder: 1
Cable clip: 1
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Cable: 0.3 m, PUR
Connection
Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
