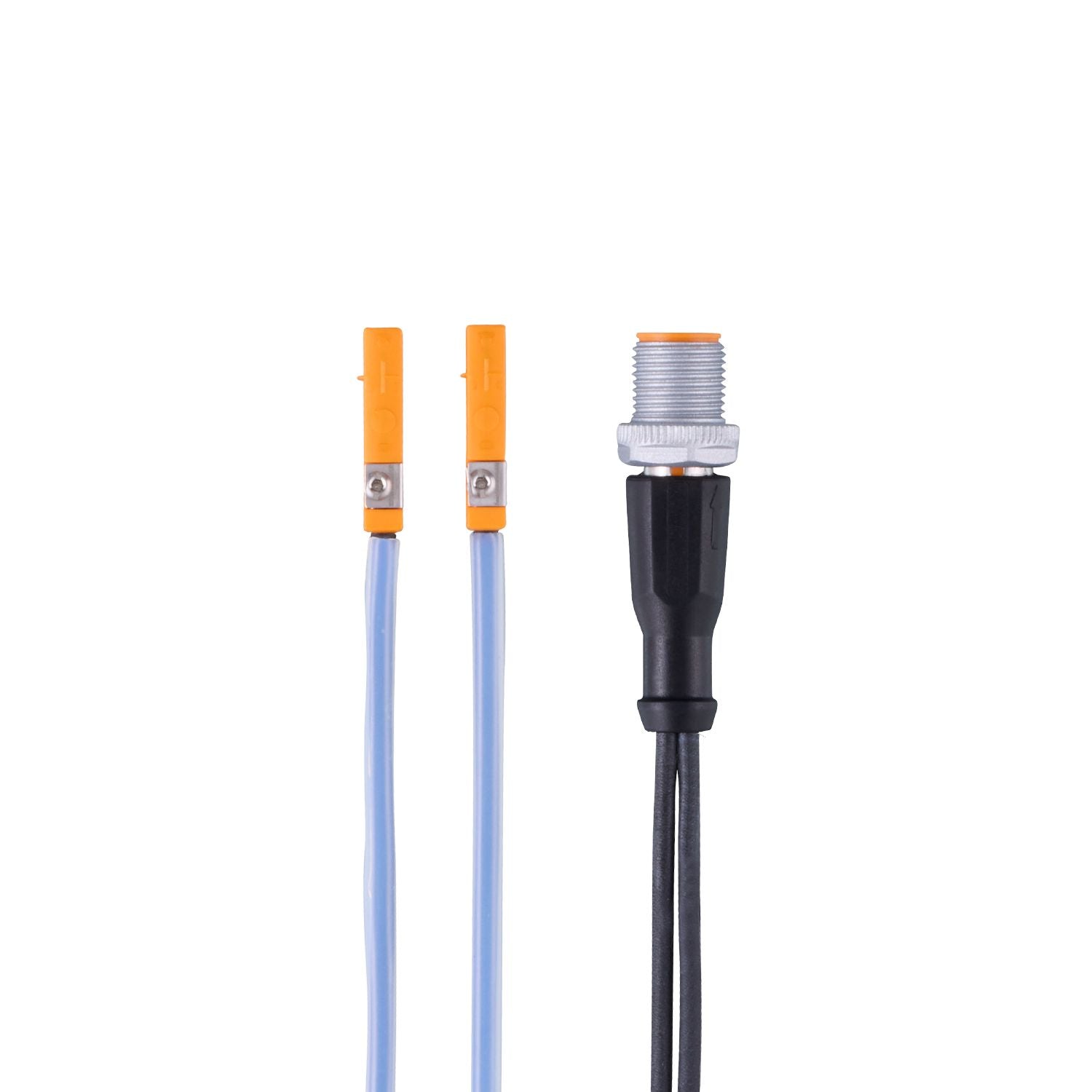

With suppression of extraneous fields for use in welding applications. Connector with non-stick coating. PTFE protective tube to prevent damage by weld splatter. Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot
Electrical design
PNP
Output function
normally open
Dimensions [mm]
25.3 x 5 x 6.5
Special feature
Magnetic-field immune
Operating principle
suppression of extraneous fields
Application
welding applications
Magnetic-field immune
yes
Max. magnetic field immunity [mT]
200
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
300
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
9
Short-circuit protection
yes
Overload protection
yes
Detection zone
Response sensitivity [mT]
1.5
Travel speed [m/s]
< 0.25
Accuracy / deviations
Hysteresis [mm]
< 1.5
Repeatability [mm]
< 0.2
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
- CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 6 shocks / 11 ms half-sine (x, y, z)
Weight [g]
30.4
Mounting
flush mountable
Type of mounting
fastening clamp with combined slot / hexagon socket, width across flats 1.5
Connector: 1 x M12; coding: A; Locking: knurled nut, rotatable
