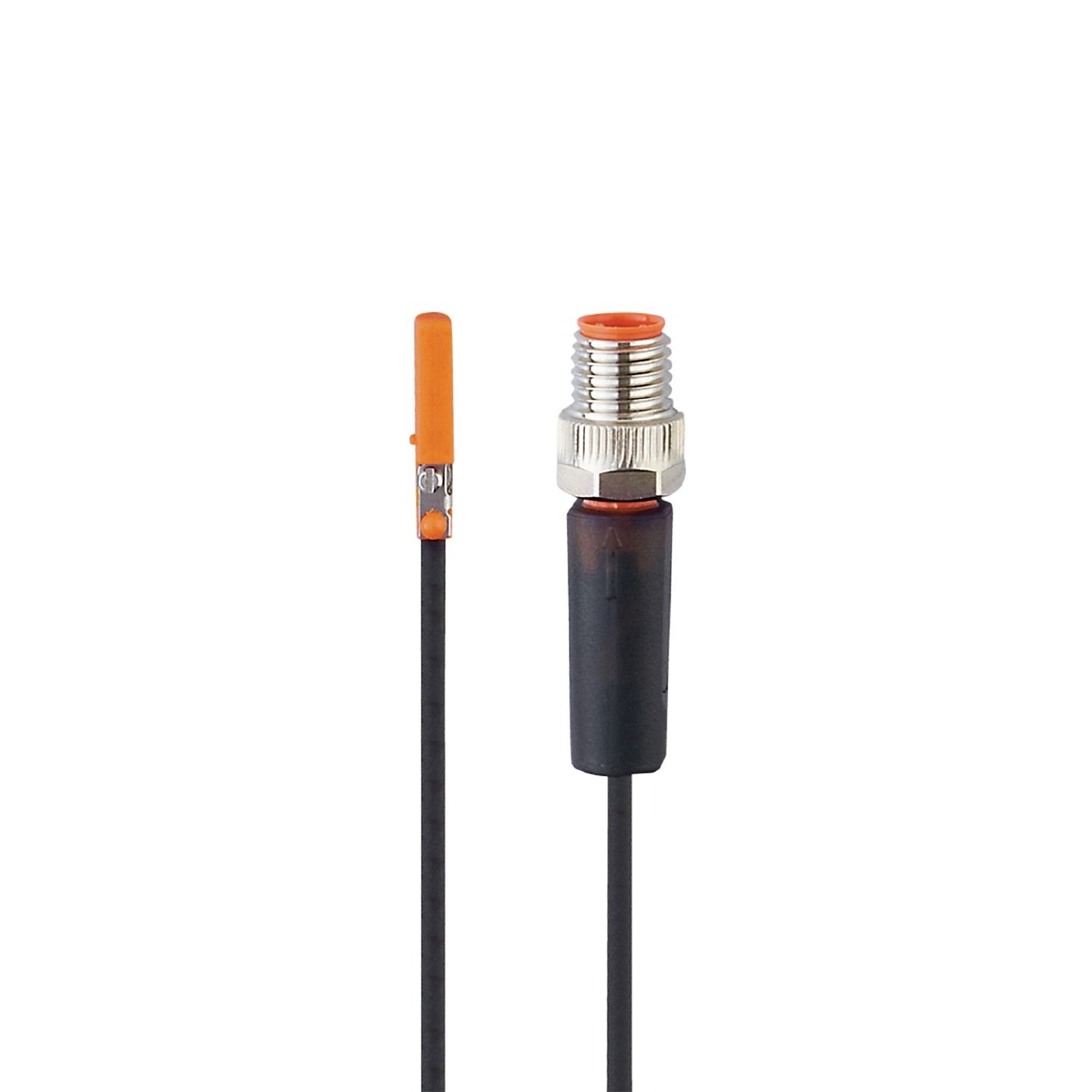

IFM MK5305 - C-slot cylinder sensor MKC3028-BPKG/G/0,5M/ZH/ASR

Self-locking fixture for quick mounting and easy adjustment.
Easy fit 'drop from the top' into a slot.
Moulded cable ensuring very good strain relief.
Clearly visible indication of the switching status.
Short housing for installation in short-stroke cylinders and small grippers

Electrical design	PNP
Output function	normally open
Dimensions [mm]	17.5 x 2.8 x 7.7

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	30

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Response sensitivity [mT]	2.8
Travel speed [m/s]	> 10

Accuracy / deviations

Hysteresis [mm]	1.5
Repeatability [mm]	< 0.2

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	3694
UL approval	UL Approval no. C008

Weight [g]	13.5
Mounting	non-flush mountable
Cylinder type	C-slot cylinders
Dimensions [mm]	17.5 x 2.8 x 7.7
Materials	housing: PA; fastening clamp: stainless steel

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.5 m, PUR
Connection	Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
