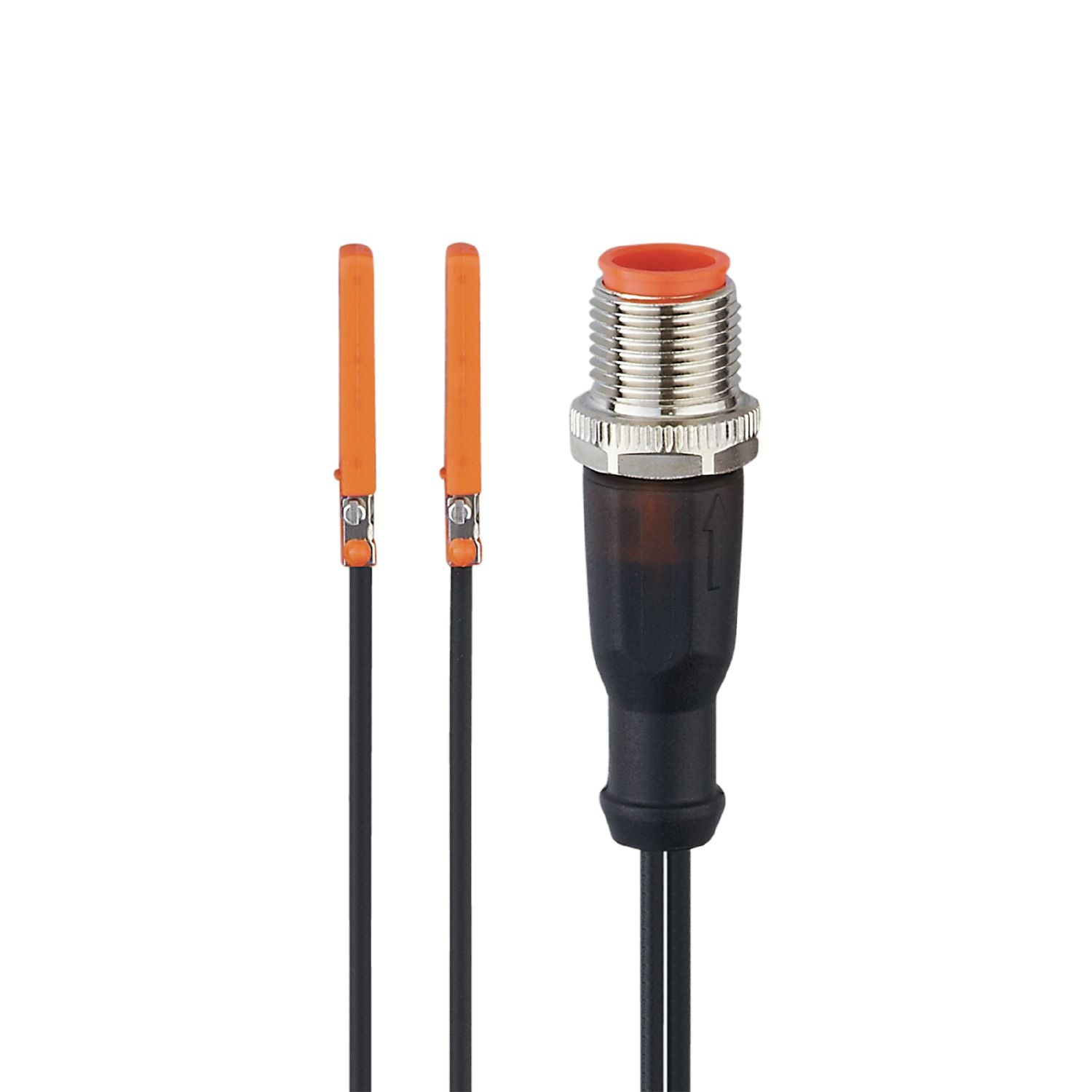

Exact position detection thanks to very small hysteresis. For exact switch point detection on short-stroke cylinders. Very high switching frequency. Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot
Electrical design
PNP
Output function
normally open
Dimensions [mm]
26.1 x 2.8 x 5.5
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
30
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
5000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Response sensitivity [mT]
2
Travel speed [m/s]
> 10
Accuracy / deviations
Hysteresis [mm]
1
Repeatability [mm]
< 0.2
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
- CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
Weight [g]
21.7
Mounting
flush mountable
Cylinder type
C-slot cylinders
Dimensions [mm]
26.1 x 2.8 x 5.5
Materials
housing: PA; fastening clamp: stainless steel
Tightening torque [Nm]
< 0.24
Displays / operating elements
Display
switching status
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Cable: 0.3 m, PUR
Connection
Connector: 1 x M12; coding: A; Locking: knurled nut, rotatable
