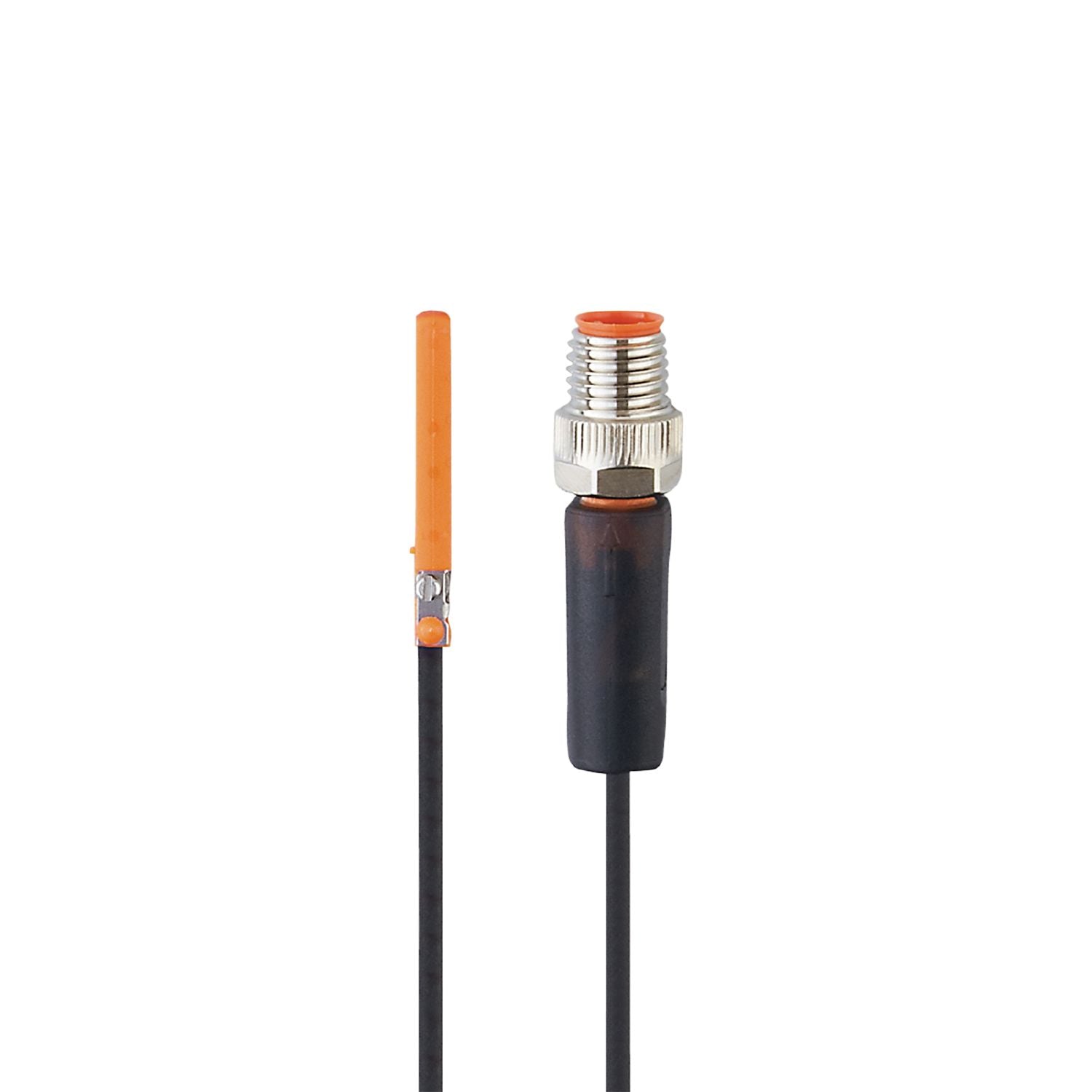

Patented mounting method with screw for stable position and strain relief. Space-saving cable with M8 connector
Electrical design
PNP
Output function
normally closed
Dimensions [mm]
26.1 x 2.8 x 5.5
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
30
Outputs
Electrical design
PNP
Output function
normally closed
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
10000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Response sensitivity [mT]
2.8
Travel speed [m/s]
> 10
Accuracy / deviations
Hysteresis [mm]
1.5
Repeatability [mm]
< 0.2
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 67
Tests / approvals
UL approval
Ta
-25...75 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current (Marking Class 2)
UL Approval no.
C008
File number UL
E174191
Weight [g]
12.3
Mounting
flush mountable
Cylinder type
C-slot cylinders
Dimensions [mm]
26.1 x 2.8 x 5.5
Materials
housing: PA; fastening clamp: stainless steel
Displays / operating elements
Display
switching status
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Cable: 0.3 m, PUR
Connection
Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5373-00 — 08.12.2020 —
