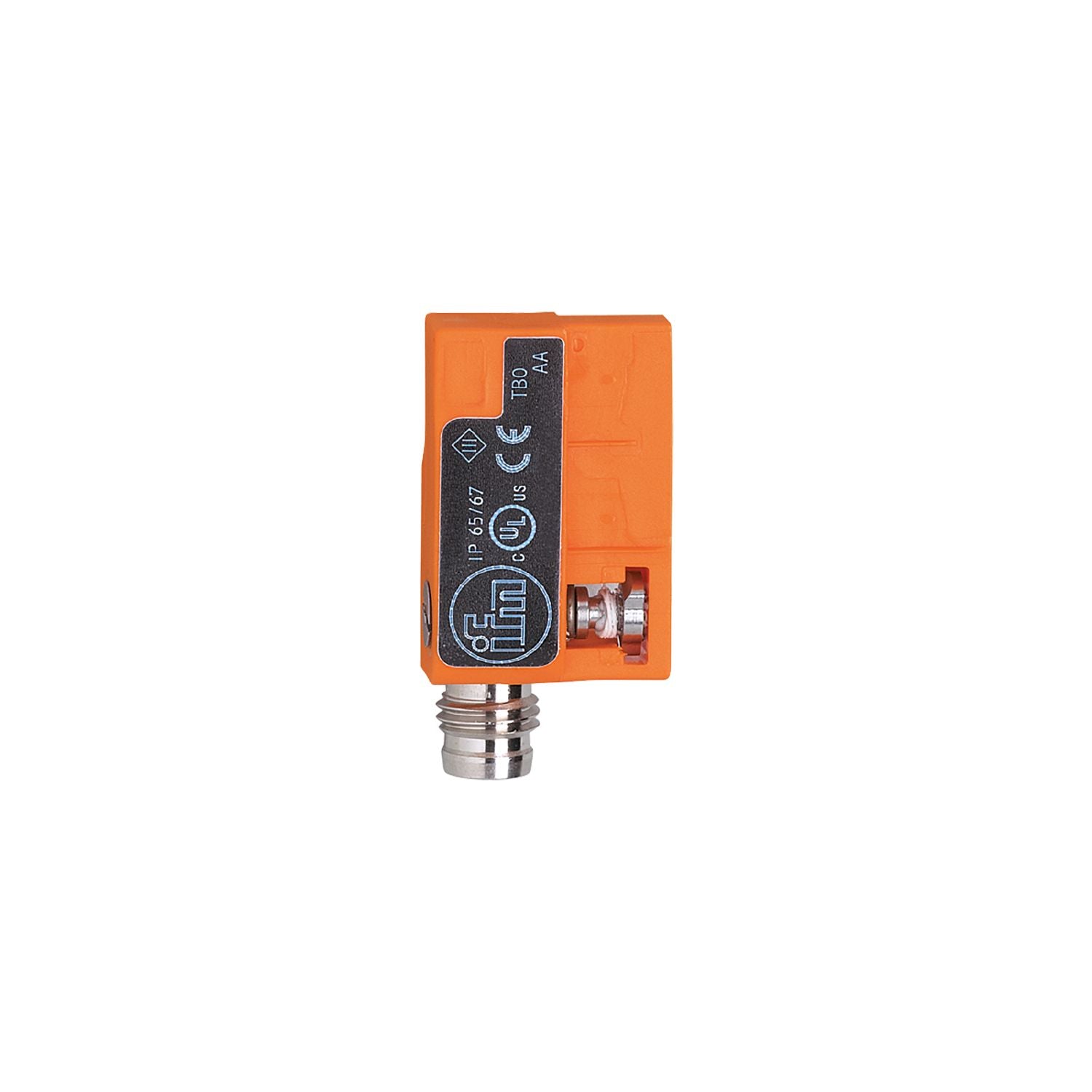

IFM MK5902 - T-slot cylinder sensor MKI3020-ANKG/A/AS

Self-locking fixture for quick mounting and easy adjustment.
Easy fit 'drop from the top' into a slot.
Fast wiring due to integrated M8 connector.
Exact position detection thanks to very small hysteresis.
Very high switching frequency

Electrical design	NPN
Output function	normally open
Dimensions [mm]	27.5 x 18 x 15.5

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	30

Outputs

Electrical design	NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	6000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Response sensitivity [mT]	2
Travel speed [m/s]	> 10

Accuracy / deviations

Hysteresis [mm]	< 1
Repeatability [mm]	< 0.2

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	1961

Weight [g]	12.5
Mounting	non-flush mountable
Type of mounting	fixing element with combined head slot / hexagon socket AF 1.5
Cylinder type	T-slot cylinders
Dimensions [mm]	27.5 x 18 x 15.5
Materials	housing: PA; Fixing element: stainless steel / brass

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	rubber placeholder: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A; Locking: snap-fit
