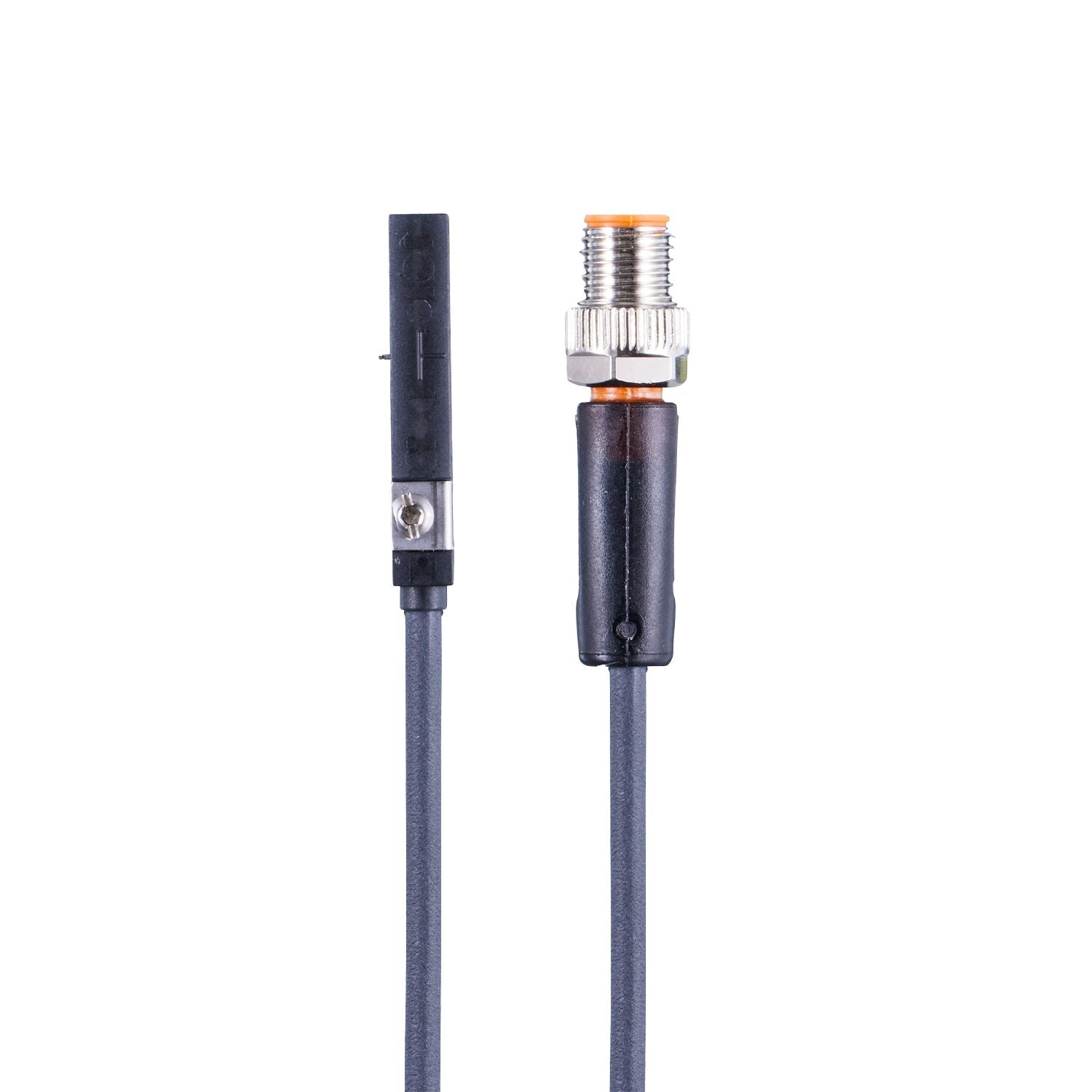

Only 1 sensor for 2 end positions for short-stroke cylinders. End position setting aid with second LED. Inline quality monitoring with 50 mm detection range
Electrical design
PNP/NPN;(parameterisable)
Output function
normally open / normally closed;(parameterisable)
Communication interface
IO-Link
Operating principle
Hall sensor;(3D function)
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 20
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
300
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Output signal
switching signal; IO-Link
Electrical design
PNP/NPN;(parameterisable)
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Max. leakage current [mA]
0.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
200
Type of short-circuit protection
pulsed
Short-circuit proof
yes
Overload protection
yes
Detection zone
Measuring range [mm]
50;(depending on the application)
Min. field strength [mT]
1
Accuracy / deviations
Hysteresis [mm]
1.25;(parameterisable)
Repeatability [mm]
< 0.2
Linearity error IO-Link [%]
< 5
Resolution [mm]
0,01;(depending on the application)
Software / programming
Parameter setting options
switch points; counter function; diagnostic function
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1.3
SDCI standard
IEC 61131-9 CDV
Profiles
Function class
Designation
0x0010
Measuring and Switching Sensor, 1 channel / SSP 4.1.1
0x4000
Identification and Diagnosis
0x8013
Object detection
0x8101
Locator
0x8102
ProductURI
SIO mode
yes
Required master port type
A
Supported DeviceIDs
Type of operation
DeviceID
default
1613
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2
- CD / 8 kV AD
EN 61000-4-3
10 V/m
EN 61000-4-4
2 kV
EN 61000-4-6
10 V
EN 55011
class B
Impact resistance
EN 60068-2-75 Ehc
1 J
Vibration resistance
EN 60068-2-6 Fc
20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
MTTF [years]
1088
UL approval
Ta
-25...75 °C
Enclosure type
Type 1
power supply
Class 2
UL Approval no.
C020
File number UL
E174191
Weight [g]
14.95
Type of mounting
fixing element with combined head slot / hexagon socket AF 1.5
Cylinder type
T-slot cylinders
Materials
housing: PA; fastening clamp: stainless steel
Displays / operating elements
Display
switching status
2 x LED, yellow SSC1.1 SSC1.2
operation
1x LED, green
Accessories
Items supplied
Cable clip 1x
rubber placeholder 1x
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Cable: 0.3 m, PUR, Ø 2.9 mm; 4 x 0.08 mm²
Connection
Connector: 1 x M8; coding: A; with knurled nut
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5907-01 — 08.08.2023 —
