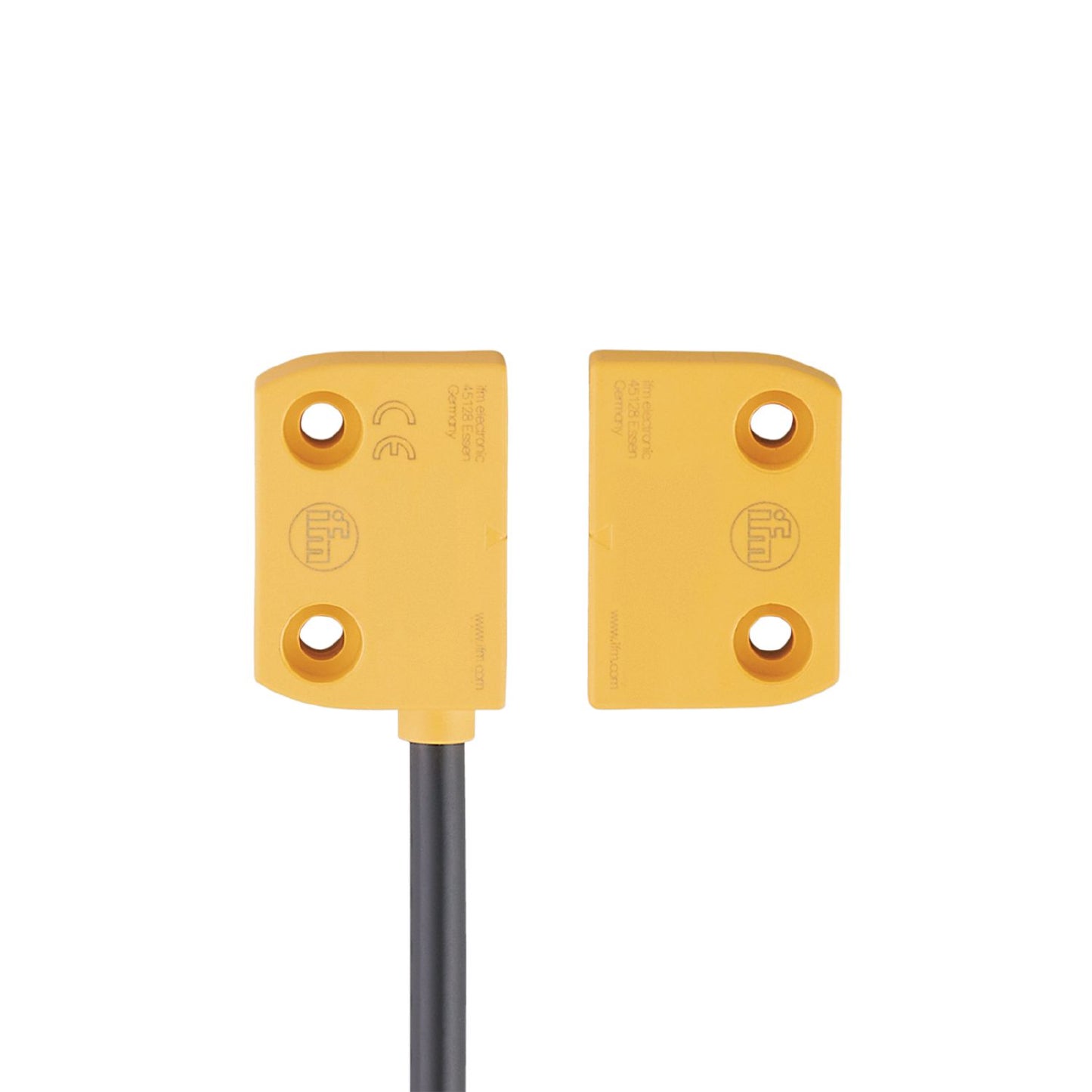

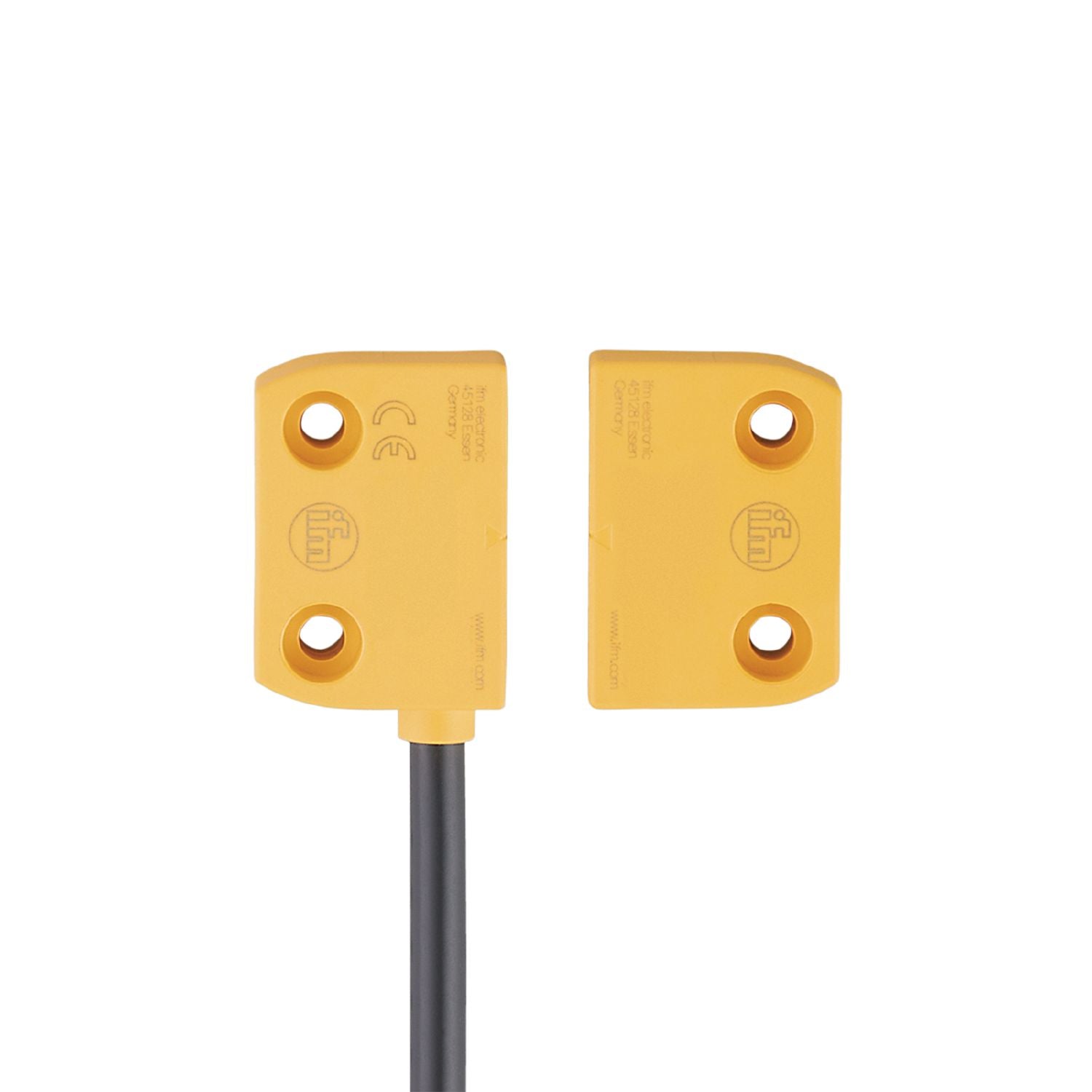

IFM MN205S - Magnetically coded sensor MN16005-AKOG/6m/-H

Actuation possible from different directions.
Conceal behind stainless steel for enhanced tamper prevention.
Meets the new interface description CB24I from ZVEI.
Highest security level according to ISO 13849-1 up to PL e in connection with an evaluation unit type G150xS / AC4x2S

Output function	2 x normally open, 1 x normally closed;(potential-free)
Sensing range [mm]	5;(with defined actuator)
Housing	rectangular
Dimensions [mm]	36 x 13 x 26

Design	coded target
Type of operation	permanent operation

Operating voltage [V]	24 DC
Rated insulation voltage [V]	60
Protection class	III
Reverse polarity protection	no
Internal resistance (Ri) [Ω]	10;(1 W)

Outputs

Output function	2 x normally open, 1 x normally closed;(potential-free)
Permanent current rating of switching output DC [mA]	50
Switching frequency DC [Hz]	150
Output data	Interface type A
Short-circuit proof	no
Max. capacitive load CL_max [nF]	20

Detection zone

Sensing range [mm]	5;(with defined actuator)
Safe switching-off distance s(ar) [mm]	15

Response times

Response time to safety request [ms]	10
Max. fall time [ms]	0.1
Max. make time incl. bounce [ms]	0.6

Operating conditions

Applications	class C to EN 60654-1 weatherproof application
Ambient temperature [°C]	-25...80
Ambient temperature [°C]	10...40
Note on ambient temperature	operational life ≤ 175200 h
Max. relative air humidity [%]	briefly: 5...95 %; permanent: 5...70 %
Air pressure [kPa]	80...106
Max. height above sea level [m]	2000
Salt spray	no
Protection	IP 67; IP 69K;(protected cable laying)

Tests / approvals

EMC	IEC 60947-5-1
Shock resistance	EN 60068-2-27 30 g (11 ms)
Vibration resistance	IEC 60068-2-6 10 g (10...55 Hz)

Safety classification

Mission time TM [h]	≤ 175200
Mission time TM (additional indication)	20 years
B10D	20.000.000;(without load; at max. load DC 12, 24 V, 50 mA: 400.000)

Weight [g]	413
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	36 x 13 x 26
Materials	PA
Tightening torque [Nm]	0.8...2

Accessories

Items supplied	coded target cover caps: 4

Remarks	In connection with a G150xS / AC4x2S type evaluation unit, it is possible to reach up to PL e (ISO 13849-1) or SIL cl 3 (IEC 62061)
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, PVC, Ø 5 mm; 6 x 0.25 mm²
