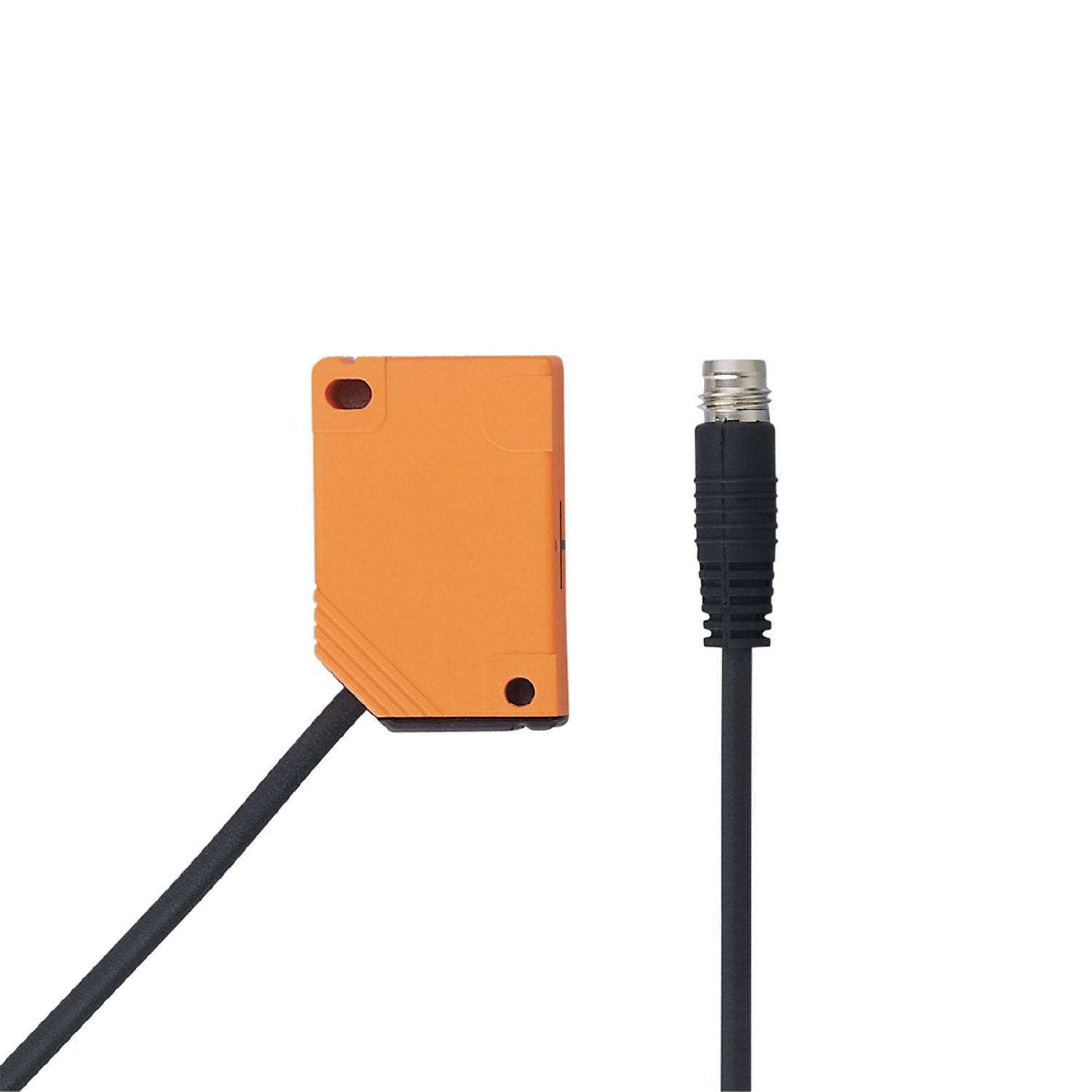

Long sensing range of 60 mm. High switching frequency for fast processes. Flush or non-flush mountable in non-magnetisable metals. Wide operating temperature range
Electrical design
PNP
Output function
normally open
Sensing range [mm]
60;(referred to magnet M 4.0)
Housing
rectangular
Dimensions [mm]
40 x 12 x 26
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
5000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Sensing range [mm]
60;(referred to magnet M 4.0)
Accuracy / deviations
Hysteresis [% of Sr]
1...10
Operating conditions
Ambient temperature [°C]
-40...75
Protection
IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
noise immunity according to DIN ISO 11452-2
100 V/m
MTTF [years]
1961
Weight [g]
29
Housing
rectangular
Dimensions [mm]
40 x 12 x 26
Materials
housing: PBT
Displays / operating elements
Display
switching status
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Cable: 0.15 m, PUR; 3 x 0.34 mm²
Connection
Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MN5200-00 — 13.04.2023 —
