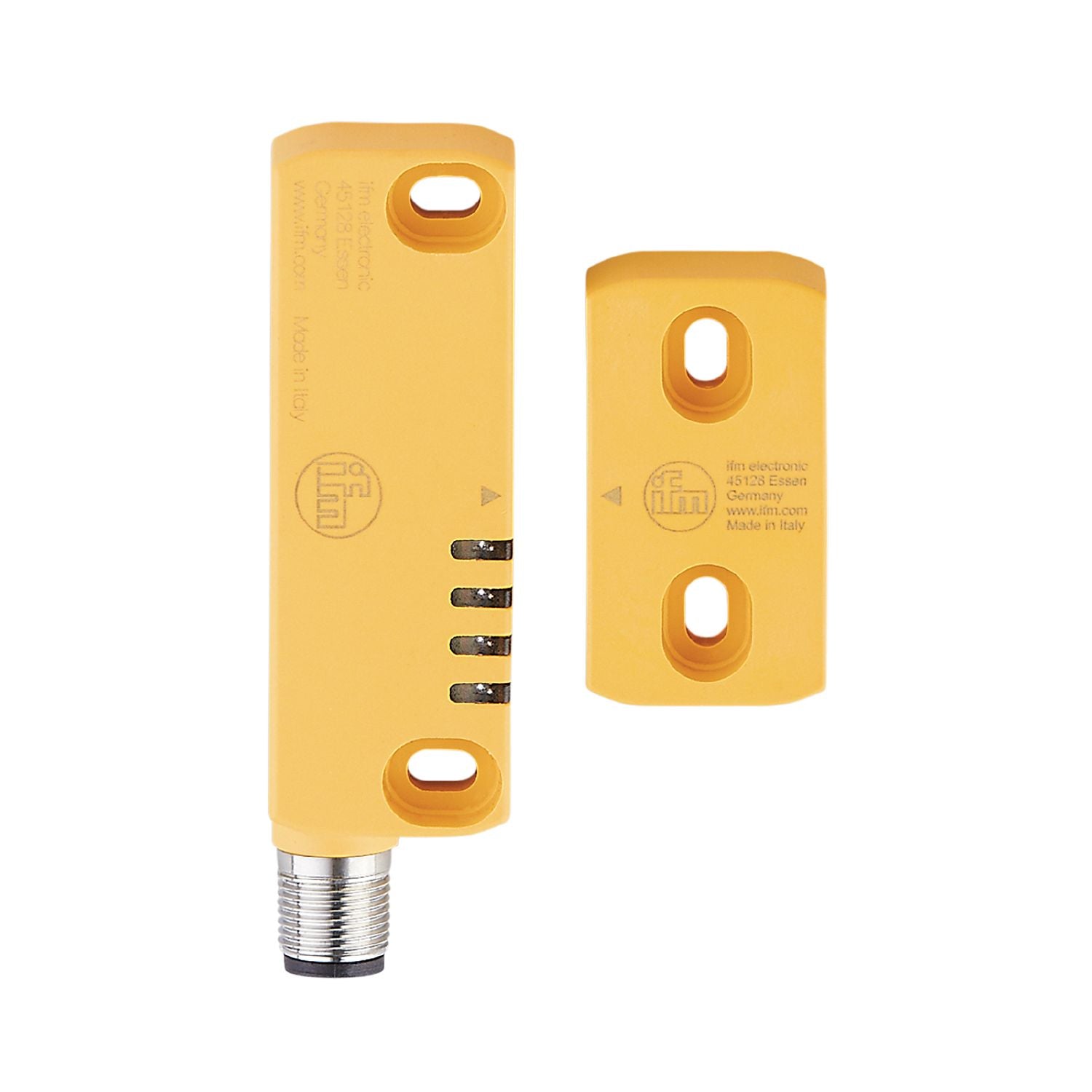

IFM MN701S - RFID-coded safety sensor MN38010-BPKG/UC/US

Electrical design	PNP
Output function	2 x OSSD, 1 x PNP
Sensing range [mm]	12;(with defined actuator)
Housing	rectangular
Dimensions [mm]	72 x 18 x 25

Design	uniquely fully coded target
Type of operation	permanent operation
Radio approval for	USA; Canada; Australia; EU/RED; China; Singapore
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	20.4...26.4 DC
Rated insulation voltage [V]	32
Operating current [mA]	40...700
No-load current [mA]	30
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	1500

Operating frequency [MHz]	0,125
Transmission power ERP [mW]	0.0002245

Outputs

Electrical design	PNP
Output function	2 x OSSD, 1 x PNP
Max. leakage current [mA]	0.5
Permanent current rating of switching output DC [mA]	50
Switching frequency DC [Hz]	1
Output data	interface type C class 2
Short-circuit protection	yes
Overload protection	yes
Max. capacitive load CL_max [nF]	200

Detection zone

Sensing range [mm]	12;(with defined actuator)
Safe switching-off distance s(ar) [mm]	16

Accuracy / deviations

Hysteresis [%]	20
Repeatability analogue output [%]	≤ 10;(% Sn)

Response times

Response time to safety request [ms]	160
Response time when approaching the enable zone [ms]	600

Operating conditions

Applications	class C to EN 60654-1 weatherproof application
Ambient temperature [°C]	-25...70
Note on ambient temperature	operational life ≤ 87600 h
Ambient temperature [°C]	10...40
Note on ambient temperature	operational life ≤ 175200 h
Max. relative air humidity [%]	briefly: 5...95 %; permanent: 5...70 %
Air pressure [kPa]	80...106
Max. height above sea level [m]	2000
Ionising radiation	not permissible
Salt spray	no
Protection	IP 65; IP 67

Tests / approvals

EMC	IEC 60947-5-3
Shock resistance	EN 60068-2-27 30 g (11 ms)
Vibration resistance	IEC 60068-2-6 10 g (10...55 Hz)

Safety classification

Complies with the requirements	ISO 13849-1: 2015 category 4, PL e IEC 62061 SIL 3
Mission time TM [h]	≤ 175200
Mission time TM (additional indication)	20 years
PFH [1/h]	1,5E-09

Weight [g]	176.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	72 x 18 x 25
Materials	PA
Tightening torque [Nm]	0.8...2

Displays / operating elements

Display	function 1 x LED, (ACT) input 1 x LED, (IN) Output 1 x LED, (OUT) operation 1 x LED, (PWR)

Accessories

Items supplied	uniquely fully coded target washers: 4 cover caps: 8

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: stainless steel (1.4301 / 304)
