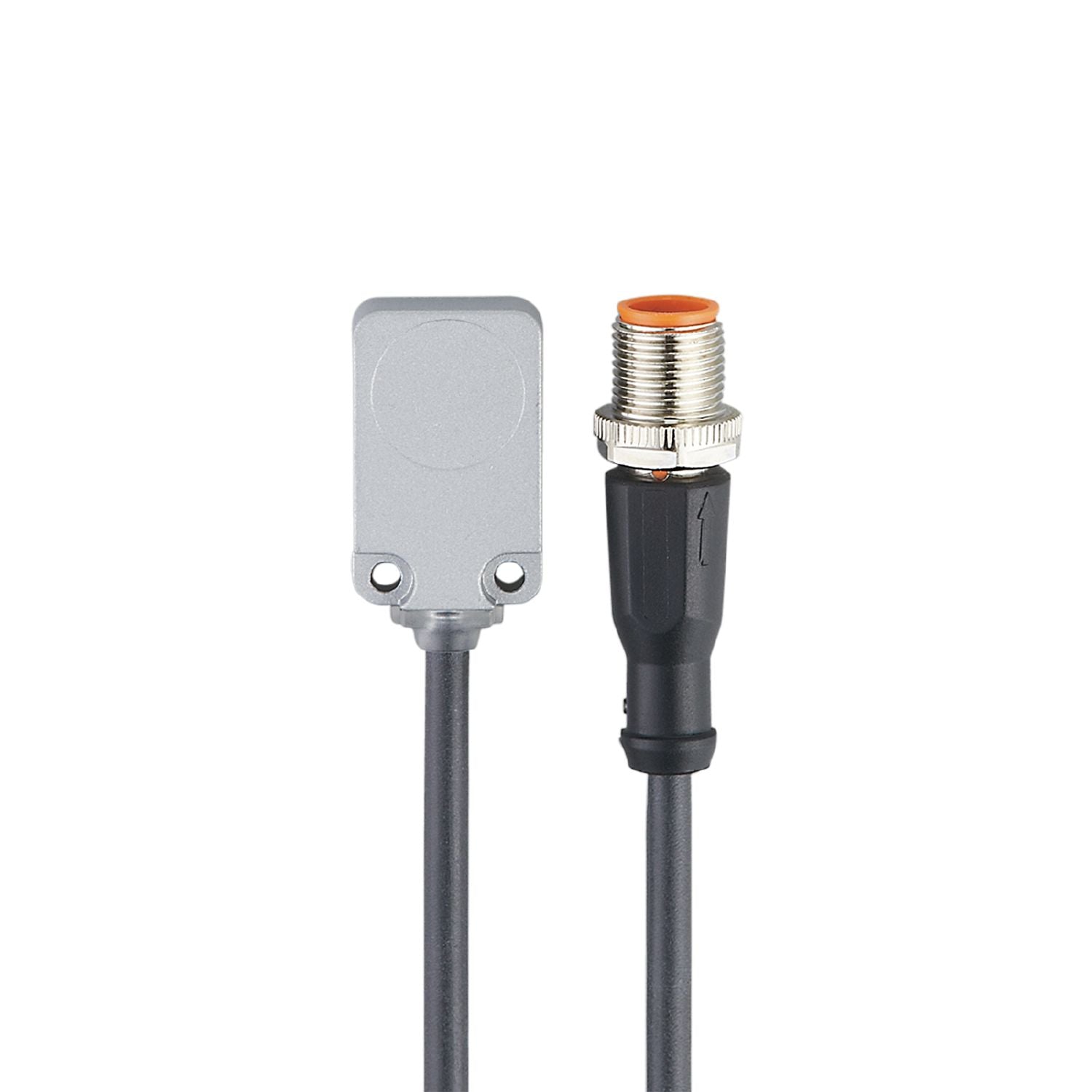

IFM MQ2004 - Magnetic sensor MQ23005BFRKG/B/AM/IO/WFI/0,3M/ZH/US

Resistant to weld slag thanks to non-stick coating.
Reliable wear notification when sensing range decreases.
Indication of the degree of soiling for preventive maintenance.
Robust and impact resistant thanks to active face made of metal.
Particularly space-saving design for use where space is restricted

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Sensing range [mm]	5
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	20 x 8 x 32

Special feature	anti-spatter
Media	ferrous only

Operating voltage [V]	10...30 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	100
Short-time current rating of switching output [mA]	100
Switching frequency DC [Hz]	200
Notes on switching frequency [Hz]	suppression of extraneous fields: 10
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	5
Real sensing range Sr [mm]	5 ± 10 %
Operating distance [mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1
Hysteresis [% of Sr]	< 10
Switch point drift [% of Sr]	-10...20
Repeatability [% of Sr]	10

Software / programming

Parameter setting options	hysteresis / window; switch-off delay; weld-field immunity; switch-on operations; Auto-teach

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	9.6
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 4
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 829
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-30...85
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Vibration resistance	EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance	EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
MTTF [years]	1976
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. C010 File number UL E174191

Weight [g]	45
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	20 x 8 x 32
Materials	diecast zinc anti-spatter; LED window: TPU; potting: PUR

Displays / operating elements

Display	Display operation 1 x LED, green switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, Ø 4.9 mm; flame-retardant (IEC 60332-2, UL: FT2)
Connection	Connector: 1 x M12; coding: A; Locking: knurled nut, rotatable

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MQ2004-01 — 13.04.2023 —
