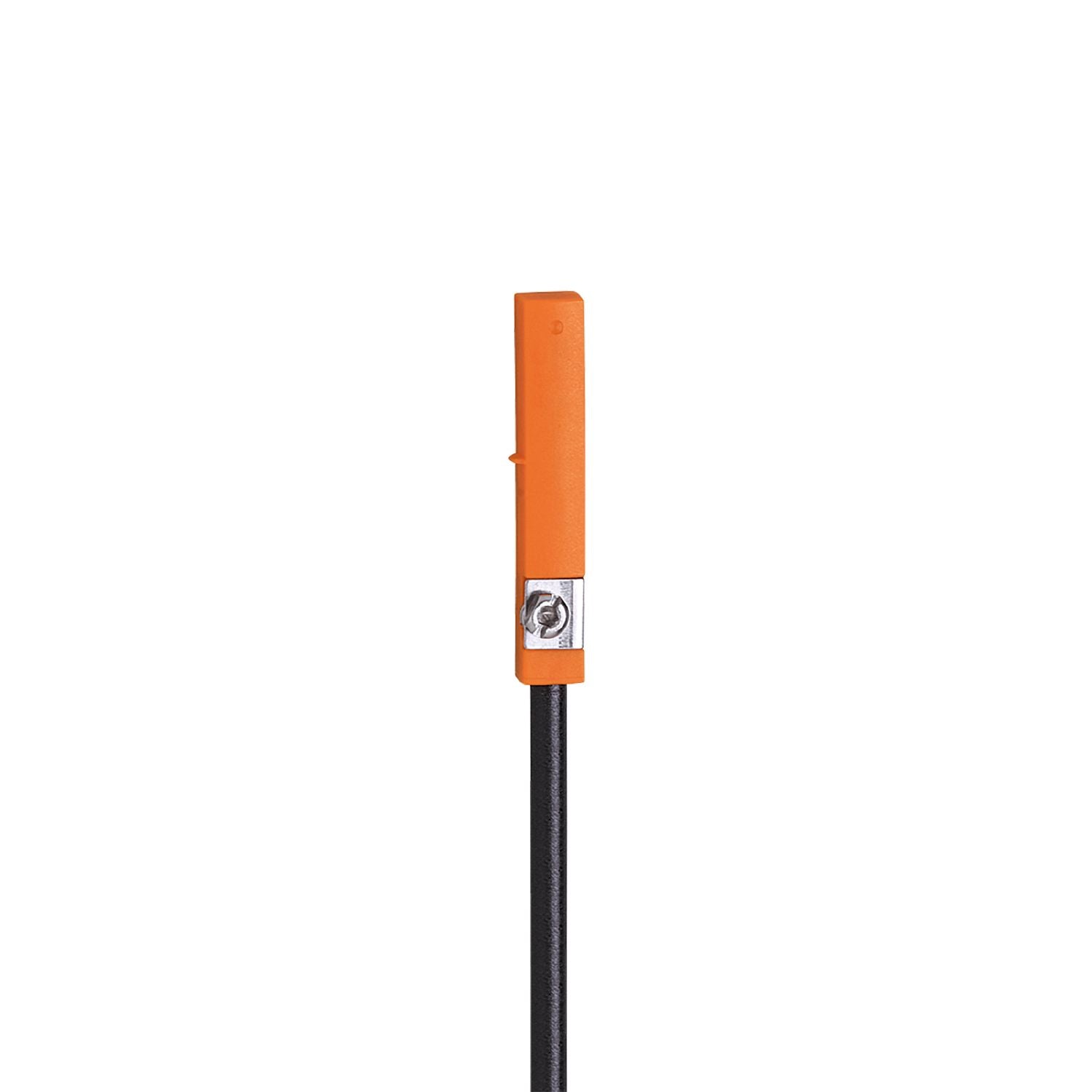

Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot. Moulded cable ensuring very good strain relief. For applications in hazardous areas. Very high switching frequency
Electrical design
NAMUR
Output function
normally open
Dimensions [mm]
30.5 x 5 x 6.5
Connection to switching amplifiers
yes
Switching amplifiers
connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]
8.2
Current consumption [mA]
target not detected: ≤ 1; target detected: ≥ 2,2
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
NAMUR
Output function
normally open
Short-circuit protection
no
Overload protection
no
Detection zone
Response sensitivity [mT]
2.1
Travel speed [m/s]
10
Accuracy / deviations
Hysteresis [mm]
1
Repeatability [mm]
< 0.2
Response times
Max. fall time [ms]
0.1
Max. make time incl. bounce [ms]
0.6
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 65; IP 67
Tests / approvals
Approval
BVS 09 ATEX E164; IECEx BVS 09.0065
ATEX marking
II 1G Ex ia IIC T4 Ga
II 1D Ex ia IIIC T135°C Da
EMC
EN 61000-4-2 ESD
- kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011 emission
class B
MTTF [years]
21140
Safety classification
Max. internal capacitance [nF]
10
Max. internal inductance [µH]
400
Weight [g]
91.2
Mounting
flush mountable
Cylinder type
T-slot cylinders
Dimensions [mm]
30.5 x 5 x 6.5
Materials
housing: PA; fastening clamp: stainless steel
Displays / operating elements
Display
switching status
1 x LED, yellow
Accessories
Items supplied
rubber placeholder: 1
Cable clip: 1
Remarks
No LED function in case of polarity reversal in DC operation.
