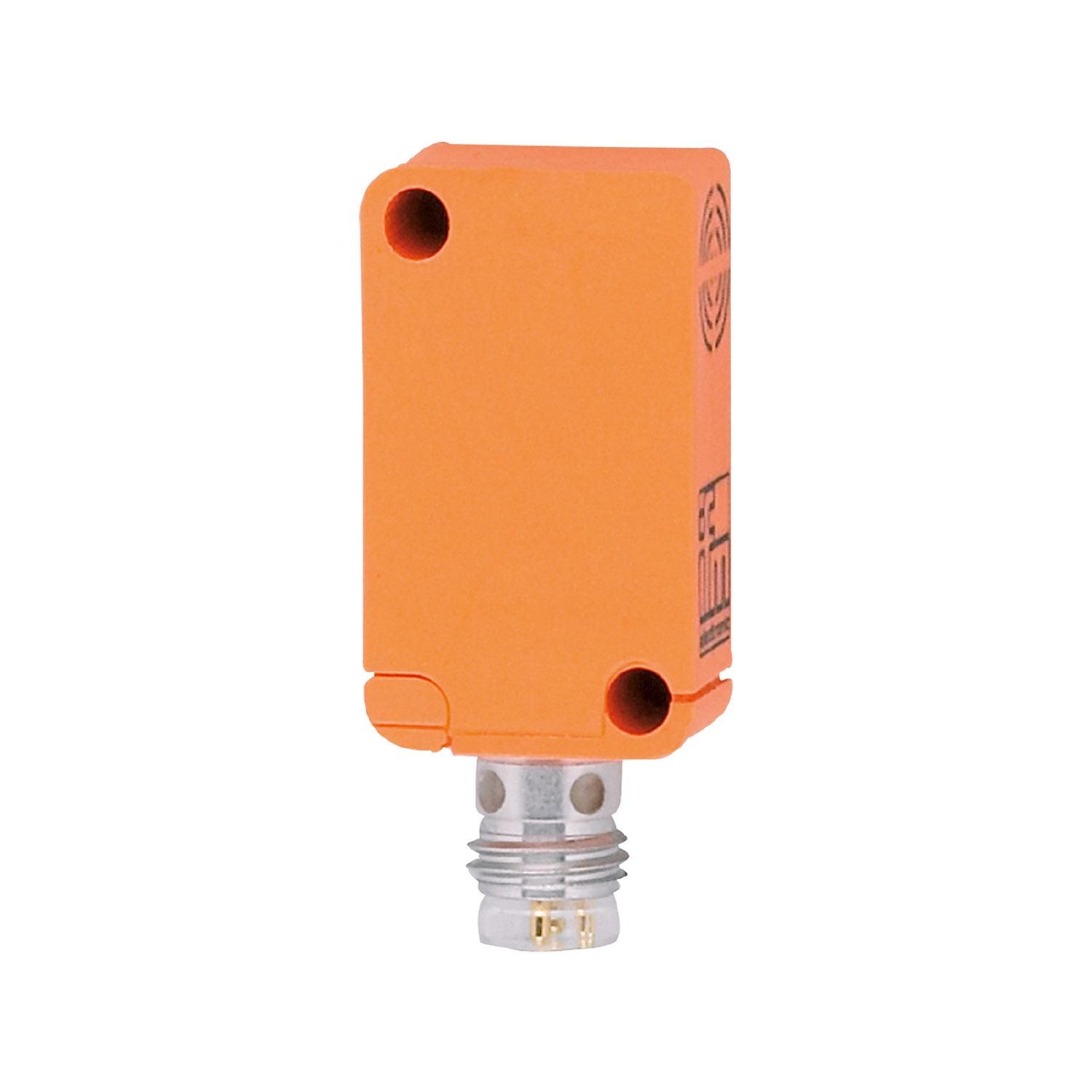

Long sensing range of 60 mm. High switching frequency for fast processes. Flush or non-flush mountable in non-magnetisable metals. Wide operating temperature range. Compact housing for use where space is restricted
Electrical design
PNP
Output function
normally closed
Sensing range [mm]
60;(referred to magnet M 4.0)
Housing
rectangular
Dimensions [mm]
28 x 10 x 16
Special feature
Gold-plated contacts
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 10
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
PNP
Output function
normally closed
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
5000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Sensing range [mm]
60;(referred to magnet M 4.0)
Accuracy / deviations
Hysteresis [% of Sr]
1...10
Operating conditions
Ambient temperature [°C]
-25...75
Protection
IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]
2847
Weight [g]
18
Housing
rectangular
Dimensions [mm]
28 x 10 x 16
Materials
housing: PBT orange
Displays / operating elements
Display
switching status
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M8; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MS5013-00 — 13.04.2023 —
